HAAS VF-4SS
HAAS - VF-4SS
2019
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- HAAS VF-4SS Milling machine

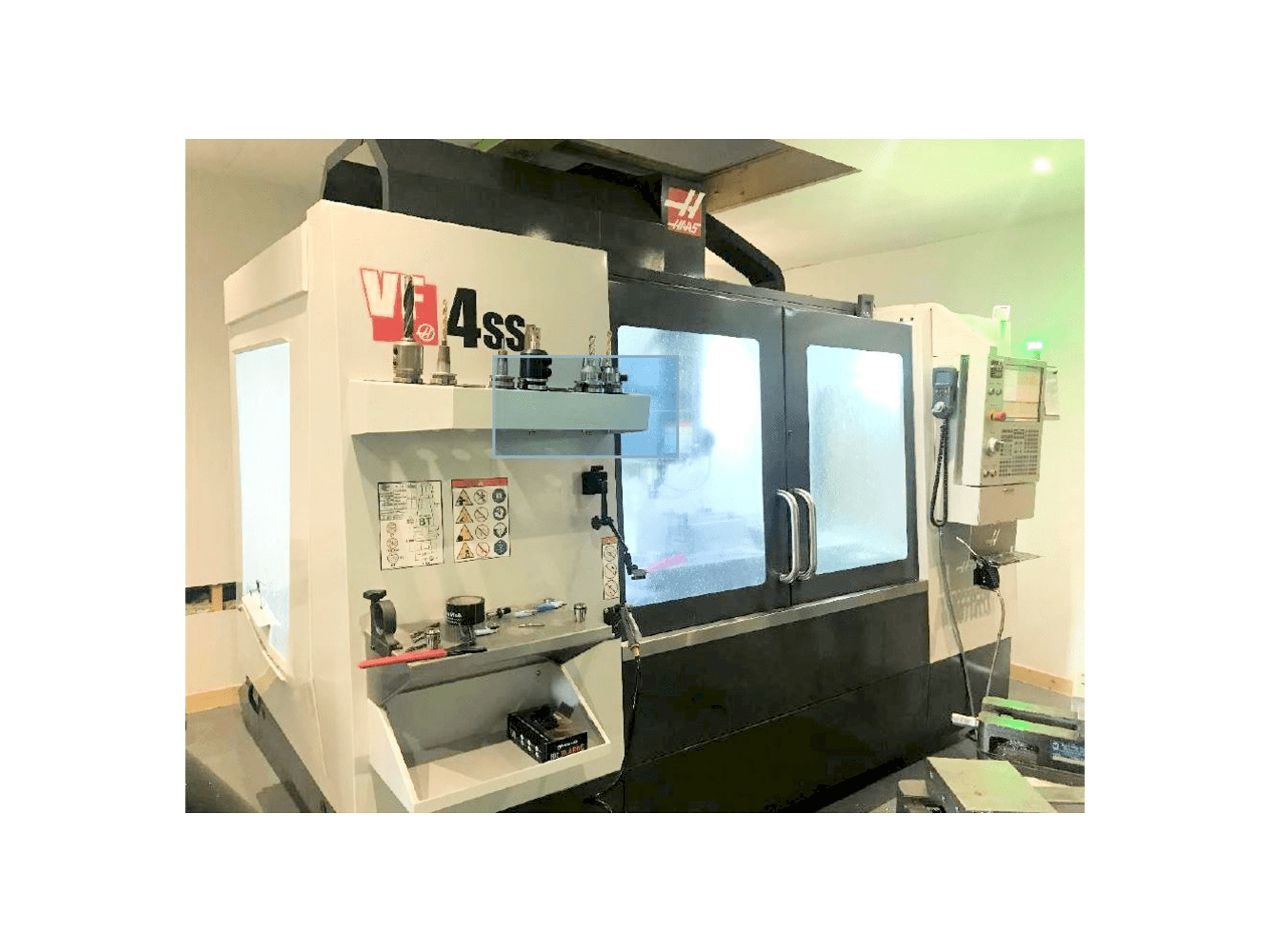

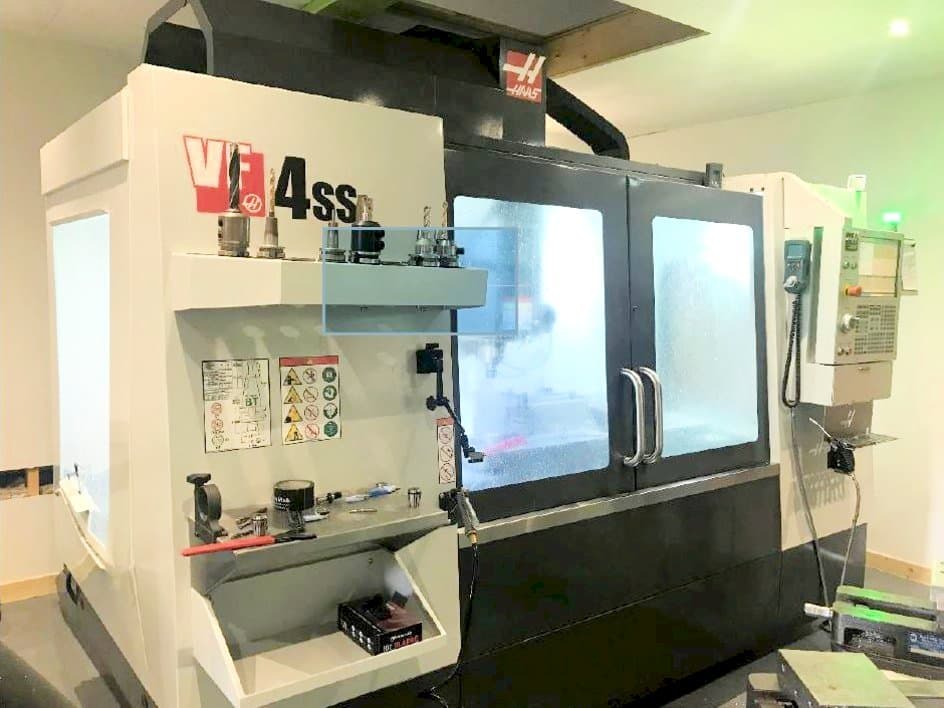

This HAAS VF-4SS Milling machine was built in 2019 in the United States. It is controlled by a HAAS control unit and has 3 axis. The machine has a spindle speed of 12000 rpm and is in very good condition, only used for cutting aluminum and plastics.
Overview
- brand: HAAS
- year: 2019
- MODEL: VF-4SS
- application type: Milling
- Location: United Kingdom
- machine type: Milling Machine
- availability: Sold
- control unit brand: Haas
- GINDUMAC ID: GB-MIL-HAA-2019-00001
Technical Information
General Data
- Measurements width: 3629 mm
- Measurements depth: 2794 mm
- Measurements height: 2985 mm
- Machine weight: 6033 kg
Control Unit
- Brand: Haas
Main drive
- Spindle speed range: 12000 1/MIN
- Spindle motor power: 22.4 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 1270 mm
- Y-AXIS Movement: 508 mm
- Z-AXIS Movement: 635 mm
Workpiece
- Workpiece weight: 794 kg
Table
- Outer length: 1324 mm
- Outer width: 457 mm
- Number of tslots: 5
- Distance between: 18 mm
Tools
- Slots in storage: 30
- Max weight: 5,4 kg
- Max tool diameter: 127 mm
- Max tool length: 330 mm
- Type of tool holder: BT 40
Additional Information
- Technical Machine Benefits:
- - Rapid feed rates 35. 6m/minute
- - Min-max height under spindle 107-742 mm
- - Wips system (wireless intuitive probing system)
- - Tool setter, spindle probe
- - Programmable coolant nozzle
- - Coolant
- - Usb port
- - Through spindle coolant
- - Swarf auger
- Qualitative Machine Benefits:
- - Very good condition
- - Only used for cutting aluminium and plastics
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
