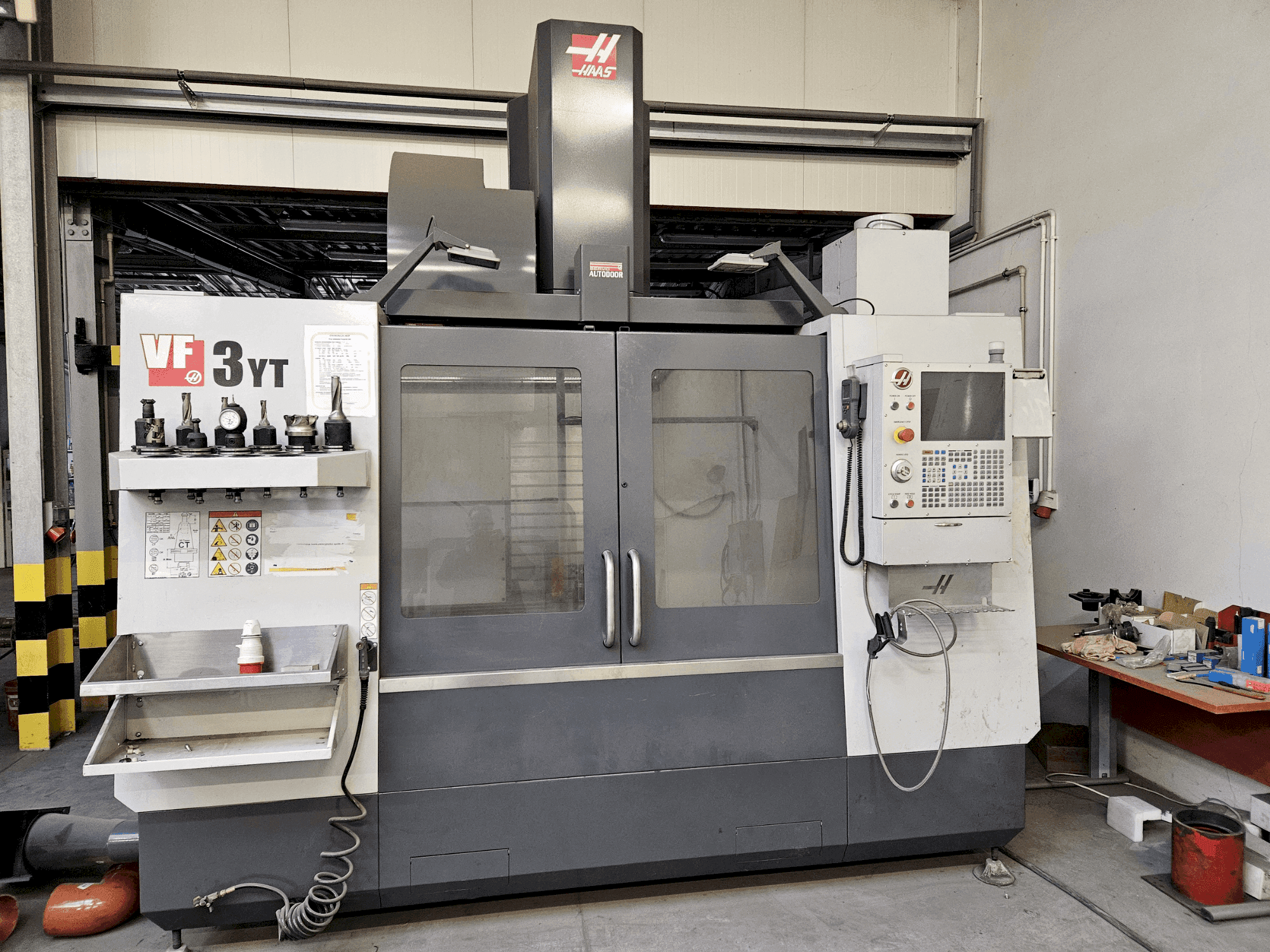

Front view of HAAS VF-3YT/50  machine

HAAS VF-3YT/50

HAAS - VF-3YT/50

2017

Rs. 7,134,350

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HAAS VF-3YT/50 Vertical Machining centre was manufactured in the year 2017 in the United States and has 238 production hours. It is equipped with a HAAS control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.

Overview

  • brand: HAAS
  • year: 2017
  • MODEL: VF-3YT/50
  • production hours: 238
  • application type: Milling
  • Location: Poland
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: HAAS
  • GINDUMAC ID: PL-MIL-HAA-2017-00001

Technical Information

General Data

  • Machine weight: 7212 kg

Control Unit

  • Brand: HAAS

Main drive

  • Spindle speed range: 7500 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1016 mm
  • Y-AXIS Movement: 660 mm
  • Z-AXIS Movement: 635 mm

Table

  • Outer length: 1372 mm
  • Outer width: 610 mm

Tools

  • Slots in storage: 30+1

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Cooling trough the spindle
      • - Spindle taper iso50, ct type
      • - Memory capacity 1 gb, network card
      • - Haasconnect – remote monitoring of machine working condition
      • - 15” lcd monitor and usb port
      • - Electronic handwheel
      • - Spindle cooling system
      • - Temperature compensation for lead screws
      • - Protective cabin with sliding front doors and side windows that can be tilted open
      • - 30-position magazine
    • Qualitative Machine Benefits:
      • - Screw chip conveyor
      • - Spindle taper air blow
      • - Thread cutting without compensation chuck
      • - Installation for compressed air connection
      • - Early power failure detection module
      • - Programmable coolant nozzle angle position
      • - Remote control pendant with lcd display /jog handle/
      • - Cooling system with pull-out coolant tank
      • - Automatic central lubrication system
      • - Wips-r wireless probing system for measuring tools in radius and length, for measuring and setting parts with measuring cycles. Includes so, macro, coord, and vps (visual programming system)

    Extra information

    • - -CT Spindle taper, CT type -ACF Additional 25 μm filtering system, essential for machining cast iron, aluminum, wood, phenolic resin-based plastics, and other dust-generating materials -TSC* Through-spindle cooling, high-pressure pump /21 bar, 22 l/min/ (ACF option required) -HIL Additional halogen chamber lighting -ENCL EXHAUST Oil mist extraction system. Can be connected to a ventilation network -WIFI Wireless network -TAB Air blast through spindle.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
