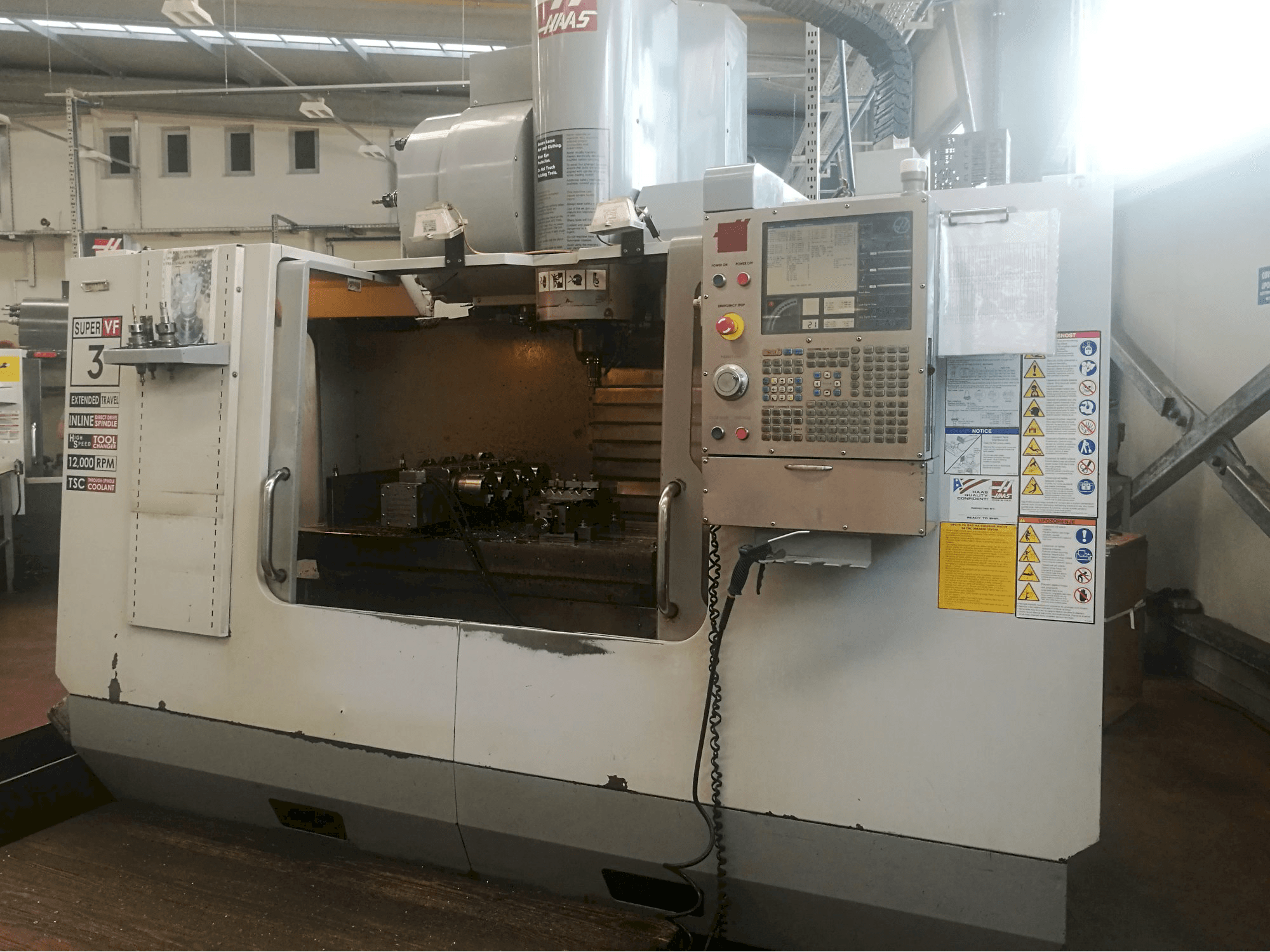

This American HAAS VF-3SSYTHE Vertical Machining Center from 2007 has a working record of 23000 production hours. Equipped with an HAAS Control unit, this efficient machine stands out for its high speed and its bigger table. This model is in excellent conditions, as It has been regularly mantained by HAAS.
Overview
- brand: HAAS
- year: 2007
- MODEL: VF-3SSYTHE
- production hours: 23000
- application type: Milling
- Location: Croatia
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HAAS
Technical Information - HAAS VF-3SSYTHE
General Data
- Measurements width: 3200 mm
- Measurements depth: 3000 mm
- Measurements height: 3200 mm
- Machine weight: 7140 kg
Control Unit
- CNC main language: English
- CNC language customizable: Yes
- Brand: HAAS
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/min
Movement
- X-AXIS Movement: 1016 mm
- Y-AXIS Movement: 660 mm
- Z-AXIS Movement: 635 mm
Workpiece
- Workpiece weight: 794 kg
Table
- Outer length: 1372 mm
- Outer width: 635 mm
Tools
- Max weight: 5.4 kg
- Max tool diameter: 64/127 mm
- Max tool length: 279 mm
Media
- Main electronic connection: 360 / 480 V
- Chip conveyor: Yes
- Internal cooling: Yes
Additional equipment
- - Automatic Tool Changer (24 Slots)
- - 4th Axis
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
