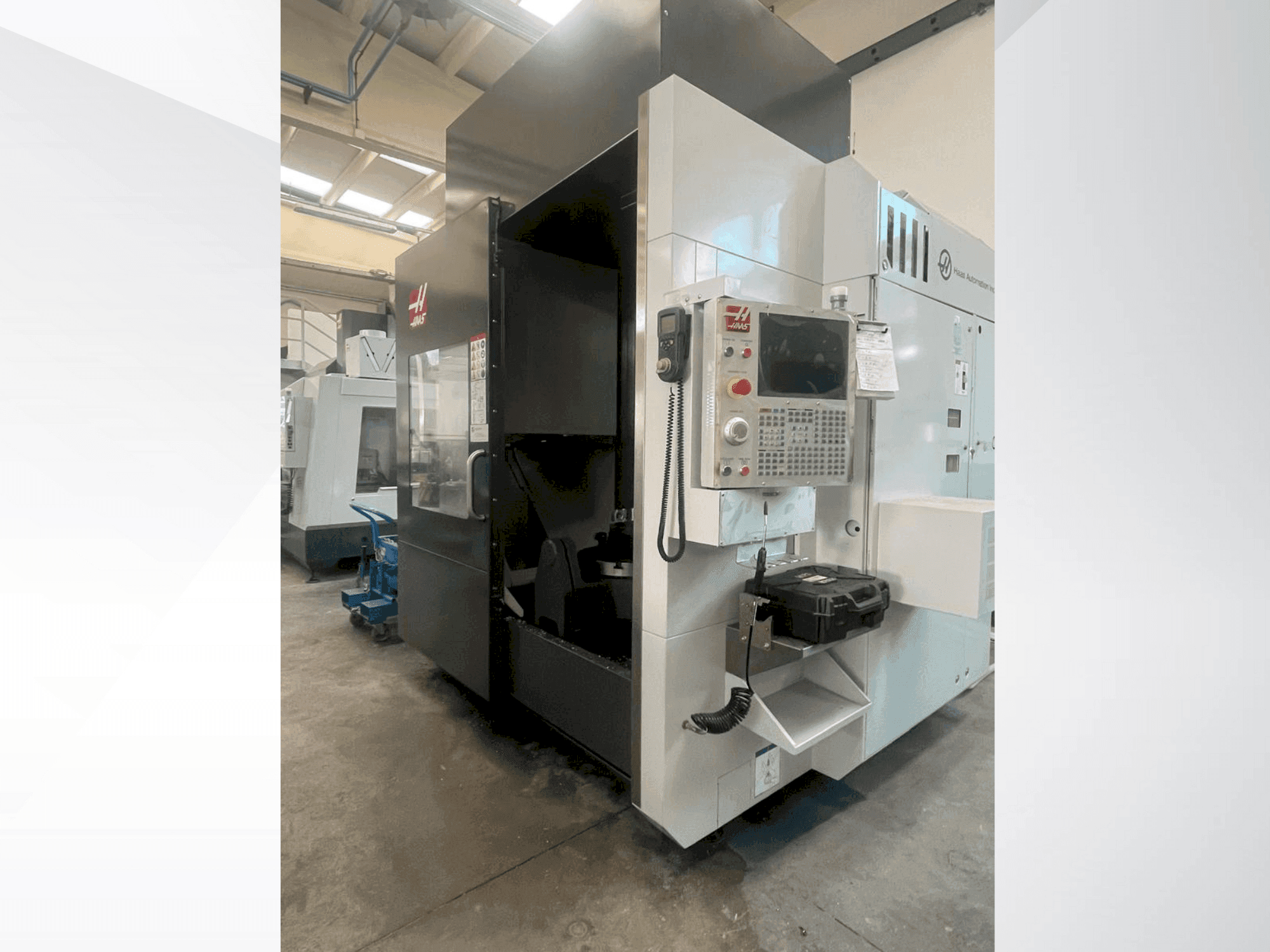

Front view of HAAS UMC750SS  machine

HAAS UMC750SS

HAAS - UMC750SS

2019

Rs. 10,306,400

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HAAS UMC750SS Vertical machining centre was manufactured in the year 2019 in the United States. It is equipped with a HAAS control unit with Ethernet interface. The machine disposes of a 1 GB of memory for programs, a 15” COLOR LCD monitor, a USB port with memory lock key and a power failure detection module. There are a lot of options fitted on the machine that can be included.

Overview

  • brand: HAAS
  • year: 2019
  • MODEL: UMC750SS
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: HAAS
  • GINDUMAC ID: IT-MIL-HAA-2019-00005

Technical Information

Control Unit

  • Brand: HAAS
  • Interface: Ethernet

Main drive

  • Number of axis: 5

Movement

  • X-AXIS Movement: 762mm
  • Y-AXIS Movement: 508mm
  • Z-AXIS Movement: 508mm

    Additional equipment

    • - Belt screw conveyor
    • - Coolant passage through the spindle 21 Bar
    • - Programmable coolant nozzle
    • - Cooling unit for CNC control cabinet
    • - HAAS fairing condensation and smoke exhaust system
    • - Automatic coolant replenishment system
    • - Oil skimmer for the liquid tank
    • - Auxiliary coolant filter system
    • - Work Table Light

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - With integrated high-speed two-axis rotary tilting table diameter 500 mm
        • - Cone ct40 din 69871
        • - 30 hp (22. 4 kw) vector drive 15,000 rpm.
        • - 40 + 1 lateral high speed tool changer
        • - Rapid feed 30. 5 m/min.
        • - High speed processing
        • - 15” color lcd monitor
        • - Power failure detection module
        • - Rigid tapping and 284 liter cooling system
        • - 1 gb of memory for programs // usb port, memory lock key
      • Qualitative Machine Benefits:
        • - Intuitive wireless probe system
        • - Touchscreen remote electronic handwheel with color display

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
