HAAS TM-3P Vertical Machining Center

Show in original language

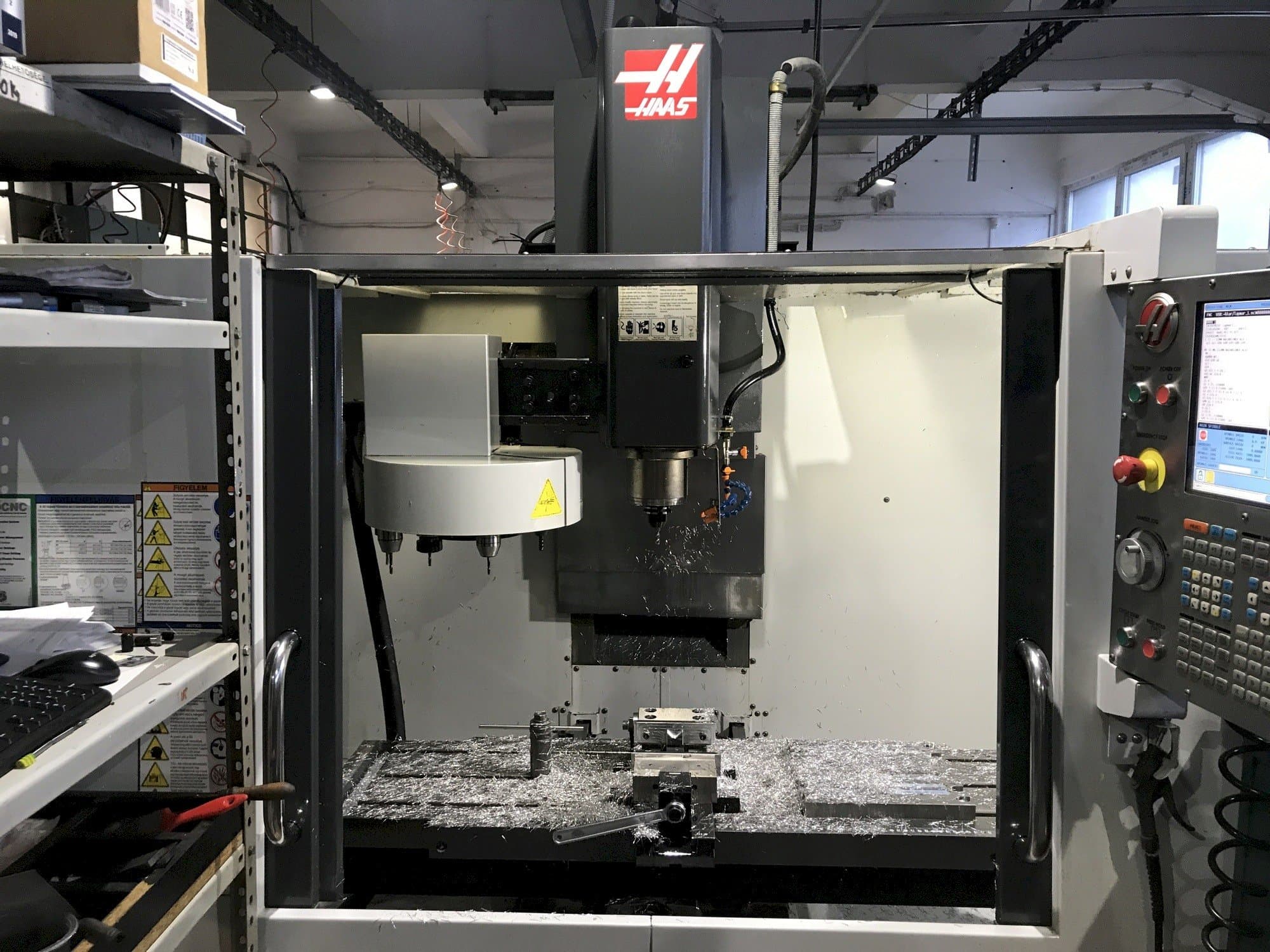

This HAAS TM-3P Vertical Machining Center was manufactured in the United States in 2011 and counts with only 1045 production hours. This machine is capable of working with a spindle speed up to 6000 rpm. It incorporates a 10 tool capacity.

Overview

brand: HAAS
year: 2011
MODEL: TM-3P
production hours: 1045
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS TM-3P

General Data

Measurements width: 3310 mm
Measurements depth: 2240 mm
Measurements height: 2490 mm
Machine weight: 2813 kg

Control Unit

Model: M130
Brand: HAAS

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 5.6 kW
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
X-AXIS Rapid traverse: 10.2 m/min
Y-AXIS Movement: 508 mm
Y-AXIS Rapid traverse: 10.2 m/min
Z-AXIS Movement: 406 mm
Z-AXIS Rapid traverse: 10.2 m/min

Table

Outer length: 1467 mm
Outer width: 368 mm
Number of tslots: 3
Table load: 454 kg

Tools

Max weight: 5.4 kg
Max tool diameter: 89 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 10 tool capacity
- - 40 taper

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
