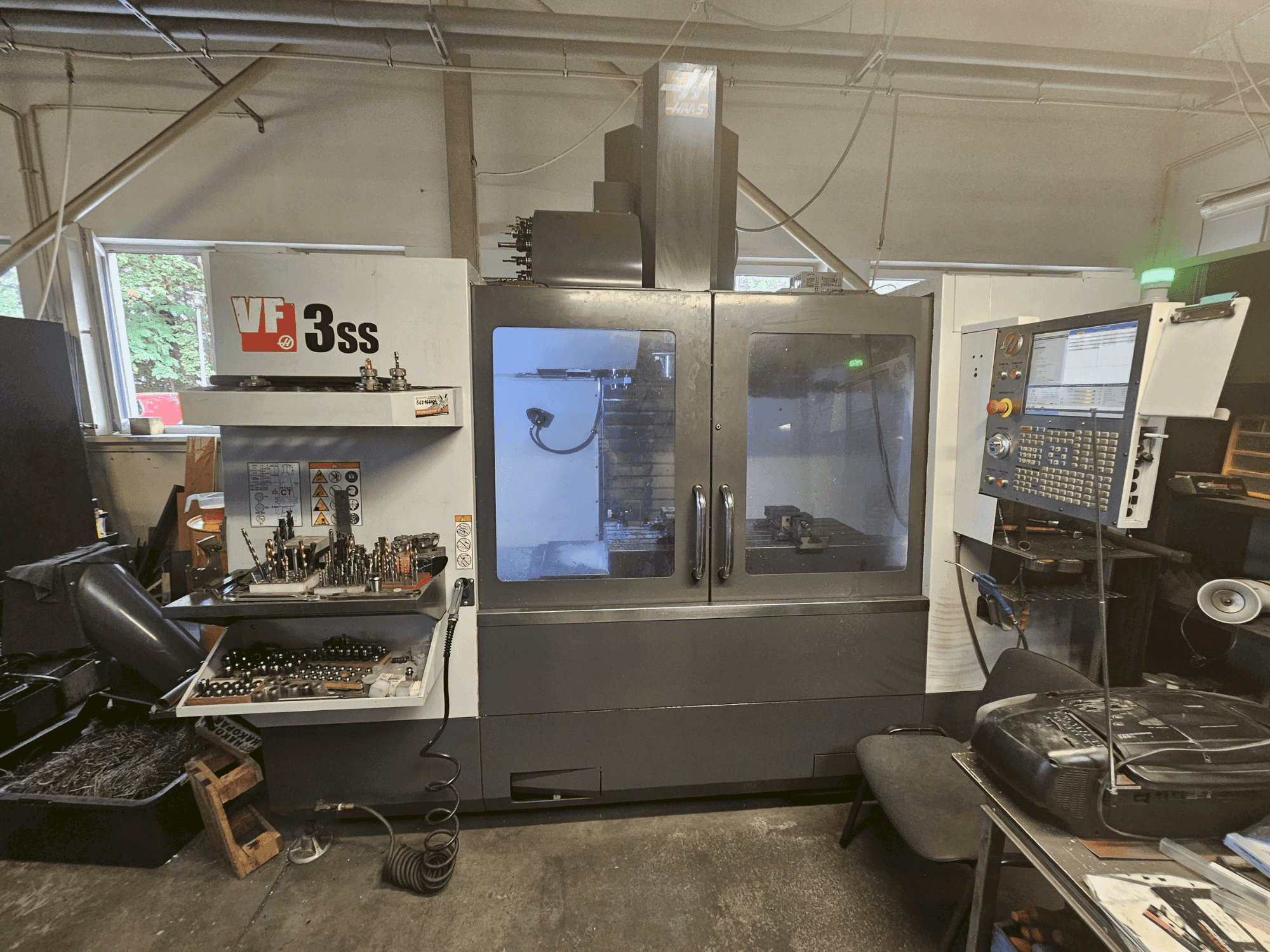

This 4-axis HAAS VF-3SS vertical machining center was manufactured in 2017. It features a 1016 mm X-axis travel, 508 mm Y-axis travel, and 635 mm Z-axis travel. The table supports up to 794 kg, with dimensions of 1219 mm by 457 mm. It includes 24 tool pockets and achieves a maximum spindle speed of 12,000 RPM. Consider the opportunity to buy this HAAS VF-3SS vertical machining center. Contact us for more information about this machine.
Overview
- brand: HAAS
- year: 2017
- MODEL: HAAS VF-3SS
- production hours: 4757
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS HAAS VF-3SS
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Depth: 2235 mm
- Machine Height: 2692 mm
- Machine Weight: 5670 kg
Movement
- Number of Axes: 4
- X-axis Travel: 1016 mm
- Y-axis Travel: 508 mm
- Z-axis Travel: 635 mm
Technical Specification
- Max. Tool Weight: 5.4 kg
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
Table size: 1219 mm (length) x 457 mm (width)
Number of tool pockets: 24
Max tool diameter (side positions empty): 127 mm
Max spindle torque: 122 nm
Power supply: 3x400v, 50 hz
Extra Information
This is 3+1 axis machine and HRT 210 rotary axis is included in the offer
Cooling through-spindle 21 bar
working hours: power ON: 14270h, cutting: 4757h
Options included
WIPS-R – Wireless probing system
P-COOL – Programmable coolant nozzle positioning
AUGER – Screw-type chip conveyor
ACF – Additional 25 µm filtration system
TSC – Through-spindle coolant system, high-pressure pump (21 bar, 22 l/min)
4AXD – Machine preparation (interfaces, cabling) for connecting a rotary table (without the table itself)
HRT210 – Haas HRT 210 rotary table with a 210 mm diameter plate
HRT210 HRT-FIX-KIT – Mounting kit for installing a rotary or tilting rotary table
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
