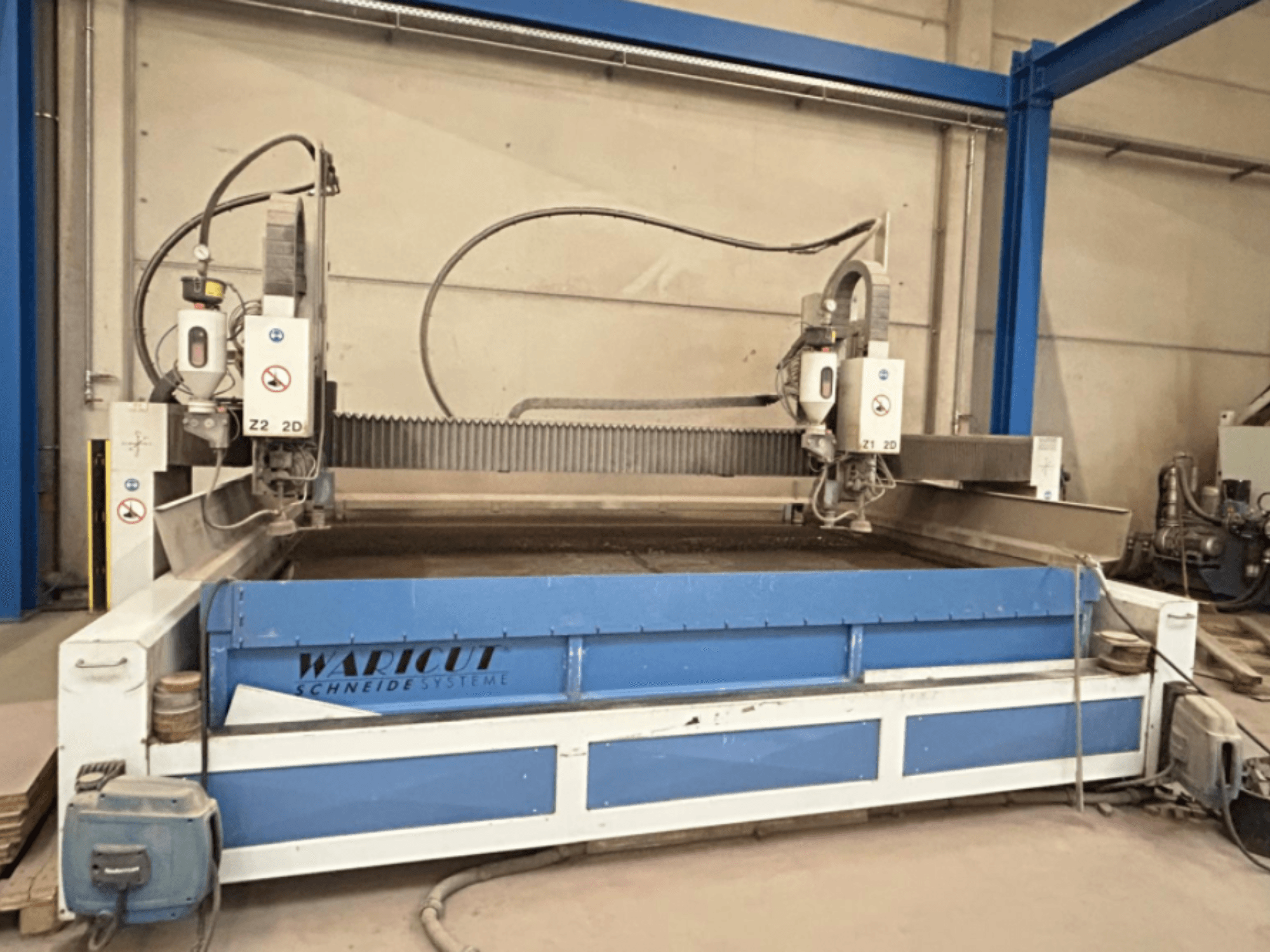

Water jet cutting machine by Waricut, front view; features dual cutting heads and blue work surface in a workshop setting.
Water jet cutting machine by Waricut, front view; features dual cutting heads and blue work surface in a workshop setting.

H.G. Ridder - Waricut HWE 3020 2 2 D Retrofit DE-OTH-HGR-2023-00001

Rs. 18,194,296
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This H.G. Ridder Waricut HWE 3020 2 2 D Retrofit was manufactured in 2023. It features two cutting heads, each capable of a maximum travel of 2,450 mm. Key specifications include a travel range of 2,050 mm (X) and 3,050 mm (Y), with a Z-axis travel of 200 mm. It boasts a maximum linear speed of 20 m/min and an installed drive power of 45 kW. Contact us for more information about this waterjet cutting machine.

Overview

  • brand: H.G. Ridder
  • year: 2023
  • MODEL: Waricut HWE 3020 2 2 D Retrofit
  • application type: Cutting
  • Location: Germany
  • machine type: Waterjet Cutting Machine

Technical Information - H.G. Ridder Waricut HWE 3020 2 2 D Retrofit

Dimensions

  • Machine Height: 1600 mm
  • Machine Length: 1800 mm

Movement

  • X-axis Travel: 2050 mm
  • Y-axis Travel: 3050 mm
  • Z-axis Travel: 200 mm

Technical Specification

  • Spindle Power: 45 kW
  • Spindle Speed: 1800 RPM

Additional Information

  • Cutting heads: 2

  • Maximum travel per head with two cutting heads: 2,450 mm

  • Cutting head: Z-axis CNC, sD version

  • Manual cutting head adjustment (Y): ±45°

  • Manual cutting head adjustment (X): ±10°

  • Position uncertainty P: < ±0.050 mm

  • Mean position variation Ps: < ±0.030 mm

  • Maximum linear speed: 20 m/min

  • Minimum water pressure: 3 bar

  • Maximum water temperature: 40°C

  • Flow rate: 0.7–6.4 l/min

  • Design pressure: max. 3,800 bar

Additional equipment

  • Pump

  • Sludge removal system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
