Thank you for your visit

This machine was recently sold.

Browse similar machines

Goodway - SW 42PL-TUR-GOO-2014-00002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

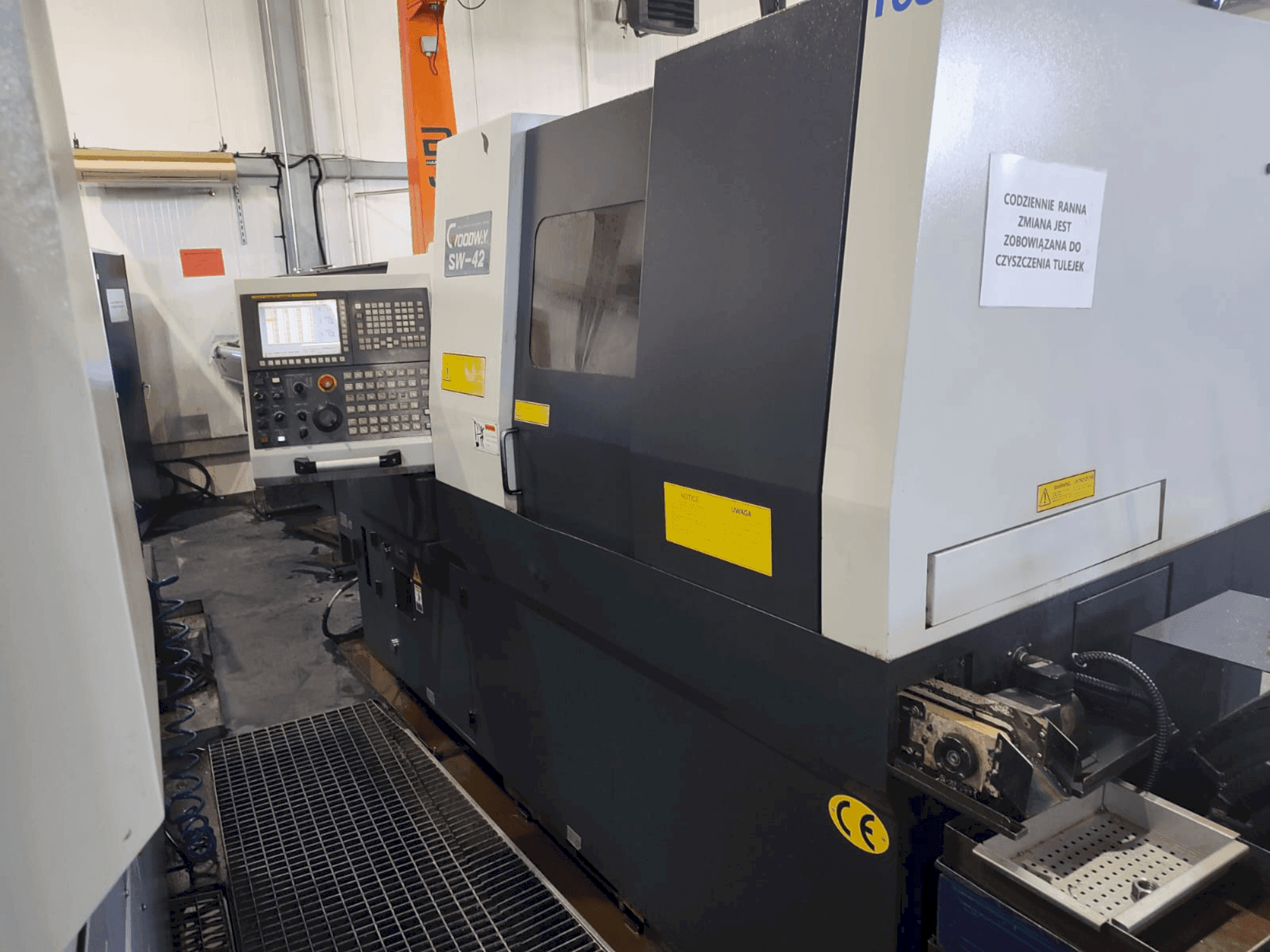

This 7-axis Goodway SW 42 swiss type turning machine was manufactured in 2014. Ideal for precision and complex machining tasks, it offers advanced functionality in a compact design. Consider the opportunity to buy this Goodway SW 42 swiss type turning machine. Contact us for more information.

Overview

  • brand: Goodway
  • year: 2014
  • MODEL: SW 42
  • application type: Turning
  • Location: Poland
  • machine type: Swiss Type Turning Machine
  • control unit brand: FANUC

Technical Information - Goodway SW 42

Control Unit

  • Control Brand: FANUC
  • Control Model: Series 31i model B

Dimensions

  • Machine Depth: 2950 mm
  • Machine Height: 2150 mm
  • Machine Weight: 3300 kg

Movement

  • Number of Axes: 7

Technical Specification

  • Spindle Power: 5.5 kW
  • Spindle Speed: 6000 RPM

Additional Information

Additional equipment

  • High-pressure cooling system
  • Parts conveyor belt

Machine Benefits

Technical Machine Benefits

  • Turning diameter over bed: 42 mm / turning diameter over cross slide: 42 mm / turning length: 110 mm
  • Total power consumption: 25 kva
  • 7 axes: x, z, y, c, z2, x2, c2
  • 5-position tool holder: 20 x 20 mm / 5-position drilling holder
  • 4 driven cross drills: max. 6000 rpm / 4 driven backworking tools: max. 5000 rpm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
