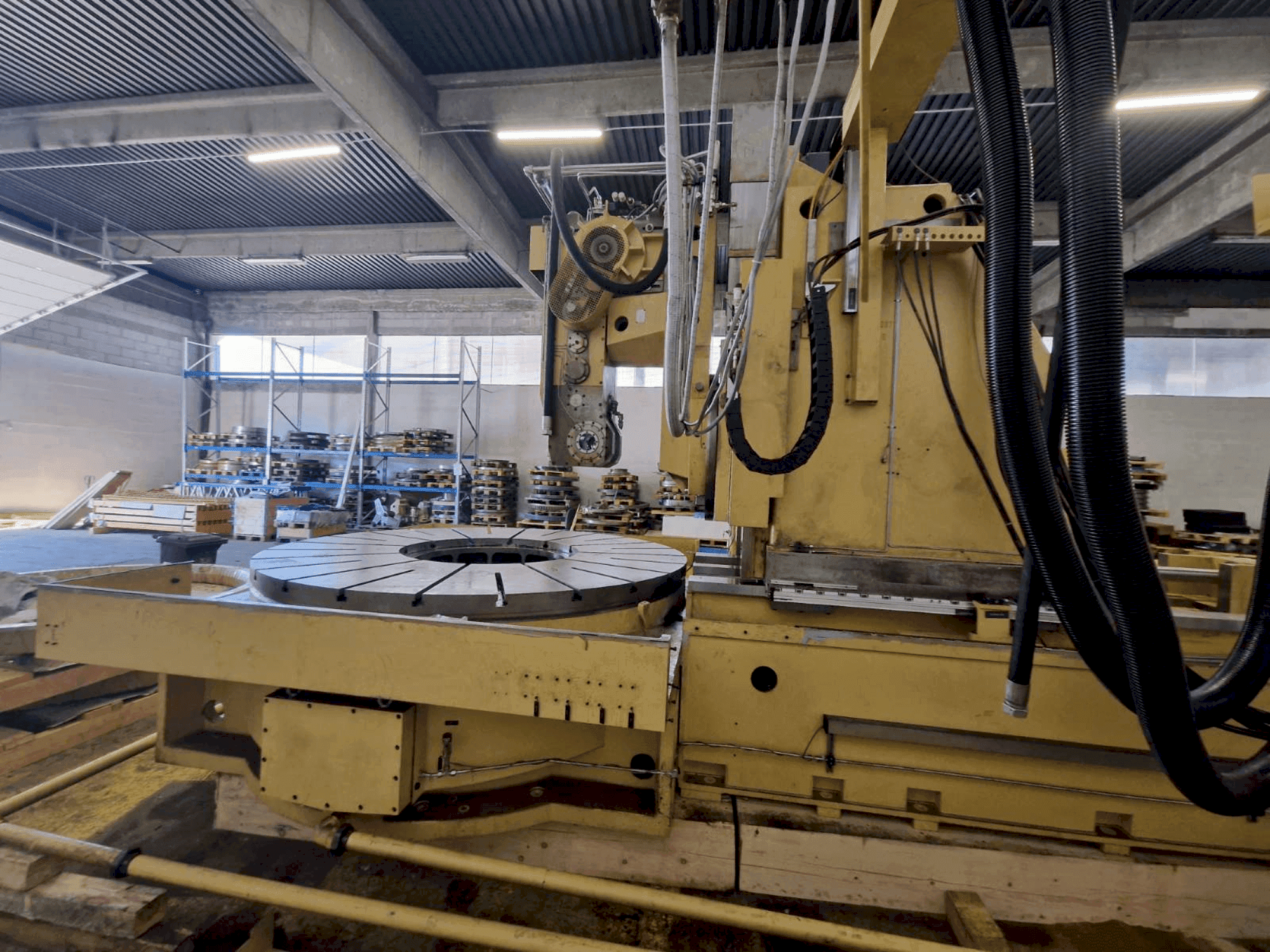

This 5-axis CNC milling machine manufactured in 2007 features a Siemens SINUMERIK 840 D controller with electronic gear and integrated safety functions. It can handle workpieces up to 2800 mm in diameter and offers motorized milling heads with a swivel range of +30/-45 degrees. Ideal for both internal and external gears, consider the opportunity to buy this Gleason Pfauter P 2800 CNC milling machine. Contact us for more information about this machine.
Overview
- brand: Gleason PFAUTER
- year: 2007
- MODEL: P 2800
- application type: Other Machine Tools
- Location: Slovenia
- machine type: Machine Tool
- control unit brand: SIEMENS
Technical Information - Gleason PFAUTER P 2800
Control Unit
- Control Brand: SIEMENS
- Control Model: SIEMENS 840D
Additional Information
Additional equipment
- Siemens Path Control SINUMERIK 840 D, featuring 5 axes, 1 spindle, electronic gear, and integrated safety functions
- Motorized Milling Heads for internal and external gears with a swivel range of +30 / -45 degrees
- External Gears: Min. Diameter: 950 mm / Max. Diameter: 2800 mm
- Cutter Arbor Cone: HSK-B160 (Hollow Shank Taper According to DIN 69063)
Machine Benefits
Technical Machine Benefits
- Nominal workpiece diameter: 2800 mm
- Table diameter: 2500 mm / pitch wheel diameter: 2200 mm / table bore diameter: 800 mm / table bore depth: 875 mm
- Smallest/largest distance between milling cutter and workpiece axis: 600 mm / 1735 mm / largest axial slide path: 1000 mm /largest milling cutter displacement path: 300 mm
- Min. /max. Wheelbase for internal gears: 280 mm / 1820 mm / min. Workpiece inner diameter: approx. 1000 mm for internal gears / max. Workpiece ring thickness: 240 mm for internal gears / max. Workpiece width for internal gears: 470 mm
- Largest champable hob diameter: 350 mm / largest champable hob length: 375 mm
- Machine nominal module - hobbing: approx. 20 mm gear / machine nominal module - milling: approx. 30 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
