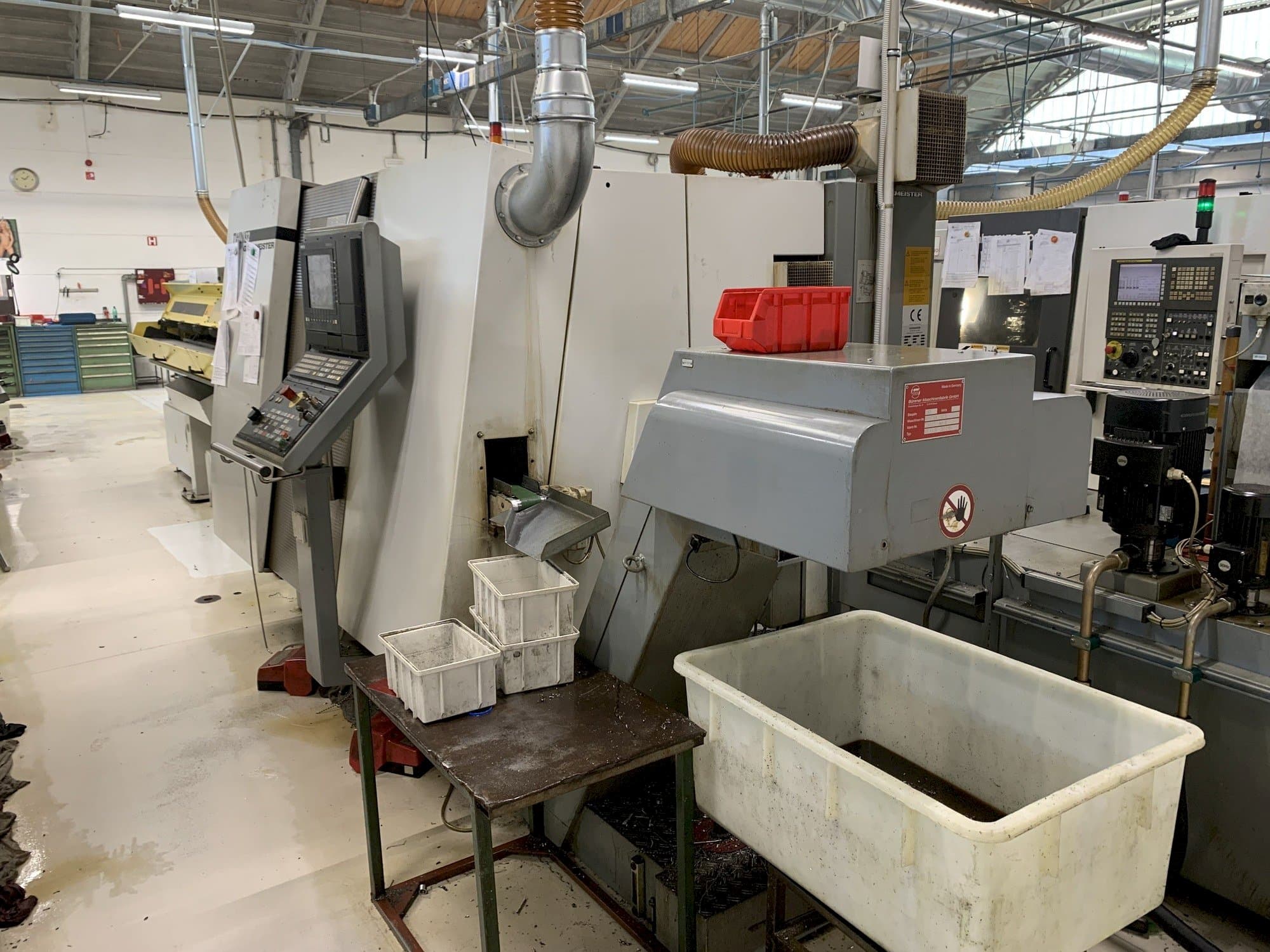

Front view of Gildemeister Twin 32 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister Twin 32

Photo Gallery

Gildemeister - Twin 32SI-TUR-GIL-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Gildemeister Twin 32 Lathe machine

Show in original language

This Gildemeister Twin 32 Lathe machine was built in Germany in 2001. This machine is operated through a Siemens Sinumerik 840D control unit. It works with a spindle speed up to 8000 rpm. It includes a Barload magazine FMB as additional equipment. The machine is in very good condition.

Overview

brand: Gildemeister
year: 2001
MODEL: Twin 32
production hours: 38000
application type: Turning
Location: Slovenia
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - Gildemeister Twin 32

General Data

Machine weight: 6000 kg

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Main drive

Number of spindles: 2
Spindle speed range: 8000 1/MIN
Number of axis: 7

Movement

X-AXIS Movement: 220 mm
Y-AXIS Movement: +- 50 mm
Z-AXIS Movement: 320 mm

Turret

Number of turrets: 2

Media

Power consumption: 50 kva

Additional equipment

- Barload magazine FMB

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle to spindle distance: 580 mm
- - Spindle 1 bar diameter max. : 36 mm
- - Spindle 2 bar diameter max. : 36 mm
- - Slide 1 (top) plan path x / longitudinal path z: 220/ 320 mm
- - Slide 2 (low) plan path x / longitudinal path z: 120/ 345 mm
- - Slide 2 (low) rapid traverse x / y / z: 30/30 m / min
- - Slide 1 (top) rapid traverse x / y / z: 30/15/30 m / min
Qualitative Machine Benefits:
- - Good condition
- - Only oil has been used as coolant
- - All books and manual
- - 20x fixed tool holders + 20x live tool holders
- - C axis on both spindles
- - Sub spindle high pressure coolant cleaning
- - High pressure coolant pumps with coolant filtration
- - Live tools on both turrets
- - Linaer x axis for high precision
- - Hainbuch bzi 42 collets clamping system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
