Gildemeister CTV 250

Photo Gallery

Gildemeister - CTV 250NL-TUR-GIL-2004-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Gildemeister CTV 250 For Sale | gindumac.com

Show in original language

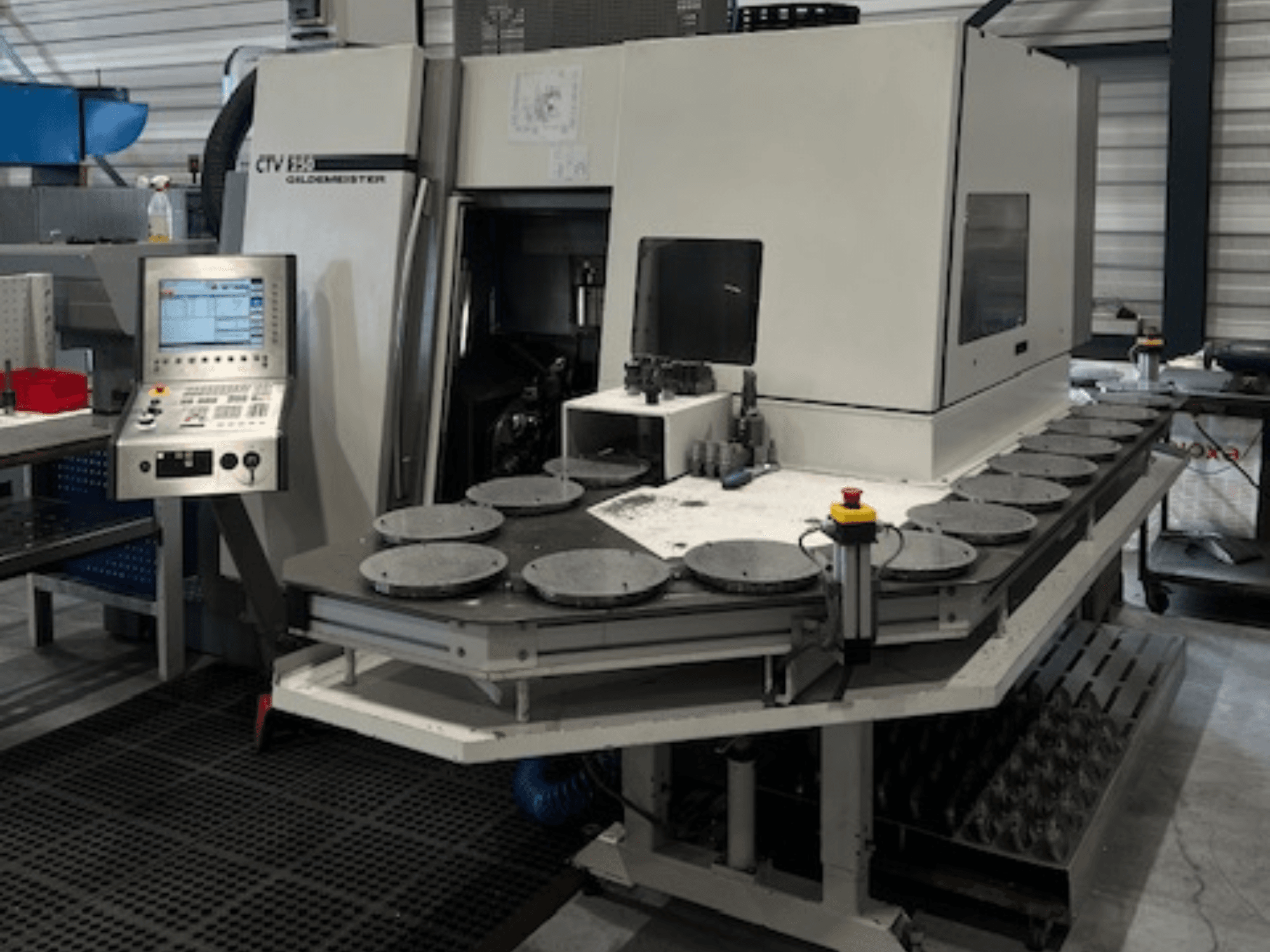

This 4-axis Gildemeister CTV 250 vertical turning machine was manufactured in 2004. It features a Siemens 840D Power Line control, a spindle speed up to 5,000 rpm, and a spindle motor power of 20 kW. The machine includes a turret with 12 tool positions, driven tools, a C-axis, and a high-pressure pump. Consider the opportunity to buy this Gildemeister CTV 250 vertical turning machine. Contact us for more information about this machine.

Overview

brand: Gildemeister
year: 2004
MODEL: CTV 250
production hours: 20581
application type: Turning
Location: Netherlands
machine type: Vertical Turning Machine
control unit brand: SIEMENS

Technical Information - Gildemeister CTV 250

Control Unit

Control Brand: SIEMENS
Control Model: 840D Power Line

Dimensions

Machine Weight: 8000 kg

Movement

Number of Axes: 3
X-axis Travel: 650 mm
Y-axis Travel: 50 mm
Z-axis Travel: 300 mm

Technical Specification

Driven Tools: Yes
Spindle Power: 20 kW
Spindle Speed: 5000 RPM
Taper Size: VDI 40

Additional Information

Turret: 1 turret, 12 tool positions
Tool holder: VDI 40
Driven tools: yes, up to 4,000 rpm
Tool drive power: ~11.7 kW
Chuck/turning diameter: Ø 250 mm (Kitagawa B210)
C-axis: yes

Additional equipment

Measuring probe
High-pressure coolant pump (20 bar, 500 L, double filter)
Immersion cooler
Chip conveyor (listed as “clamp conveyor”)
Electric exhaust/mist collector (LTA)
Drip/collection tray under the machine
Pallet loading station (EWAB) on the right
Kitagawa B210 3-jaw chuck

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
