+GF+ Agie Charmilles Form E600

Photo Gallery

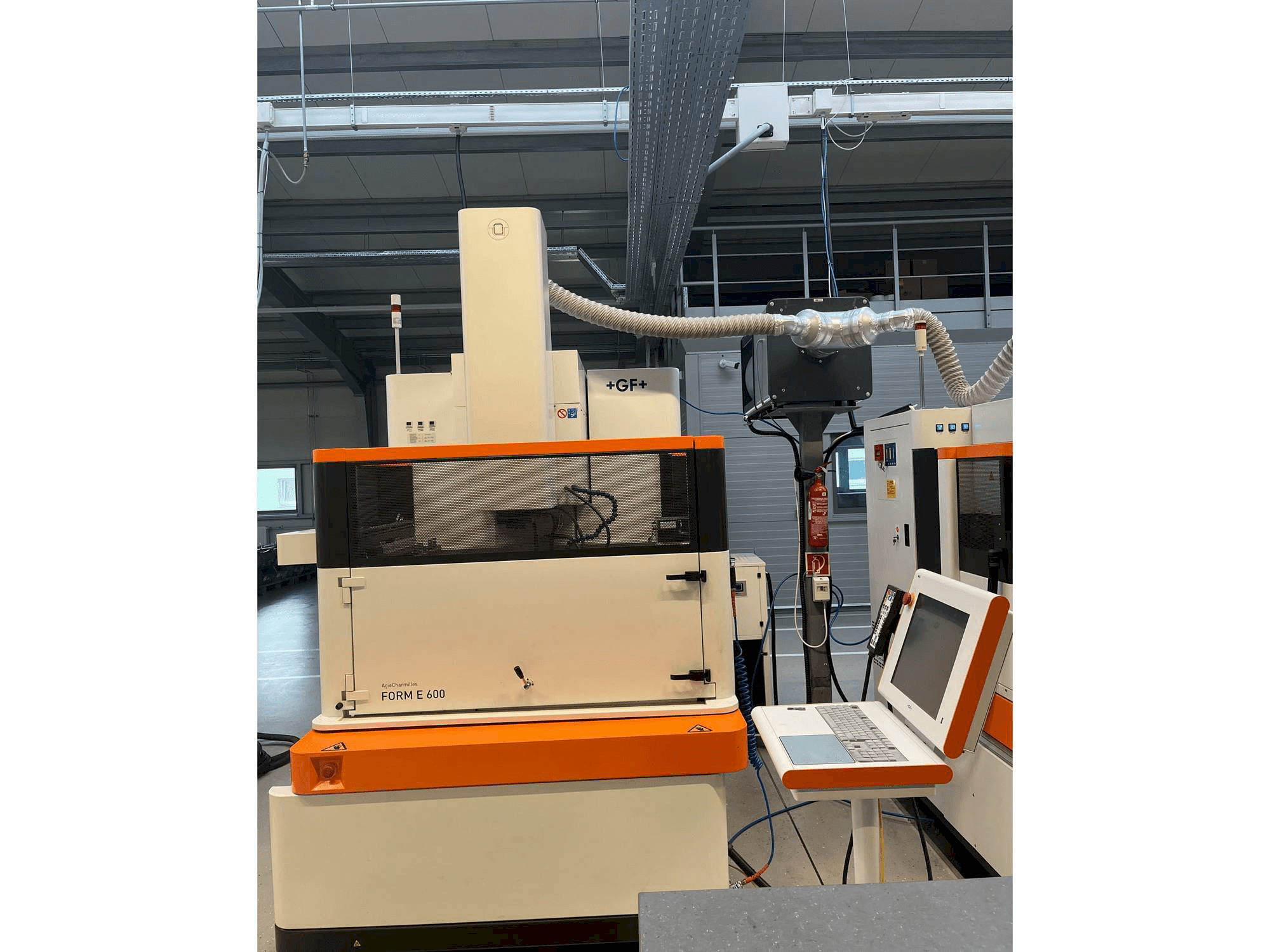

+GF+ - Agie Charmilles Form E600HU-EDM-GFX-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
GF Agie Charmilles Form E600 Erosion machine

Show in original language

This GF Agie Charmilles Form E600 Erosion machine was manufactured in the year 2018 in China. It is equipped with a GF AC FORM HMI control unit.

Overview

brand: +GF+
year: 2018
MODEL: Agie Charmilles Form E600
production hours: 2000
application type: EDM
Location: Hungary
machine type: Die-Sinking EDM Machine

Technical Information - +GF+ Agie Charmilles Form E600

Dimensions

Machine Depth: 1600 mm
Machine Height: 2700 mm
Machine Weight: 4150 kg
Table Length: 800 mm
Table Load: 1000 kg
Table Width: 600 mm

Movement

X-axis Travel: 600 mm
Y-axis Travel: 400 mm
Z-axis Travel: 400 mm

Additional Information

Additional equipment

Control system: AC FORM HMI with 17" touch screen
Linear tool changer capacity: 6 electrodes / Max electrode size: 75 mm diameter, 280 mm length / 4-position electrode changer
Best surface finish: Ra = 0.2 μm
Erowa ITS-50 automatic chuck
Glass scales on X/Y axes
Fire protection system
Optimal ambient temperature: 20°C / Relative humidity: < 80%

Machine Benefits

Technical Machine Benefits

Positioning resolution: 0. 1 μm
Max workpiece size: 1000 x 700 x 400 mm
Dielectric tank capacity: 650 l
Generator current: 140 a
C-axis max electrode weight: 25 kg / c-axis max rotation speed: 80 rpm
Integrated c-axis
Filtration: 6 built-in filter cartridges
Power supply: 3 x 400v, 50/60 hz
Compressed air: 6-8 bar
Lan connection: 10/100 mbit/sec

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
