Thank you for your visit

This machine was recently sold.

Browse similar machines

Friggi - VTS 4100 X 1500 X 1200 HSDE-SAW-FRI-2007-00001

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

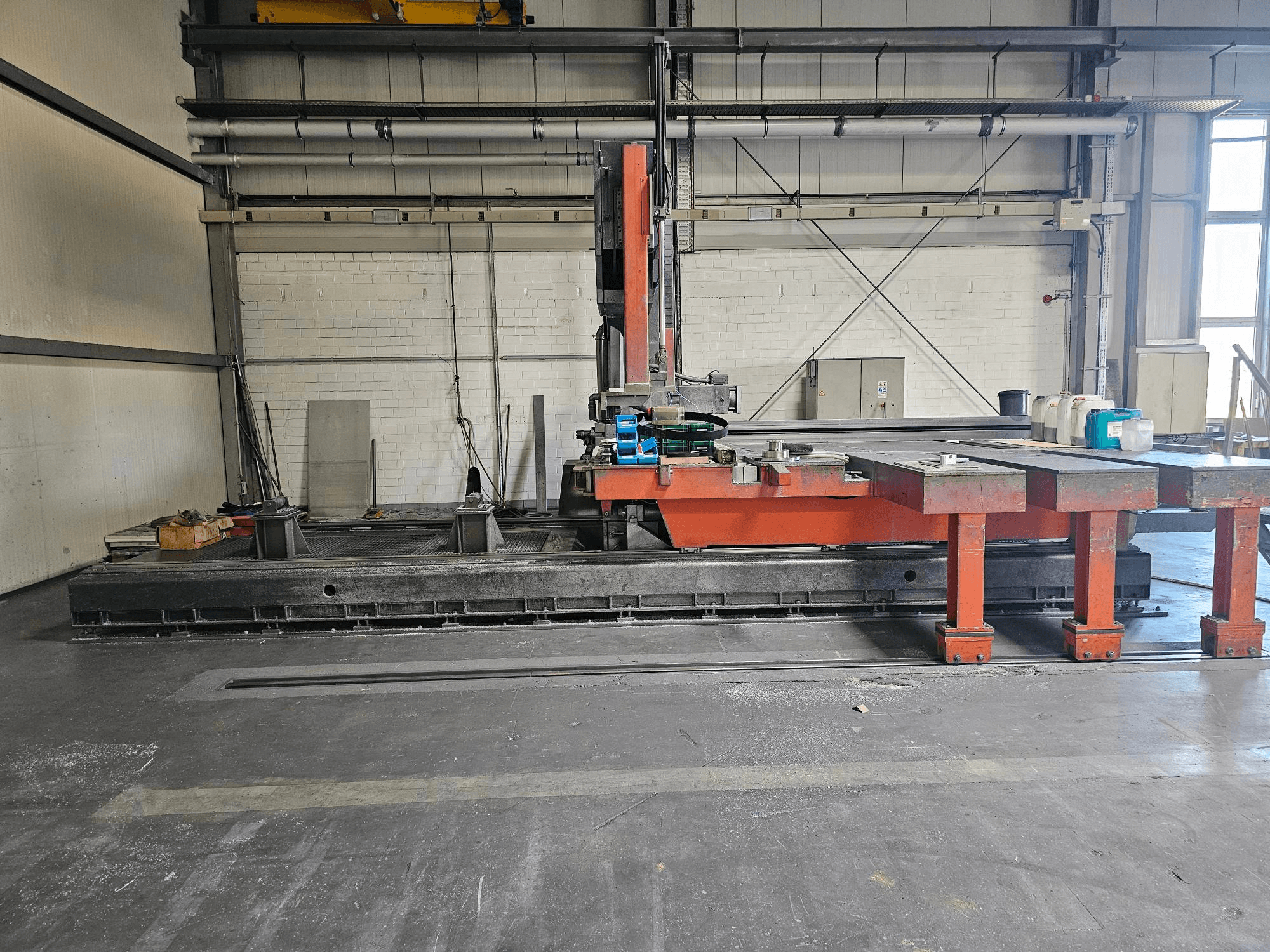

This 3-axis Friggi VTS 4100 X 1500 X 1200 HS was manufactured in 2007. It features a maximum blade length of 11470 mm and blade dimensions of 41 x 1.3 mm. The band rotation speed ranges from 400 to 2300 m/min, and the blade motor power is 45 KW. If you are looking to get high-quality cutting capabilities, consider the Friggi VTS 4100 X 1500 X 1200 HS machine we have for sale.Contact us for more information.

Overview

  • brand: Friggi
  • year: 2007
  • MODEL: VTS 4100 X 1500 X 1200 HS
  • application type: Sawing
  • Location: Germany
  • machine type: Metal Band Saw

Technical Information - Friggi VTS 4100 X 1500 X 1200 HS

Dimensions

  • Machine Weight: 14750 kg

Additional Information

Electrical

  • Supply voltage: 400 V

  • Phases: 3

  • Frequency: 50 Hz

  • Installed power: 58 kW

Cutting and dimensions

  • Cutting capacity (L × W × H): 4100 × 1500 × 1200 mm

  • Max. blade length: 11,470 mm

  • Blade dimensions: 41 × 1.3 mm

  • Band rotation speed: 400–2300 m/min

  • Blade motor power: 45 kW

  • Flywheel diameter: 1000 mm

  • Table axis: 4100 mm

  • Stop axis: 1500 mm

  • Band axis: 1200 mm

  • Table feed speed (manual cycle): up to 5000 mm/min

Hydraulic system

  • Reservoir capacity: 150 L

  • Pump flow rate: 40 L/min

  • Pump motor power: 9 kW

Color coding

  • Structure: RAL 7039

  • Flywheel covers: RAL 7021

  • Moving parts: RAL 2004

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
