FORMAT4 Tempora F800 60.12/2 E

Photo Gallery

FORMAT4 - Tempora F800 60.12/2 EPL-EDG-FOR-2022-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used FORMAT4 Tempora F800 60.12/2 E | Edgebander

Show in original language

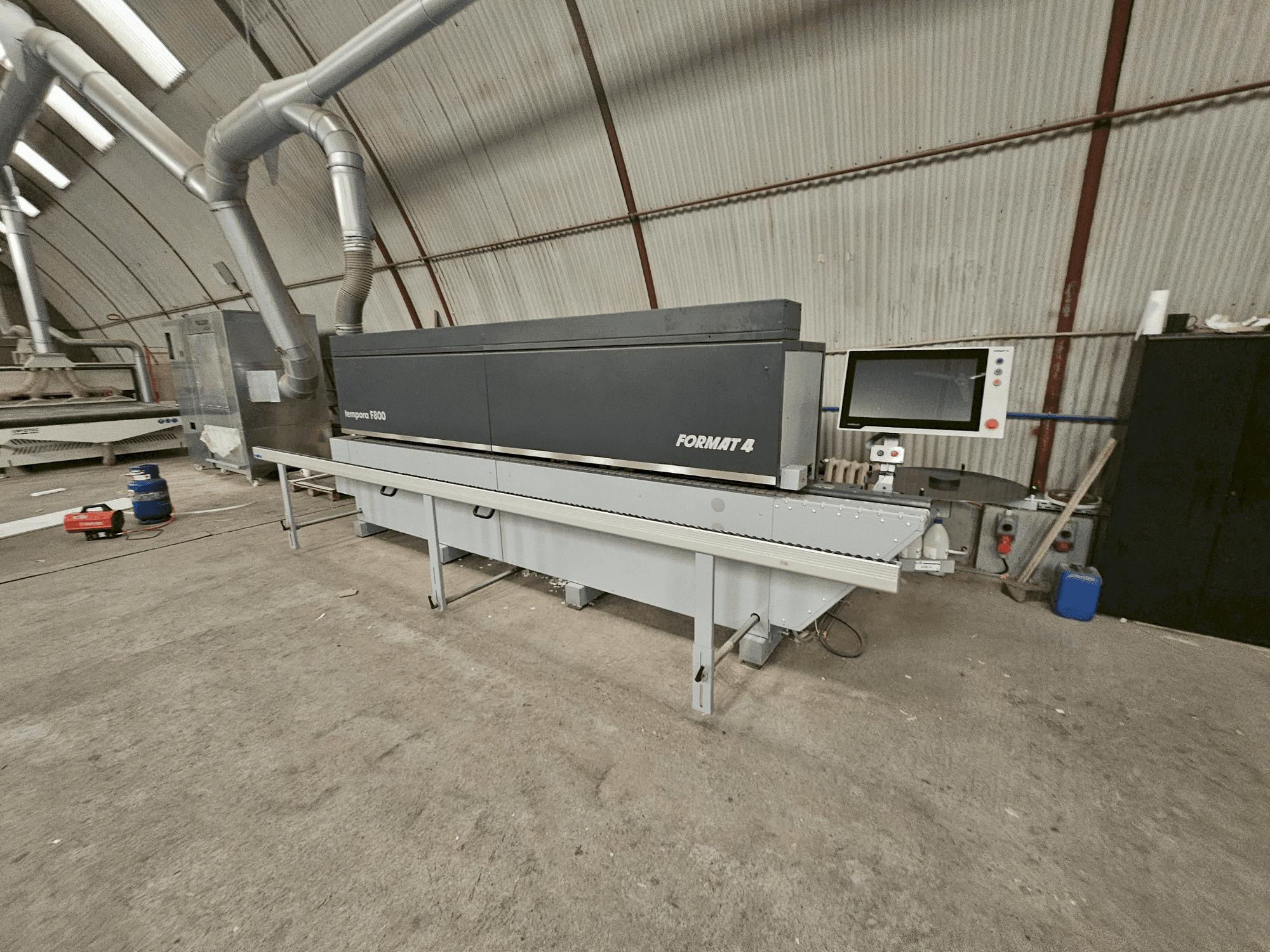

This FORMAT4 Tempora F800 60.12/2 E edgebander was manufactured in 2022. It features a Smartouch 21" control panel, E-motion control system, and a chain feed system with automatic lubrication. The machine includes a pre-milling unit with diamond cutters and a glue application system compatible with EVA and PUR. Consider the opportunity to buy this FORMAT4 Tempora F800 60.12/2 E edgebander. Contact us for more information.

Overview

brand: FORMAT4
year: 2022
MODEL: Tempora F800 60.12/2 E
application type: Edge Banding
Location: Poland
machine type: Edgebander

Additional Information

Additional equipment

Control Panel: Smartouch 21" Control System: E-motion // control system with motorized adjustment (accuracy 0.01 mm)
Chain Feed System: With automatic lubrication
Top Pressure Beam: Motorized height adjustment
Pre-milling Unit: 2 x 2.2 kW motors, diamond cutters, up to 3 mm removal
Glue Application System: Compatible with EVA and PUR, fast heat-up (8 min)
Additional Glue Tank: For fast glue change
Edge Pressure Unit: 1 driven + 2 passive rollers, pneumatic control
Trimming Unit: 2 motors (0.5 kW), adjustable 0–15°
Multi-functional Trimming Unit: 2 motors, 0.75 kW, top and bottom
Corner Rounding Unit: Edge thickness 0.4 – 3 mm, panel height 10 – 60 mm, 2 independent motors, 12000 rpm

Machine Benefits

Technical Machine Benefits

Feed speed: 12 m/min (optional: 20 m/min)
Min. Panel length: 140 mm
Min. Panel width: 70 mm
Panel height range: 8 – 60 mm
Edge thickness: 0. 4 – 12 mm
Glue pot capacity: 1. 5 kg
Guillotine for coil edge thickness: 0. 4 – 3 mm
Electric load: 3x 400v, 50 hz

Extra Information

Additional Equipment Profile Scraper Unit: Motorized and pneumatically retractable Buffing Unit: Top and bottom Antistatic, Cleaning, and Release Spray Systems Flat Scraper Unit: Pneumatically controlled Infrared Edge Detection System Edge Magazine: For strips up to 120 mm wide Rotary Edge Reel Holder: Ø 770 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
