Finn-Power C5 + Compact Express

Photo Gallery

Finn-Power - C5 + Compact ExpressES-PUN-FIN-2007-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Finn-Power C5 + Compact Express For Sale | gindumac.com

Show in original language

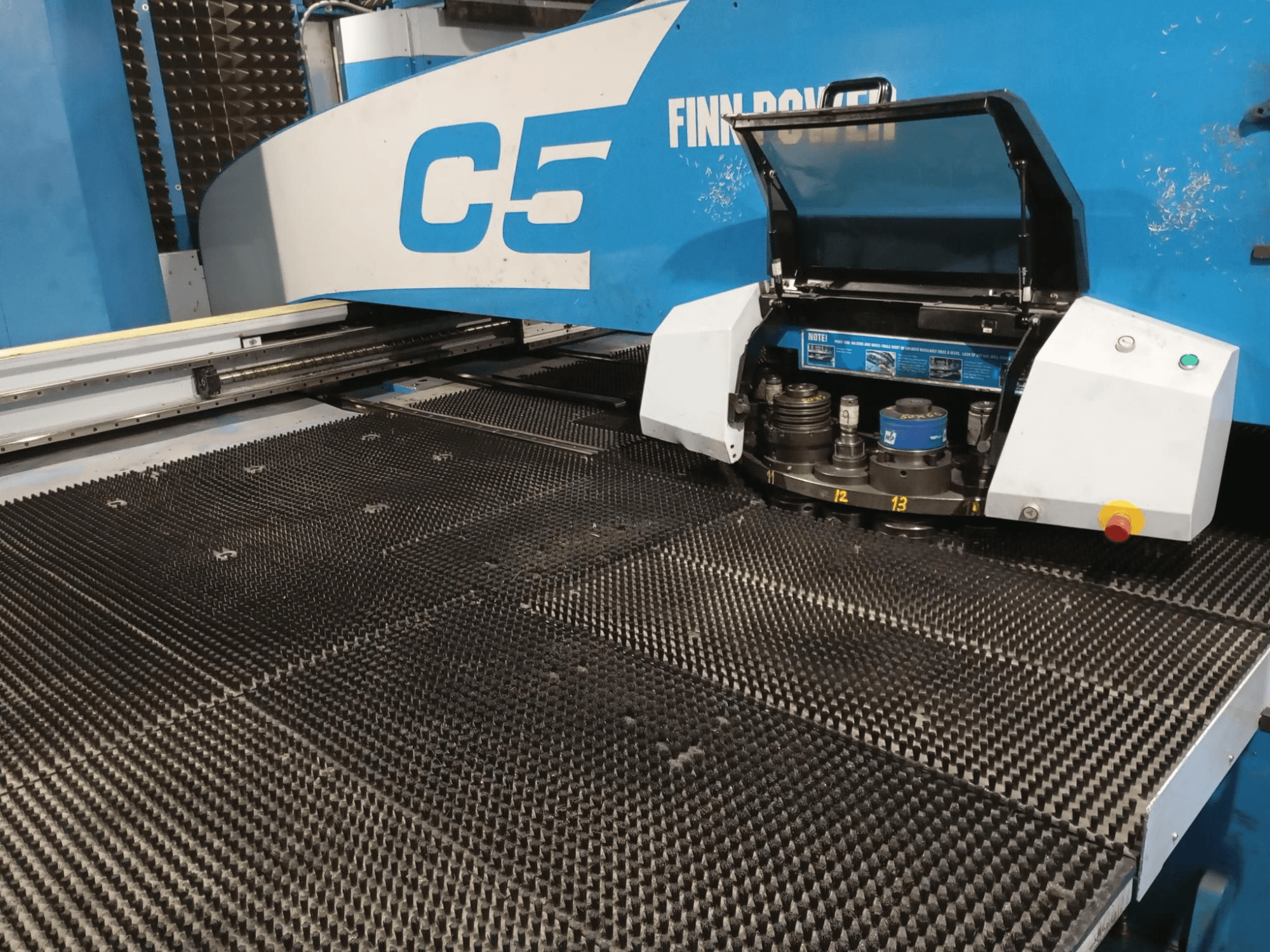

This 3s Finn-Power C5 + Compact Express CNC punching machine was manufactured in 2007. It features a working area of 2500 × 1250 mm and a punching force of 30 tonnes. With 20 tool stations and a maximum tool diameter of ~89 mm, it offers efficient operation. Consider the opportunity to buy this Finn-Power C5 + Compact Express CNC punching machine. Contact us for further details.

Overview

brand: Finn-Power
year: 2007
MODEL: C5 + Compact Express
application type: Punching
Location: Spain
machine type: CNC Punching Machine
control unit brand: SIEMENS

Technical Information - Finn-Power C5 + Compact Express

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 840D CNC

Dimensions

Machine Height: 2200 mm
Machine Length: 5570 mm
Machine Weight: 12000 kg
Machine Width: 5165 mm

Movement

Number of Axes: 2
X-axis Travel: 2500 mm
Y-axis Travel: 1250 mm

Technical Specification

Punching Force: 300 Kn

Additional Information

Maximum sheet thickness (steel): 8 mm
Number of tool stations: 20
Maximum tool diameter: ~89 mm
Table clamps: 3 (typically pneumatic)
Sheet weight capacity: ~200 kg
Traverse speeds: X ~90 m/min; Y ~60 m/min
Table support: vacuum or brush table

Additional equipment

Automatic loading/unloading system (automatic material handling, loaders/unloaders)
Chip/slug conveyor belt

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
