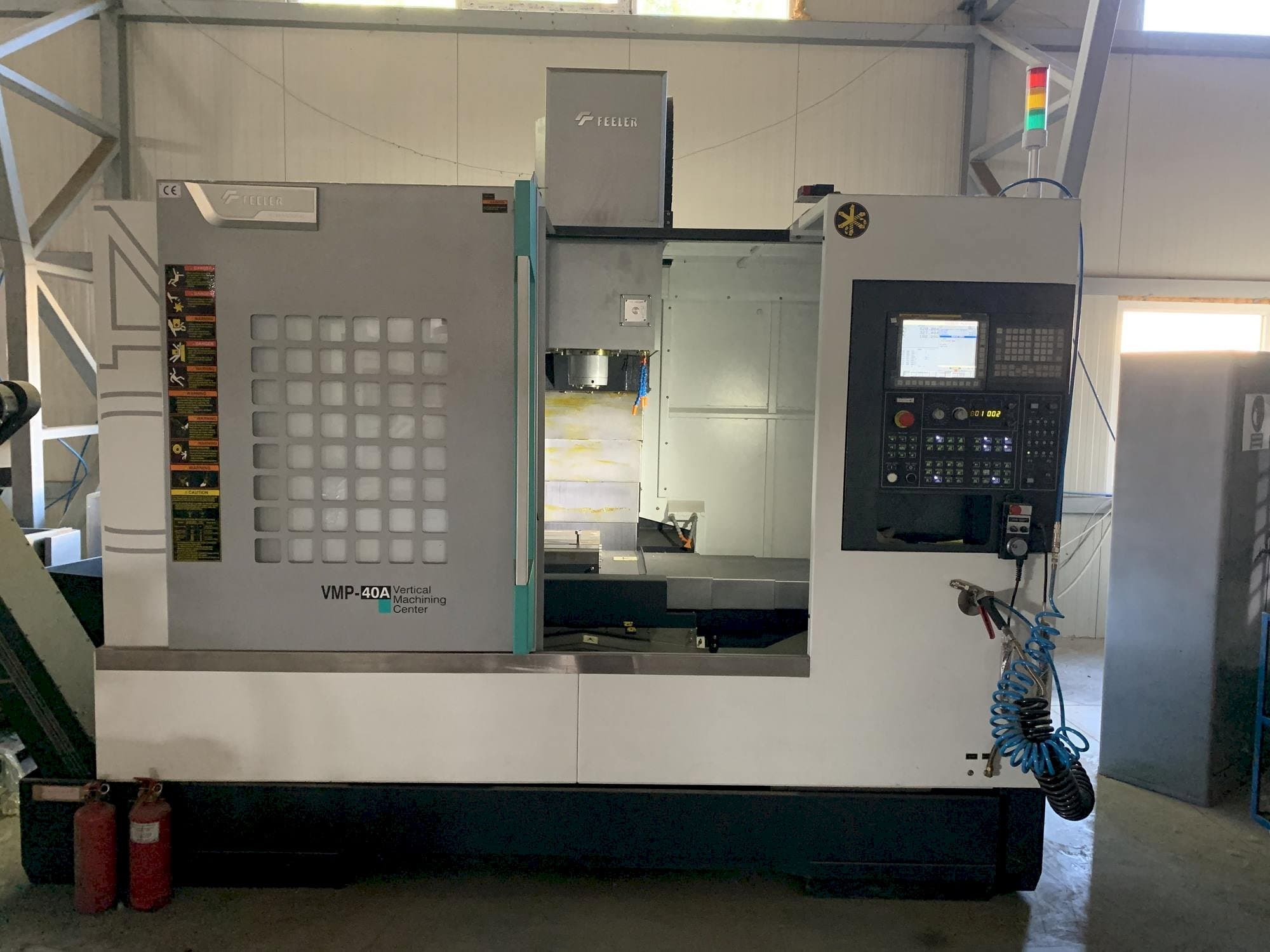

Feeler VMP 40 Vertical Machining center

Show in original language

This Feeler VMP 40 Vertical Machining center was made in 2019 in Taiwan. It is controlled by a FANUC Series Oi-MF control unit and has 3 axis. The machine has a spindle speed of 50 up to 10000 rpm.

Overview

brand: Feeler
year: 2019
MODEL: VMP 40
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Feeler VMP 40

Control Unit

Control Brand: FANUC
Control Model: Series Oi-MF

Dimensions

Machine Height: 2800 mm
Machine Weight: 6300 kg
Table Length: 520 mm
Table Width: 1150 mm

Movement

Number of Axes: 3
X-axis Travel: 1020 mm
Y-axis Travel: 520 mm
Z-axis Travel: 505 mm

Technical Specification

Spindle Speed: 10000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Distance between spindle centre and column: 560 mm
Distance between table and ground: 940 mm
Spindle to table distance: 80-585 mm
Max. Load capacity: 800 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
