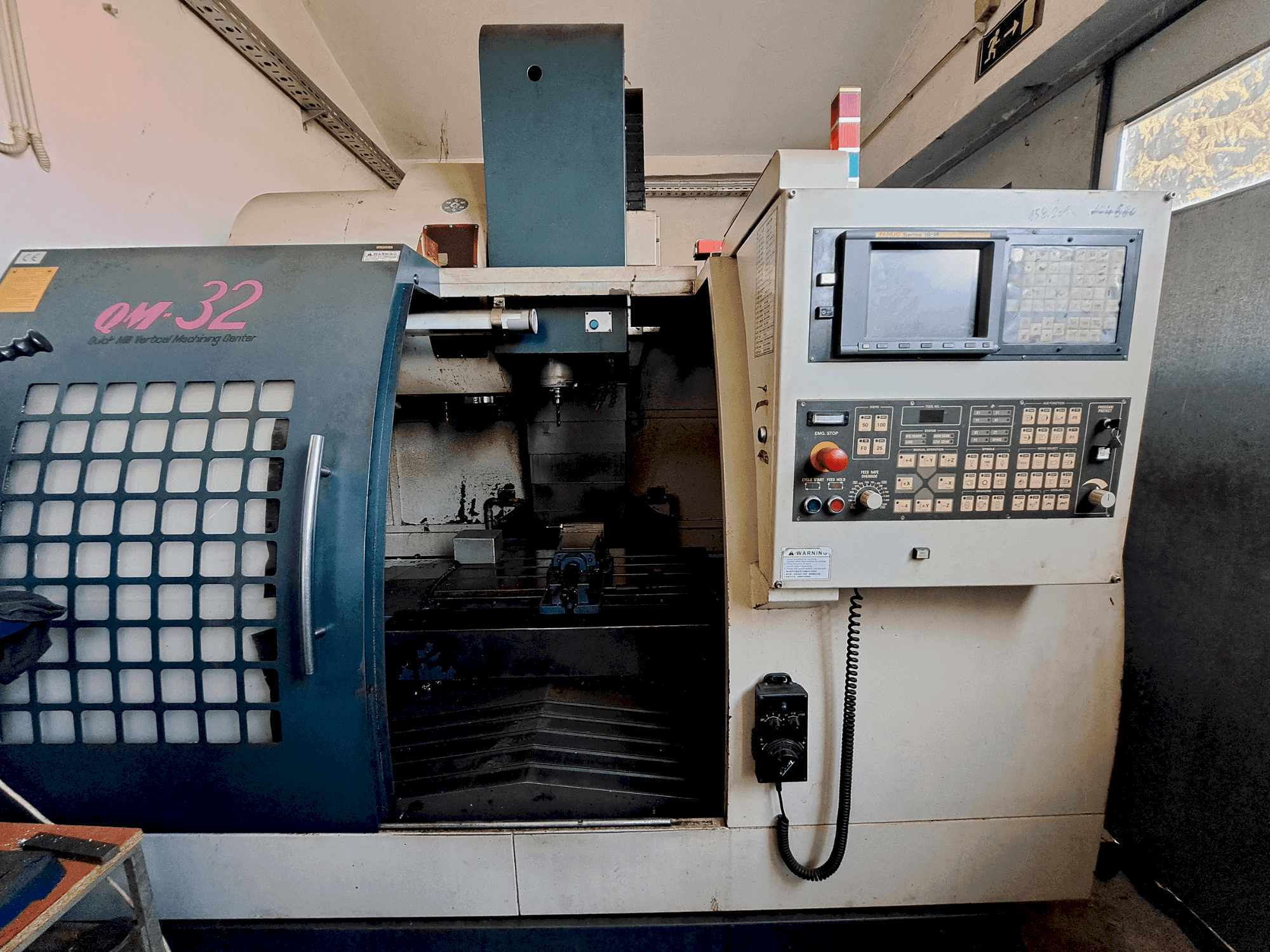

Front view of Feeler QM-32  machine

Feeler QM-32

Feeler - QM-32

2003

Rs. 1,989,550
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This FEELER QM-32 Vertical Machining Centre was manufactured in the year 2003 in Taiwan. It is equipped with a FANUC 18-m control unit. It is included with a Renishaw Tool Measurement System, operation documentation and 5 BT-40 Tool Holders.

Overview

  • brand: Feeler
  • year: 2003
  • MODEL: QM-32
  • application type: Milling
  • Location: Slovenia
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: SI-MIL-FEE-2003-00001

Technical Information

General Data

  • Measurements width: 2350 mm
  • Measurements depth: 3400 mm
  • Measurements height: 2500 mm
  • Machine weight: 5800 kg

Control Unit

  • Brand: FANUC
  • Model: 18-m

Main drive

  • Number of spindles: 1
  • Spindle speed range: 10000 1/MIN
  • Spindle motor power: 18 Kw
  • Number of axis: 3

Movement

  • X-AXIS Movement: 800 mm
  • Y-AXIS Movement: 550 mm
  • Z-AXIS Movement: 500 mm

    Additional equipment

    • - Renishaw Tool Measurement System
    • - Operation Documentation
    • - 5 BT-40 Tool Holders

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Cooling: external + through spindle
        • - Table dimensions: lxw 950mm x 460mm
        • - Number of magazine stations: 24 (a. T. C. )

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
