FANUC Robodrill Alpha D21LIB5 Plus

Photo Gallery

FANUC - Robodrill Alpha D21LIB5 PlusDE-MIL-FAN-2022-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used FANUC Robodrill Alpha D21LIB5 Plus | Machining

Show in original language

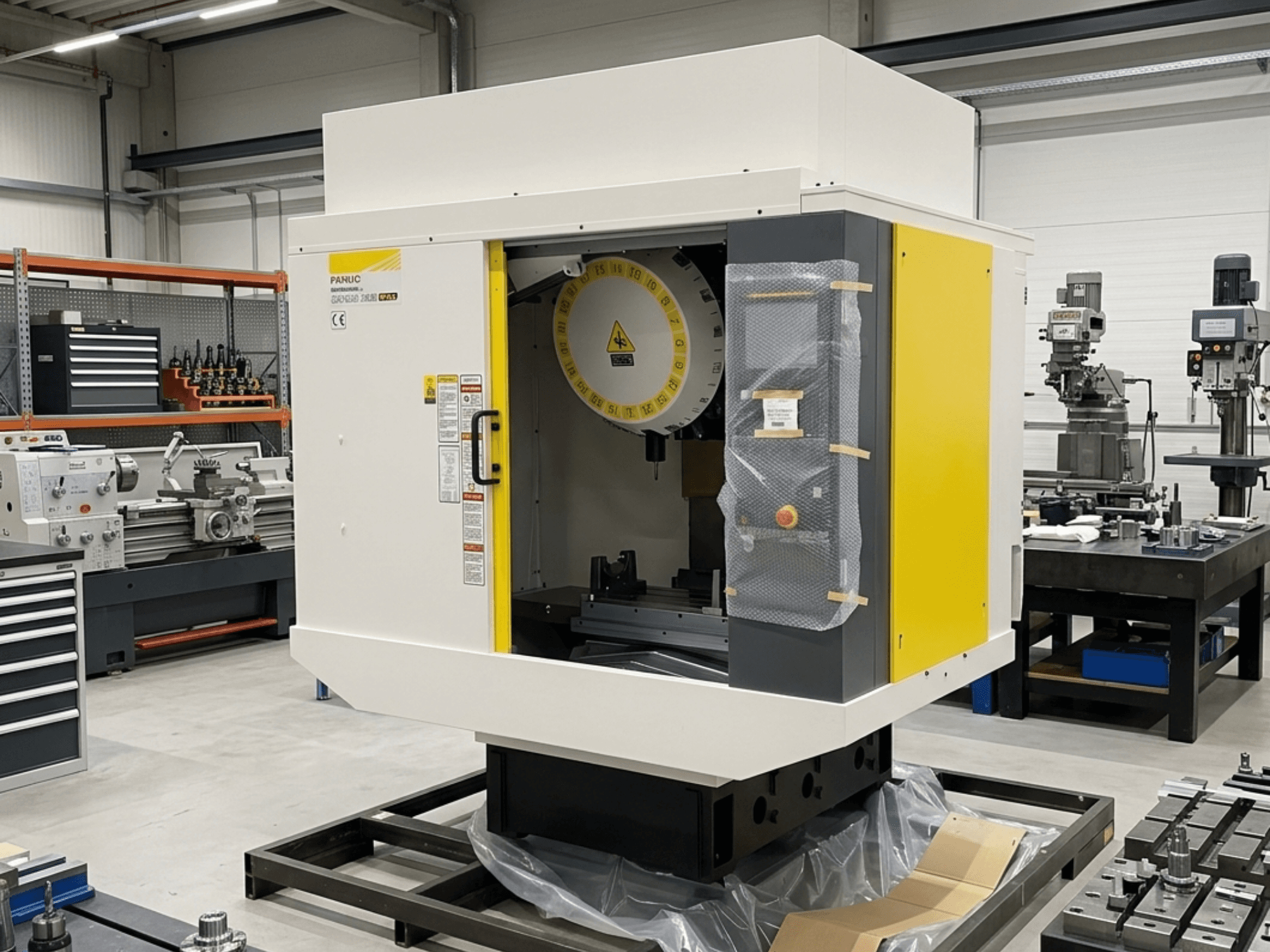

This 3-axis FANUC Robodrill Alpha D21LIB5 Plus was manufactured in 2022. It features a high-speed spindle capable of 24,000 rpm and an impressive X-axis stroke of 700 mm. The machine is equipped with a CNC control FANUC Series 31i-B5 and includes an automatic oil lubrication system. If you are looking to get high-quality machining capabilities, consider the FANUC Robodrill Alpha D21LIB5 Plus vertical machining centre we have for sale. Contact us for further details.

Overview

brand: FANUC
year: 2022
MODEL: Robodrill Alpha D21LIB5 Plus
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - FANUC Robodrill Alpha D21LIB5 Plus

Control Unit

Control Brand: FANUC
Control Model: 31i-B5

Dimensions

Machine Weight: 2280 kg

Movement

Number of Axes: 3
X-axis Travel: 700 mm

Technical Specification

Spindle Speed: 24000 RPM
Tool Stations: 21

Additional Information

Model/format: L‑Machine Advanced (700 x 400 x 330)
Control: FANUC Series 31i‑B5 (FS31i‑B5), high‑speed CPU, basic software 31i‑B5, operator panel English, compact flash card adapter
Spindle: BIG‑24000‑CTC‑MAS, center‑through coolant, air‑through spindle
Lubrication: Automatic oil lubrication system
Covers/guarding: Telescopic cover, spindle head cover, Z‑axis rubber cover, splash guard, side plates, top cover, gutter cover, CE control enabling switch unit
Lighting: Internal LED lighting
Column option: High column +100 mm (module weight approx. 65 kg)
Conformity: CE/CCC
Condition: New machine, 1‑year guarantee
Notes: Without significant accessories or software options

Additional equipment

External transformer 20 kVA, IP23 (weight approx. 115 kg)
32A CEE power plug
Cable EU/CHNS for 24,000 rpm spindle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
