Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC Robodrill alfa-T-21iDL

Photo Gallery

FANUC - Robodrill alfa-T-21iDLES-MIL-FAN-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

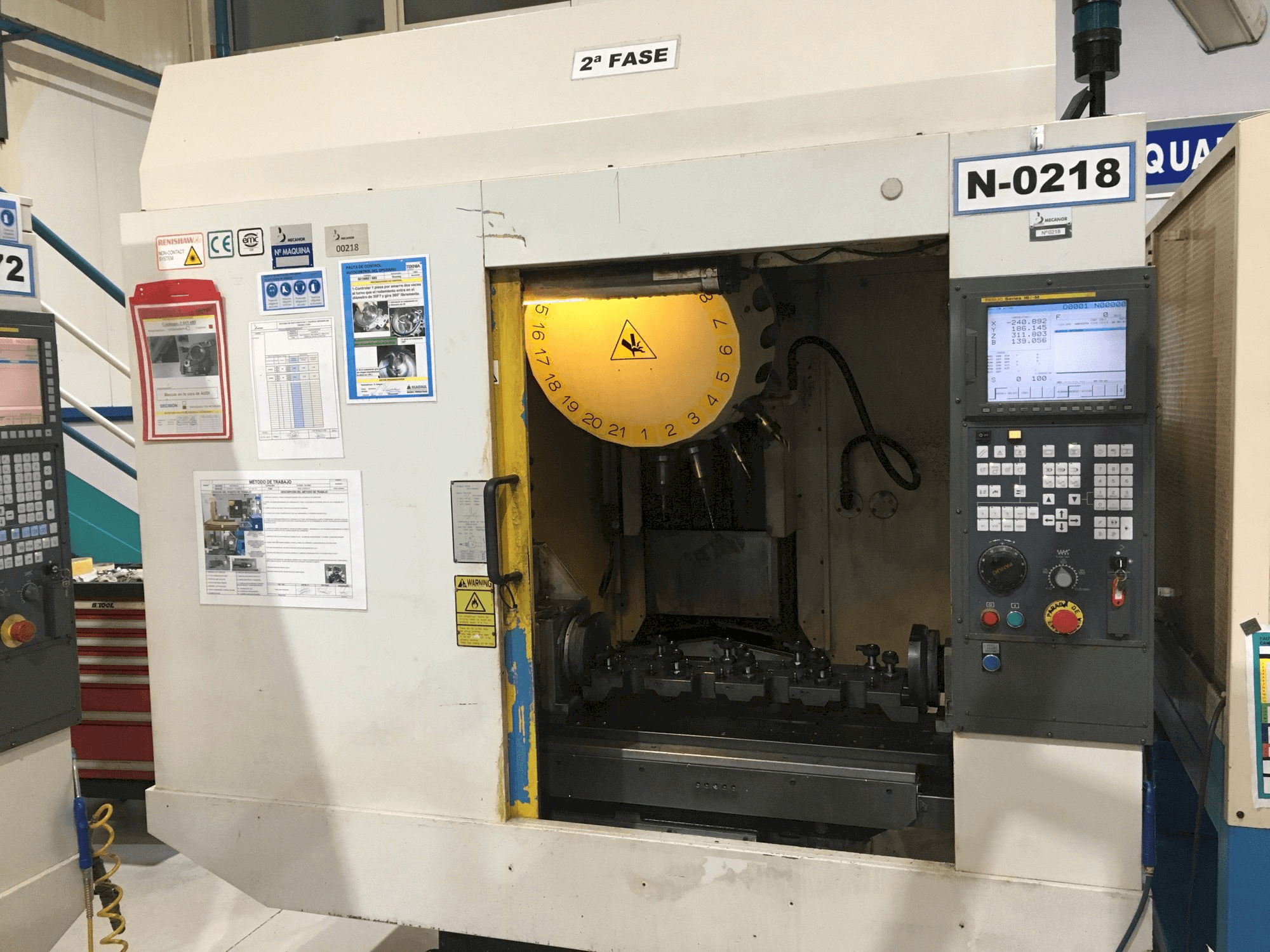

FANUC Robodrill alfa-T-21iDL Milling Machine

Show in original language

This FANUC Robodrill alfa-T-21iDL Milling Machine was made in 2004 in Japan. Equipped with a FANUC Series 16i-M Control unit, this machine works with a spindle speed up to 15000 rpm. Several additional equipment is included with this machine.

Overview

brand: FANUC
year: 2004
MODEL: Robodrill alfa-T-21iDL
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - FANUC Robodrill alfa-T-21iDL

Control Unit

Control Brand: FANUC
Control Model: Series 16i-M

Dimensions

Machine Depth: 2040 mm
Machine Height: 2600 mm
Machine Weight: 2500 kg
Table Length: 850 mm
Table Width: 410 mm

Movement

X-axis Travel: 700 mm
Y-axis Travel: 400 mm
Z-axis Travel: 330 mm

Technical Specification

Spindle Speed: 15000 RPM
Tool Stations: 21

Additional Information

Additional equipment

4th Axis Spirsin 81125.F/Ø170-H + Steady Rest SP125.F-Ø170-H
Spirsin Steady Rest with 4-way hydraulic rotary distributor at 200 Bar
Roemheld Hydraulic Power Unit Type 8400-244E (5L)
Column uplift 100mm
Transformer
Laser Dectector tool break Renishaw RS
Automatic door opening

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
