FANUC - Robocut ALPHA- 0BSI-EDM-FAN-1995-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- FANUC Robocut ALPHA-0B Erosion machine

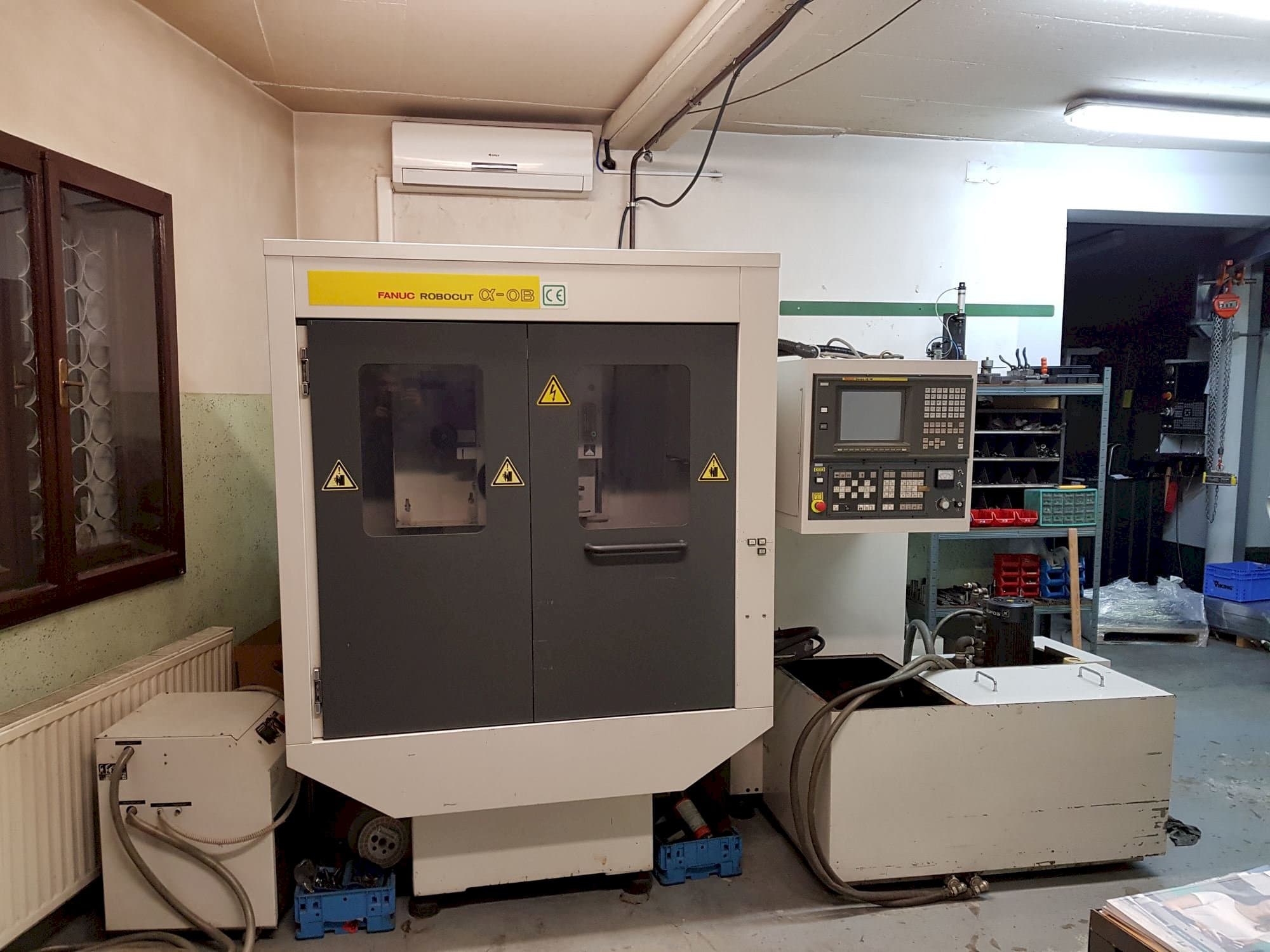

This FANUC Robocut ALPHA-0B Erosion machine was manufactured in the year 1995. It is equipped with a Fanuc Series 16-W control unit and has 4 axis. The machine has a wire tension: 0-2500 g.
Overview
- brand: FANUC
- year: 1995
- MODEL: Robocut ALPHA- 0B
- application type: EDM
- Location: Slovenia
- machine type: Wire EDM Machine
- availability: Sold
- control unit brand: Fanuc
Technical Information - FANUC Robocut ALPHA- 0B
Control Unit
- Brand: Fanuc
- Model: Series 16-W
Main drive
- Number of axis: 4
Movement
- X-AXIS Movement: 160 mm
- Z-AXIS Movement: 150 mm
- U/V Movement: 30 mm
Workpiece
- Workpiece drm over bed: 650 mm
- Workpiece drm over support: 420 mm
- Workpiece drm: 150 mm
- Workpiece weight: 250 kg
Table
- Outer length: 300 mm
- Outer width: 200 mm
Additional Information
- Technical Machine Benefits:
- - Wire tension: 0-2500 g
- - Wire feedrate: 1-10 m/min
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
