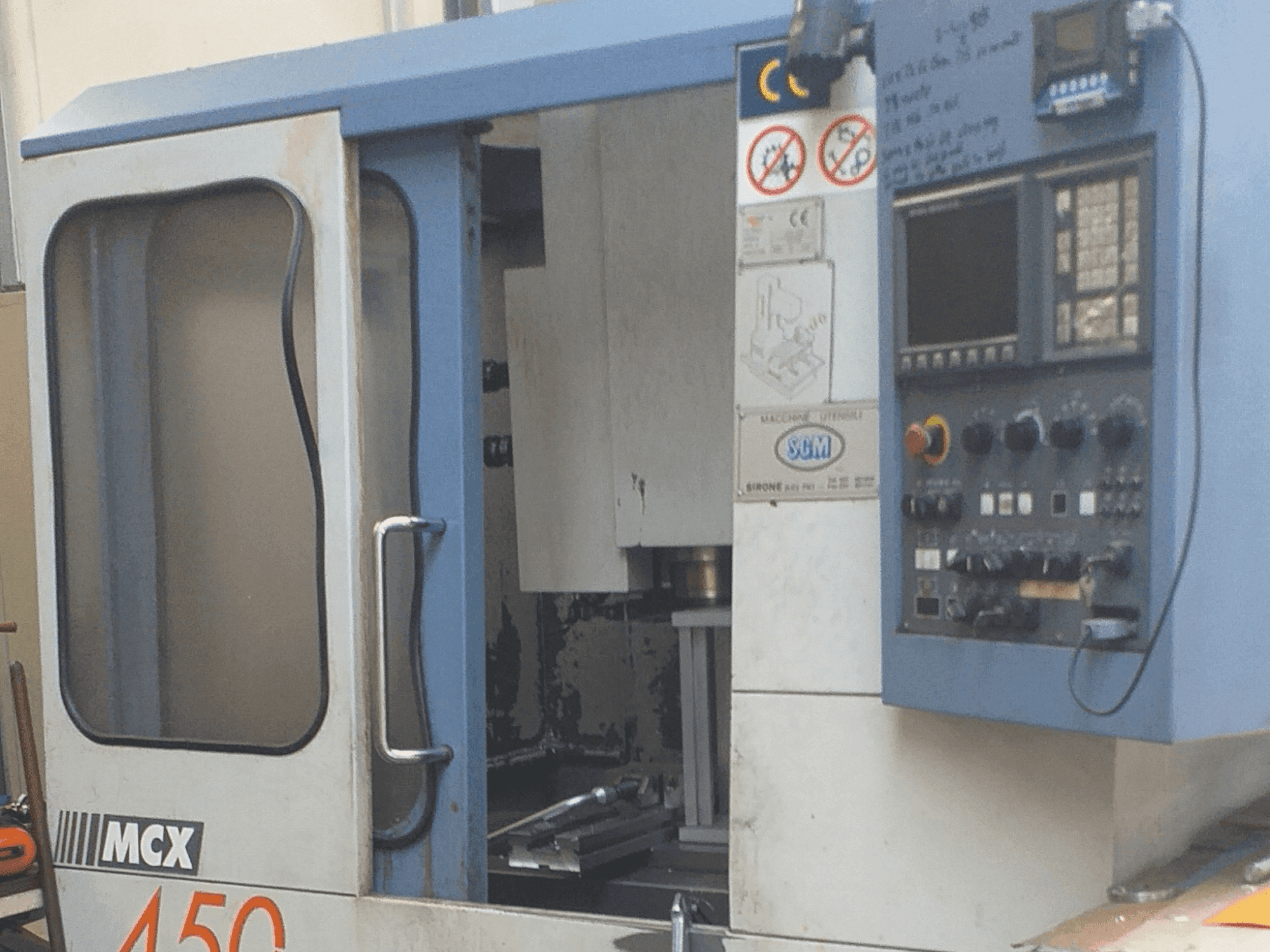

Front view of FAMUP MCX 450  machine

FAMUP - MCX 450IT-MIL-FAM-1998-00001

Rs. 1,596,500
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This FAMUP MCX 450 was manufactured in 1998. It features a robust 400 volts power supply, a 50 Hz frequency, and a basic machine mass of 2500 kg. The machine offers a working surface of 600 x 300 mm and a maximum permissible table load of 150 kg. The spindle supports a maximum rotation speed of 8000 rpm with an ISO 40 taper. Contact us for more information about this machine.

Overview

  • brand: FAMUP
  • year: 1998
  • MODEL: MCX 450
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre

Technical Information - FAMUP MCX 450

General Data

  • Machine weight: 2500 kg

Main drive

  • Spindle speed range: 8000 rpm 1/MIN

Movement

  • X-AXIS Movement: 450 mm
  • Y-AXIS Movement: 300 mm
  • Z-AXIS Movement: 400 mm

Table

  • Table load: 150 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Power supply: 400 volts, 50 hz
      • - Min-max table spindle distance: 110-510 mm
      • - Working surface: 600 x 300 mm
      • - Table-floor distance: 815 mm
      • - Spindle cartridge: din 69871 iso 40 taper
      • - Noise level: 71. 5 db(a)
      • - T-slot center distance: 100 mm
      • - T-slot width: 14 mm

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
