Fagima Fast 160

Photo Gallery

Fagima - Fast 160IT-MIL-FAG-1999-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Fagima Fast 160 For Sale | gindumac.com

Show in original language

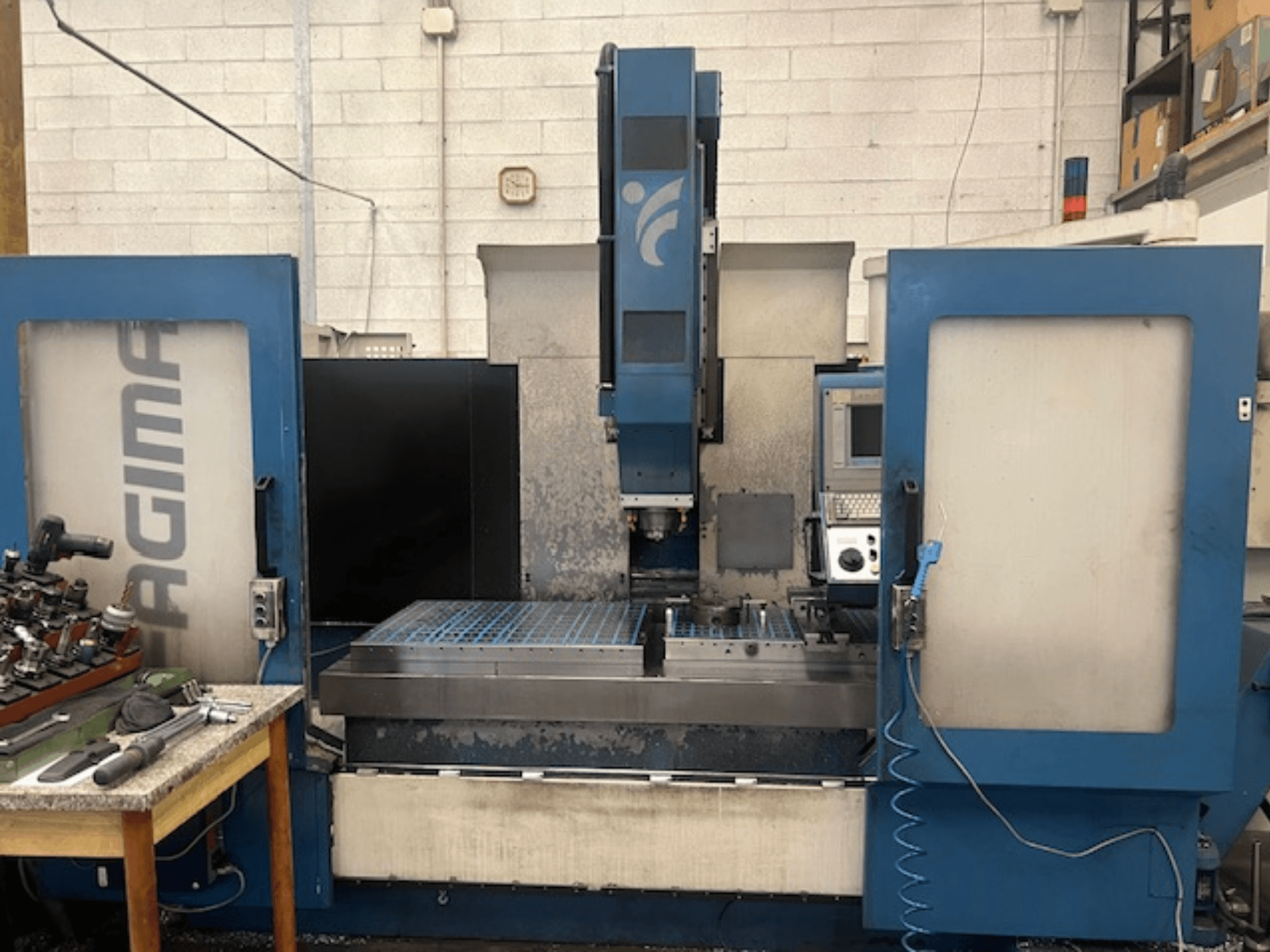

This 3-axis Fagima Fast 160 was manufactured in 1999. It features a SELCA 3045 CNC control, with a spindle power of 11 kW and a maximum speed of 10,000 rpm. The machine offers a large travel range with X-axis at 1600 mm, Y-axis at 700 mm, and Z-axis at 500 mm. It includes a tool magazine with a capacity of 38 tools. Consider the opportunity to buy this Fagima Fast 160 vertical machining centre. Contact us for more information.

Overview

brand: Fagima
year: 1999
MODEL: Fast 160
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - Fagima Fast 160

Dimensions

Machine Depth: 3600 mm
Machine Height: 2000 mm
Machine Weight: 7160 kg

Movement

X-axis Travel: 1600 mm
Y-axis Travel: 700 mm
Z-axis Travel: 500 mm

Technical Specification

Spindle Power: 11 kW

Additional Information

Aditional information

Maximum Torque: 75 Nm
Taper: ISO 40
Speed: 10000 rpm
Table
- Dimensions: 1700 × 700 mm
Tool Magazine Capacity: 38 tools
Tool Change Time: 10 sec
Coolant System: High-pressure coolant 20 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
