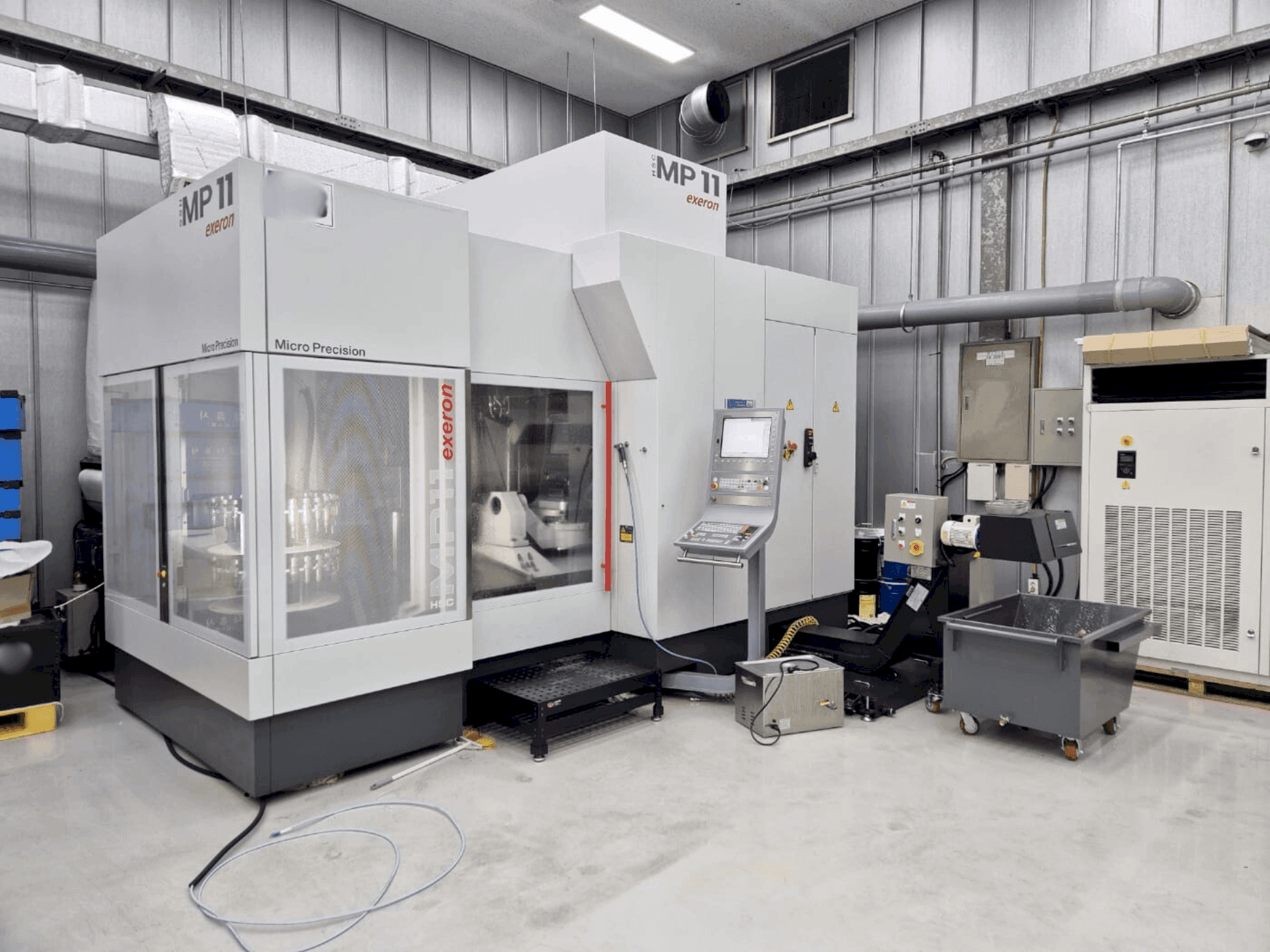

Front view of Exeron HSC MP 11/5  machine

Exeron HSC MP 11/5

Exeron - HSC MP 11/5

2019

Rs. 29,390,650
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis EXERON HSC MP 11/5 was manufactured in 2019, featuring a robust HEIDENHAIN iTNC530 control and a high-speed spindle capable of reaching 36,000 rpm. It supports complex geometries with a B axis of ±105° and a C axis that rotates infinitely. The maximum loading capacity is 350 kg, ideal for heavy-duty machining. Consider the opportunity to buy this EXERON HSC MP 11/5 vertical machining center. Contact us for further details regarding this machine

Overview

  • brand: Exeron
  • year: 2019
  • MODEL: HSC MP 11/5
  • application type: Milling
  • Location: South Korea
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: HEIDENHAIN
  • GINDUMAC ID: KR-MIL-EXE-2019-00001

Technical Information

General Data

  • Measurements width: 2390 MM
  • Measurements depth: 4500 MM
  • Measurements height: 3350 MM

Control Unit

  • Brand: HEIDENHAIN
  • Model: iTNC530

Main drive

  • Spindle speed range: 36,000 1/MIN
  • Tool taper: HSK E50
  • Number of axis: 5

Movement

  • X-AXIS Movement: 1055 mm
  • Y-AXIS Movement: 760 mm
  • Z-AXIS Movement: 540 mm
  • A-AXIS Movement: +/- 105 MM
  • C-AXIS Movement: INFINITE MM

Table

  • Outer length: 412 mm
  • Outer width: 412 mm
  • Min distance between vertical spindle and table: 706 mm
  • Table load: 350 kg
  • Max punching diameter: 560

Tools

  • Slots in storage: 54

    Additional equipment

    • - Tool measuring device
    • - Work probe
    • - Paper filter system (Made in Korea)
    • - Oil Blower system for Coolant (Made in Korea)

    Additional Information

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
