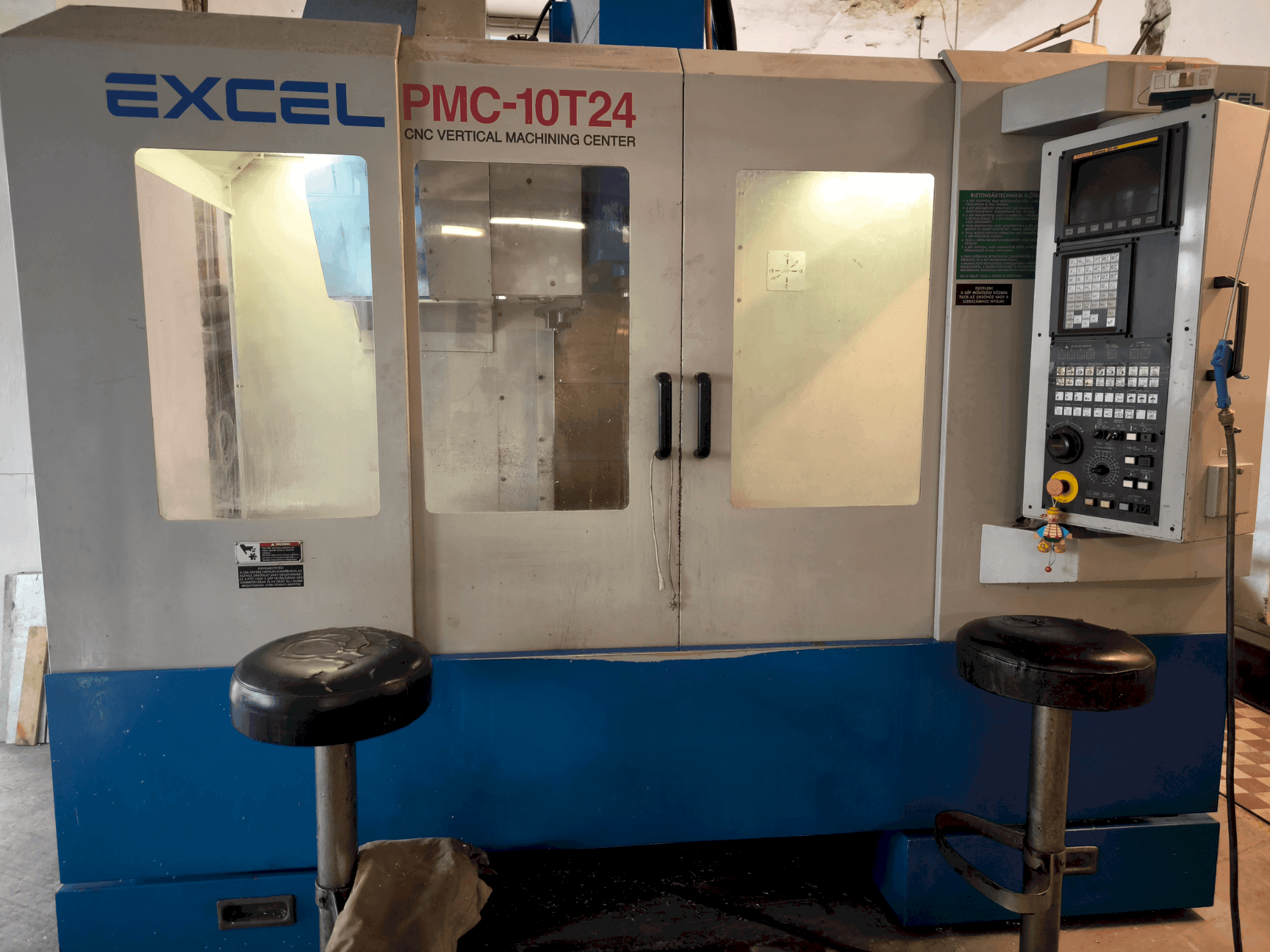

Front view of Excel  Excel PMC 10T24 (2004)  machine

Excel - Excel PMC 10T24HU-MIL-EXC-2004-00001

Rs. 4,202,100
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Excel PMC 10T24 was manufactured in 2004, featuring a robust vertical machining centre design. It boasts a table size of 43.31" x 19.29" and machine travels of 39.37" x 20.08" x 22.05". Equipped with a high-speed spindle up to 10000 RPM and a rapid traverse rate of 944 IPM, it ensures efficient machining. Ideal for those looking to buy this Excel PMC 10T24 machining centre. Contact us for further details regarding this machining centre.

Overview

  • brand: Excel
  • year: 2004
  • MODEL: Excel PMC 10T24
  • application type: Milling
  • Location: Hungary
  • machine type: Machining centers (vertical)
  • availability: Immediately

Technical Information - Excel Excel PMC 10T24

General Data

  • Measurements width: 2410 mm
  • Measurements depth: 2950 mm
  • Measurements height: 2740 mm

Main drive

  • Number of spindles: 1
  • Spindle speed range: 10000 rpm 1/MIN
  • Tool taper: ISO40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1000 mm
  • Y-AXIS Movement: 510 mm
  • Z-AXIS Movement: 560 mm

Table

  • Outer length: 1100 mm
  • Outer width: 500 mm

Turret

  • Max tool length: 300 mm
  • Number of tool slots: 24

Media

  • Internal cooling: Yes

    Additional equipment

    • - Cooling pressure: High-pressure cooling water piston

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Technical machine benefits: rapid traverse rate (x/y/z) 944 ipm
        • - Toolbox type and size: 24 pcs, vertical

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
