➤ Used Euromac 1250 STX Flex 12 Hybrid | Punching Machine

Show in original language

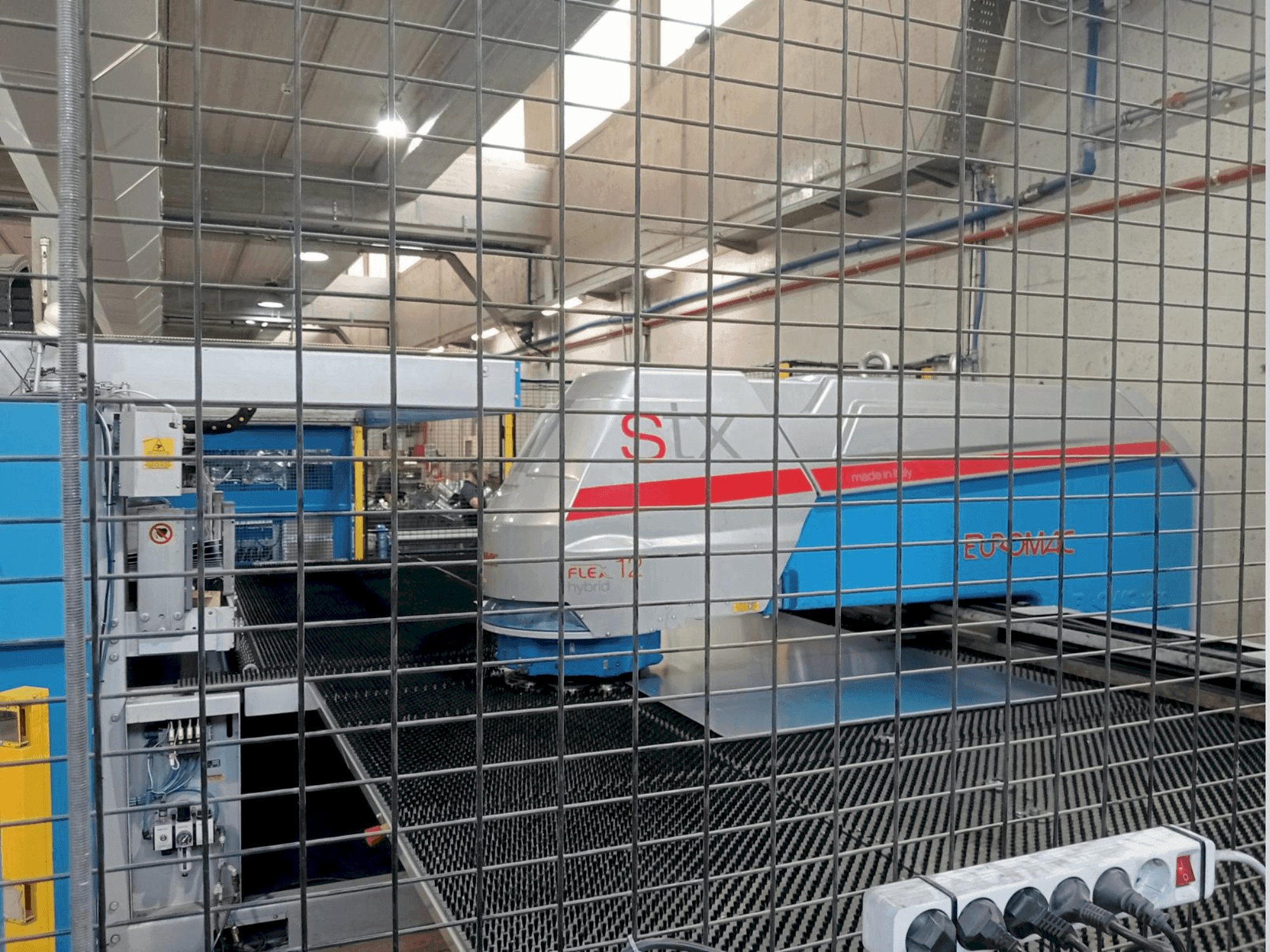

This Euromac 1250 STX Flex 12 Hybrid was manufactured in 2016. A robust punching machine with a maximum punching force of 300 kN and a thickness range of 0.6 to 6 mm. It features a numerically controlled stroke depth from 0.1 to 31 mm and bidirectional autoindex stations. Ideal for high precision tasks, the machine we have for sale supports a max. sheet weight of 150 Kg at reduced axis speed. Contact us for further details regarding this punching machine.

Overview

brand: Euromac
year: 2016
MODEL: 1250 STX Flex 12 Hybrid
application type: Bending & Punching
Location: Spain
machine type: CNC Punching Machine
availability: 10 2024

Technical Information - Euromac 1250 STX Flex 12 Hybrid

General Data

Machine weight: 7000 KG

Main drive

Maximum sheet thickness: 6 mm
Main motor power: 8.5 kW
Number of axis: 2

Movement

X-AXIS Movement: 2250 mm
Y-AXIS Movement: 1250 mm

Additional equipment

- Hydraulic Servomotor Controlled System: Standard
- Bidirectional Autoindex Stations: 3
- USB Port: 6

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Average consumption: 4. 5 kw/h
- - Max sheet weight at reduced axis speed: 150 kg
- - Numerically controlled stroke depth: 0. 1 to 31 mm
- - Opening of clamps: 11 mm
- - Automatic positioning clamps: 2
- - Punching with 20 mm pitch: 375
- - Nibbling with 1 mm pitch: 1000
- - Marking: 2000
- - Advanced positioning and accuracy with hydraulic servomotor controlled system

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
