Enshu - E130

2010

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
ENSHU E130 Vertical Machining Center

Show in original language

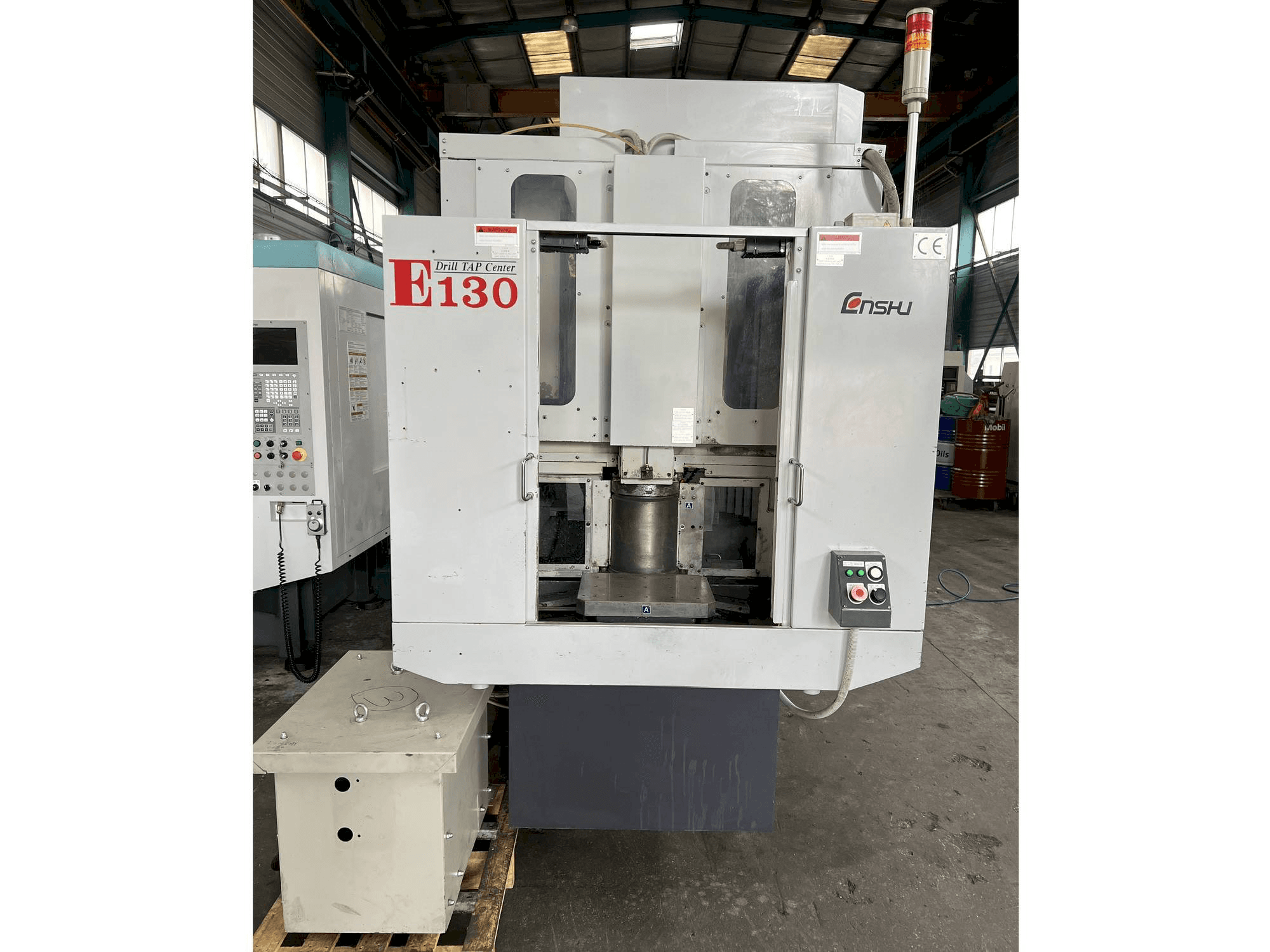

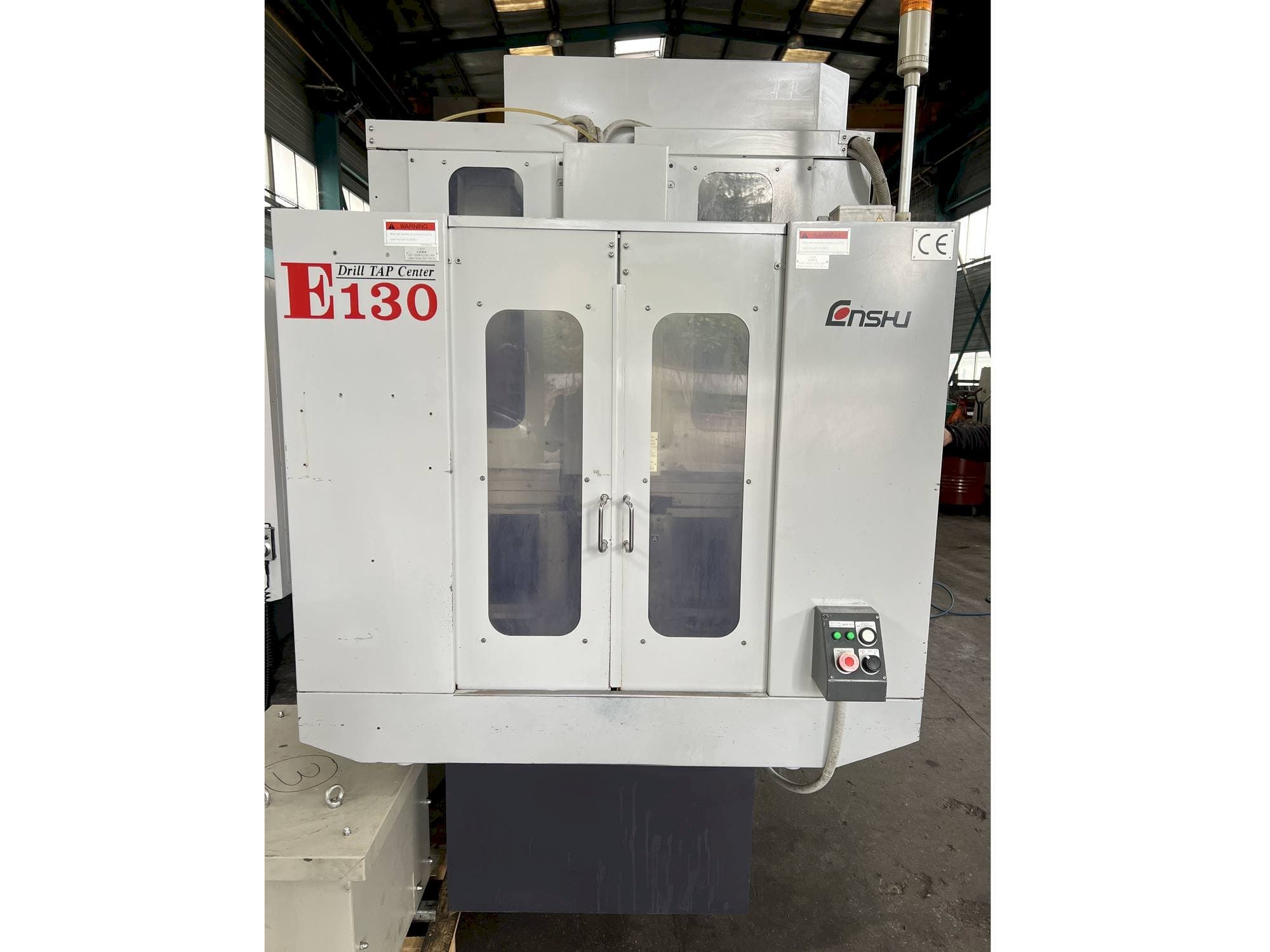

This ENSHU E130 Vertical Machining Center was manufactured in the year 2010 in Japan. It is equipped with a FANUC Series 21i-TB control unit and has 3 axis. The machine has a spindle speed of 100-10000 rpm and comes with high pressure and the RENISHAW measuring tool.

Overview

brand: Enshu
year: 2010
MODEL: E130
application type: Milling
Location: France
machine type: Machining centers (vertical)
availability: Sold
control unit brand: FANUC
GINDUMAC ID: FR-MIL-ENS-2010-00001

Technical Information

General Data

Measurements width: 1300 mm
Measurements depth: 35100 mm
Measurements height: 2200 mm
Machine weight: 2200 kg

Control Unit

Brand: FANUC
Model: Series 21i-TB

Main drive

Spindle speed range: 100 - 10000 1/MIN
Tool taper: BT30
Number of axis: 3

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 300 mm

Table

Outer length: 600 mm
Outer width: 350 mm
Table load: 200 kg

Media

Main electronic connection: 200/220 V
Power consumption: 15 kW

Additional equipment

- comes with high pressure and the RENISHAW measuring tool

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Magazine tool capacity: 12 tools
- - Tool selection: random
- - Tool exchange time: 2 sec
- - Interface: ethernet
- - Hight pressure watering in the center of spindle
Qualitative Machine Benefits:
- - Complete documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
