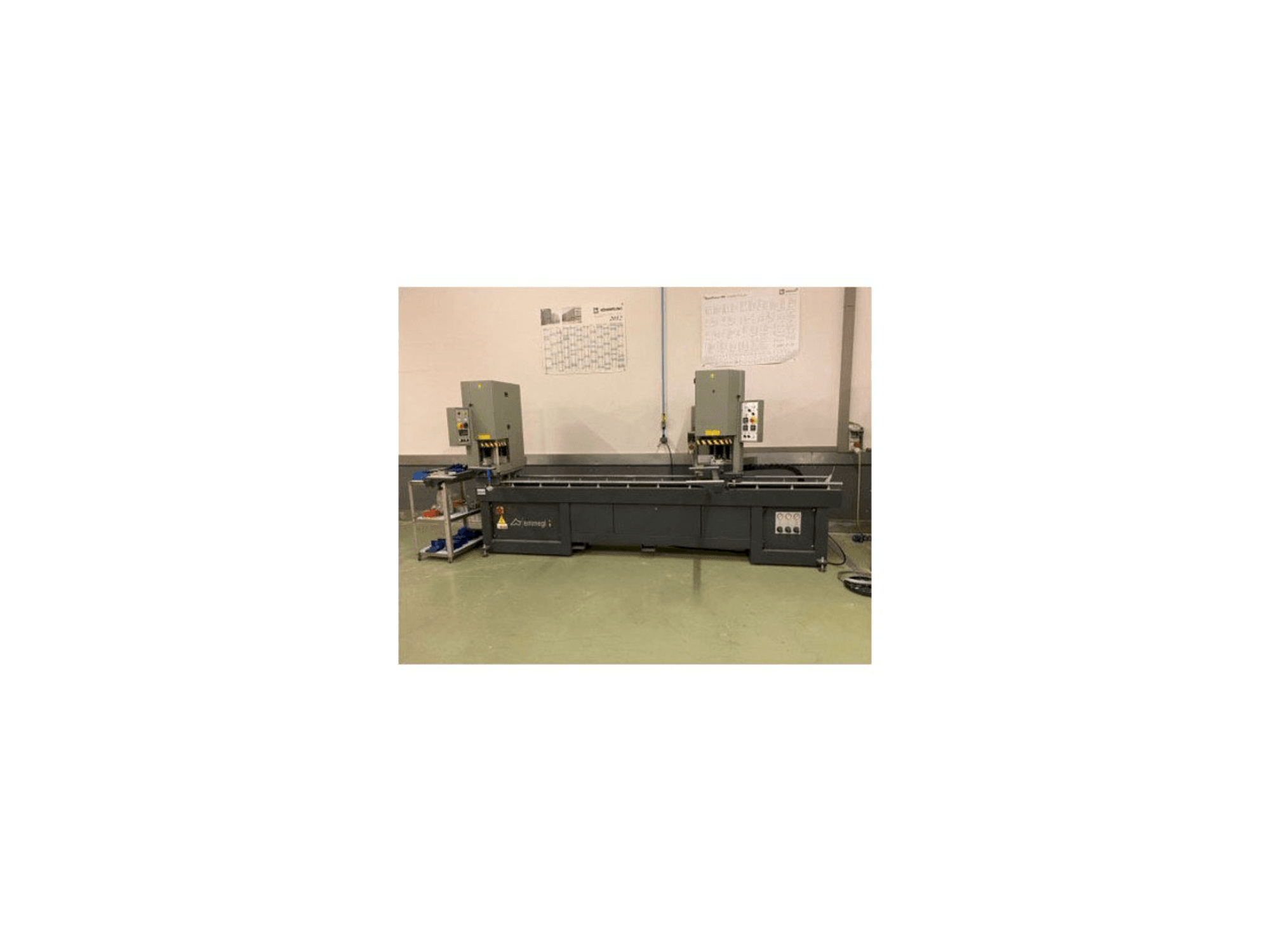

Front view of Emmegi FUSION 2LV 3440  machine

Emmegi FUSION 2LV 3440

Emmegi - FUSION 2LV 3440

2009

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Emmegi FUSION 2LV 3440 automatic cycle inline welding machine was manufactured in the year 2009 in Italy. The operating cycle is controlled by PLC. The machine has a maximum profile width of 90° welding of 150 mm, and a maximum profile width of 180° welding of 230 mm, is in excellent condition, working, and is complete with accessories.

Overview

  • brand: Emmegi
  • year: 2009
  • MODEL: FUSION 2LV 3440
  • application type: Other
  • Location: Switzerland
  • machine type: Other
  • availability: Sold
  • control unit brand: PLC
  • GINDUMAC ID: CH-OTH-EMM-2009-00001

Technical Information

General Data

  • Measurements width: 1000 mm
  • Measurements depth: 4000 mm
  • Measurements height: 1900 mm
  • Machine weight: 900 kg

Control Unit

  • Brand: PLC

Media

  • Power consumption: 5 kw

    Additional equipment

    • - Including independent screen and keyboard

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Usable weld (long / short) (mm) 3. 440 / 2. 440
        • - Min weld size (mm) 420
        • - Plate size on fixed head (length x width x thickness) (mm) 250 x 300 x 13
        • - Dimensions of the plate on the moving head (length x width x thickness) (mm) 340 x 300 x 13
        • - Maximum profile width - 90° welding (mm) 150
        • - Maximum profile width - 180° welding (mm) 230
        • - Maximum profile height (standard / without spacer) (mm) 160 / 200
        • - Min height of the profile (mm) 40
        • - Automatic spacing at the end of welding
        • - Welding bead (settable during the configuration phase) (mm) 0. 2 ÷ 2
      • Qualitative Machine Benefits:
        • - Machine in excellent condition, working and complete with accessories
        • - Heated curb limiters
        • - Welding temperature control (°c) 0 ÷ 260
        • - Bead temperature control (°c) 0 ÷ 50
        • - Welding time adjustment
        • - Setting the cooling time

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
