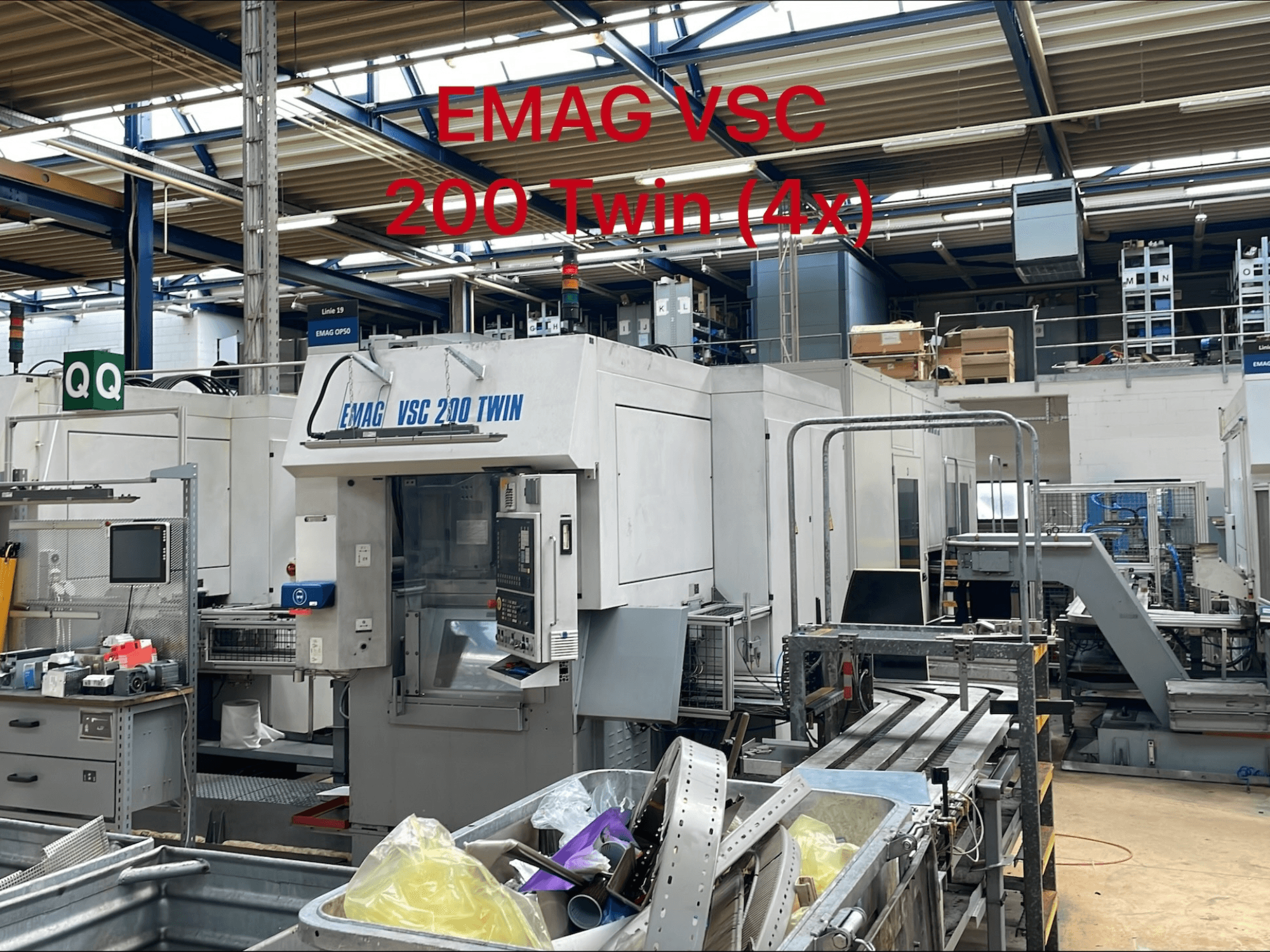

EMAG - VSC 200 TWIN OP 50 CH-TUR-EMA-2005-00002

• Operation Types: OP 50

• Machine Type: EMAG VSC 200 TWIN

• Production Type: Medium to Large Series Production

• Number of Spindles: 2

• Simultaneous Machining of Two Workpieces: Yes

• Independent X and Z Axis Drives: Yes

• Independent Measuring Systems: Yes

• Driven Tools: Yes

• Maximum Chuck Diameter: 200 / 250 mm

• Swing Diameter: 260 mm

• Loading Time: 2–4 s

• Spindle Flange: DIN 55 026 Size 6

• Front Spindle Bearing Diameter: 100 mm

• Main Drive Type: Asynchronous Motor

• Spindle Power (40% Duty Cycle): 39 kW

• Spindle Power (100% Duty Cycle): 28 kW

• Torque (40% Duty Cycle): 460 Nm

• Torque (100% Duty Cycle): 340 Nm

• Full Power Available From: 800 rpm

• Rapid Traverse X Axis: 45 m/min

• Rapid Traverse Z Axis: 30 m/min

• Feed Force X/Z: 11 kN

• Ball Screw Diameter X/Z: 50 / 40 mm

• Turret Type: Disc Turret

• Tool Stations: 2 × 8

• Tool Holder Standard: DIN 69 880

• Tool Shank Diameter: 40 mm

• Turret Index Time: 0.3 s

• Machine Bed Material: Polymer Concrete MINERALIT®

• Automatic Pick-up Loading System: Yes

• Automatic Workpiece Loading and Unloading: Yes

• Vertical Workpiece Clamping: Yes

• Operating Voltage: 400 V

• Control Voltage DC: 24 V

• Control Voltage AC: 230 V

• Frequency: 50 Hz

• Connected Load: 66 kW

• Fuse Protection: 160 A

• Electrical Standard: VDE 0113

• Available Control Systems: FANUC 31i / 32i, Siemens SINUMERIK 840 D, Bosch Rexroth MTX

• Workpiece Handling: Conveyor-Based Pick-up Automation

The technical specifications may vary slightly, as these are custom-made machines!
