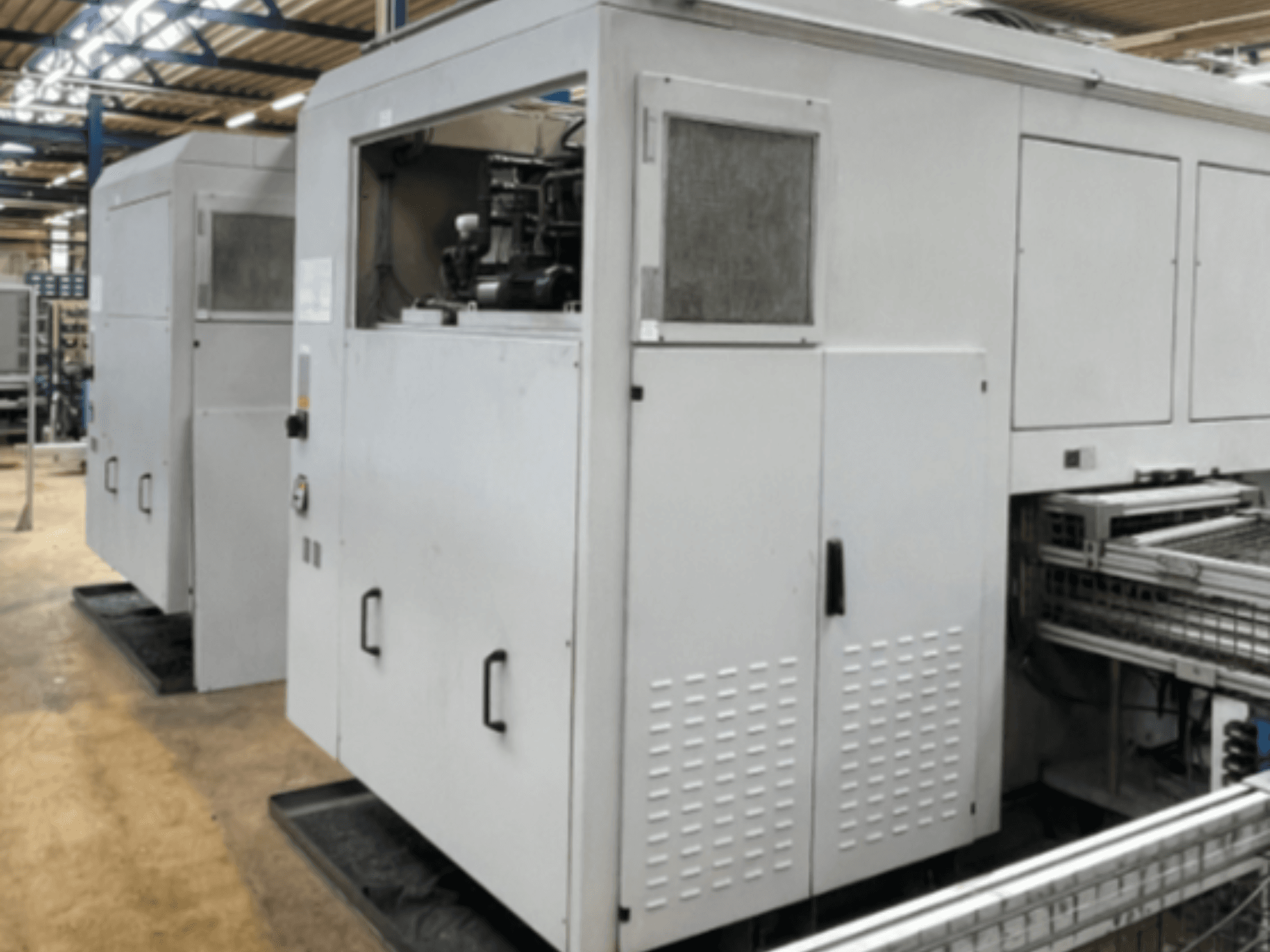

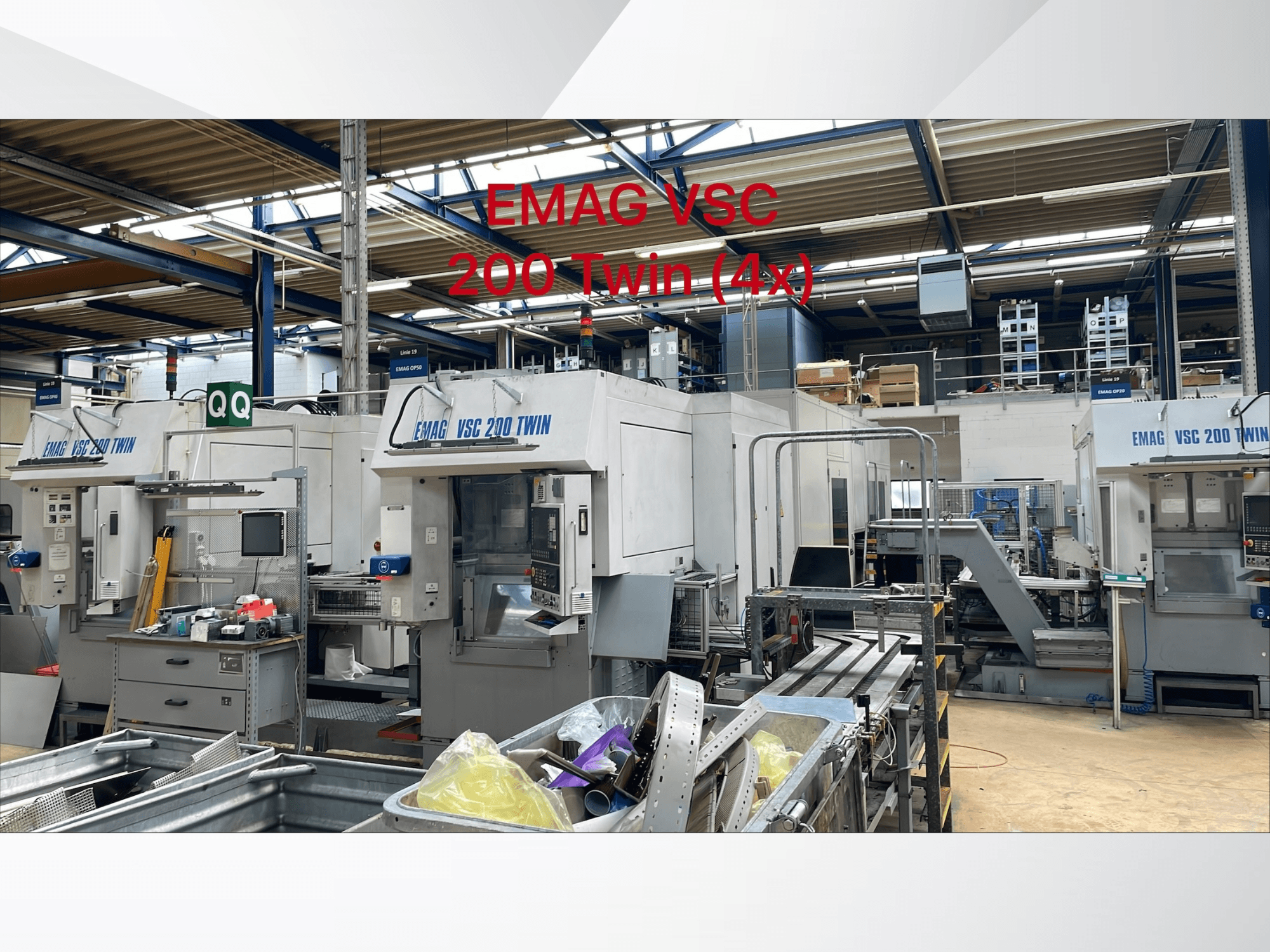

This 4-axis EMAG VSC 200 TWIN OP 10 was manufactured in 2005. It features simultaneous machining of two workpieces, independent X and Z axis drives, and a maximum chuck diameter of 250 mm. With a rapid traverse of 45 m/min on the X axis and 30 m/min on the Z axis, this vertical turning machine offers efficient performance. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 200 TWIN OP 10 machine we have for sale. Contact us for further details.
Overview
- brand: EMAG
- year: 2005
- MODEL: VSC 200 TWIN OP 10
- application type: Turning
- Location: Switzerland
- machine type: Vertical Turning Machine
Technical Information - EMAG VSC 200 TWIN OP 10
Dimensions
- Machine Weight: 12000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 850 mm
- Z-axis Travel: 200 mm
Technical Specification
- Driven Tools: No
- Max. Workpiece Diameter: 200 mm
- Spindle Power: 39 kW
- Spindle Speed: 6000 RPM
Additional Information
Operation Type: OP 10
Simultaneous Machining of Two Workpieces: Yes
Independent X and Z Axis Drives: Yes
Independent Measuring Systems: Yes
Maximum Chuck Diameter: 200 / 250 mm
Swing Diameter: 260 mm
Maximum Workpiece Diameter: 200 mm
Loading Time: 2–4 s
Front Spindle Bearing Diameter: 100 mm
Maximum Spindle Speed: 6,000 rpm
Main Drive Type: Asynchronous Motor
Spindle Power 40% Duty Cycle: 39 kW
Spindle Power 100% Duty Cycle: 28 kW
Torque 40% Duty Cycle: 460 Nm
Torque 100% Duty Cycle: 340 Nm
Full Power Available From: 800 rpm
Rapid Traverse X Axis: 45 m/min
Rapid Traverse Z Axis: 30 m/min
Feed Force X/Z: 11 kN
Ball Screw Diameter X/Z: 50 / 40 mm
Tool Stations: 2 × 8
Tool Holder Standard: DIN 69 880
Tool Shank Diameter: 40 mm
Turret Index Time: 0.3 s
Machine Bed Material: Polymer Concrete MINERALIT®
Operating Voltage: 400 V
Control Voltage DC: 24 V
Control Voltage AC: 230 V
Frequency: 50 Hz
Connected Load: 66 kW
Fuse Protection: 160 A
Approximate Machine Weight: 12,000 kg
Electrical Standard: VDE 0113
Available Control Systems: FANUC 31i / 32i, Siemens SINUMERIK 840 D, Bosch Rexroth MTX
Automatic Workpiece Loading and Unloading: Yes
Vertical Workpiece Clamping: Yes
The technical specifications may vary slightly, as these are custom-made machines!
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
