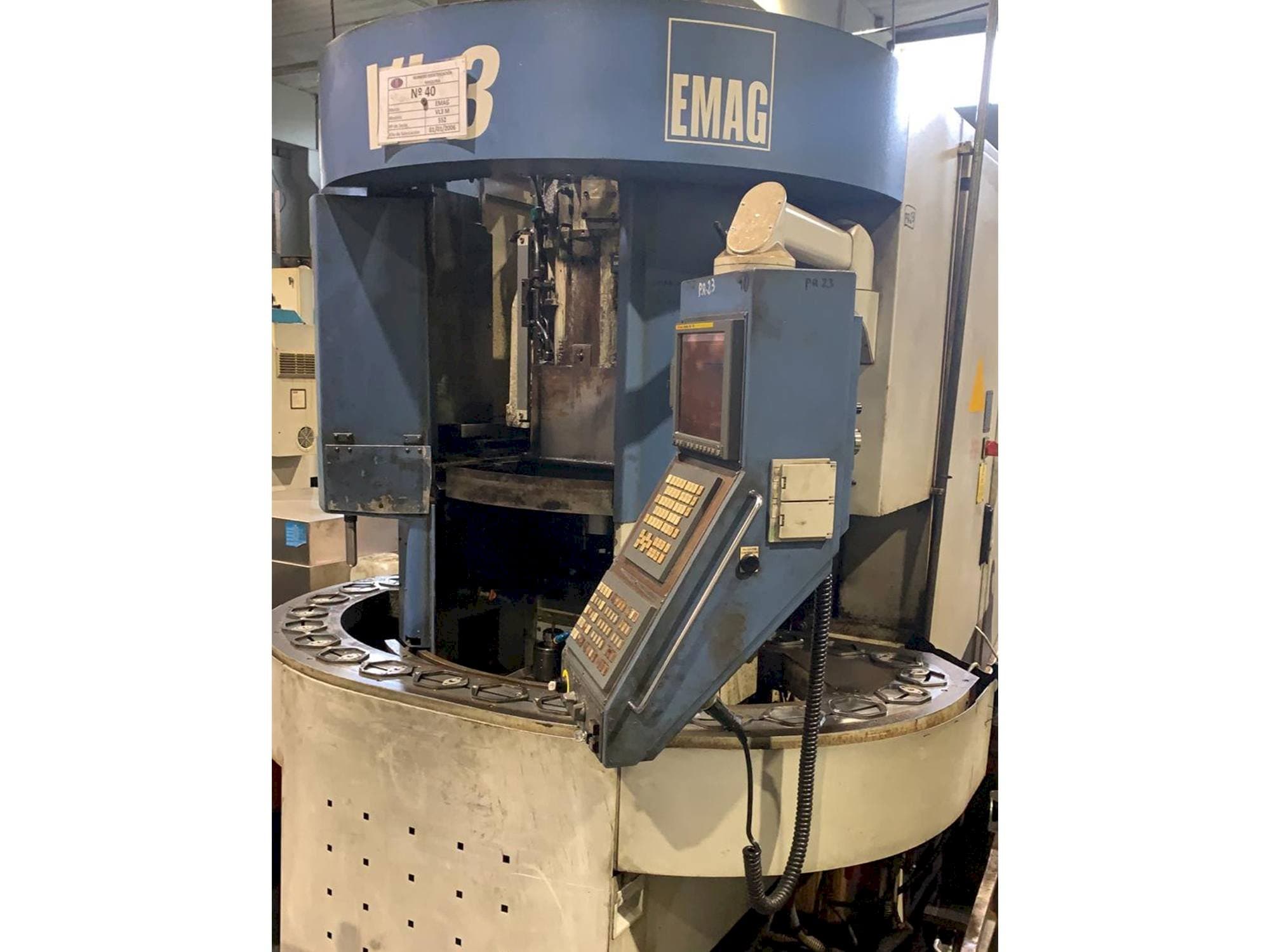

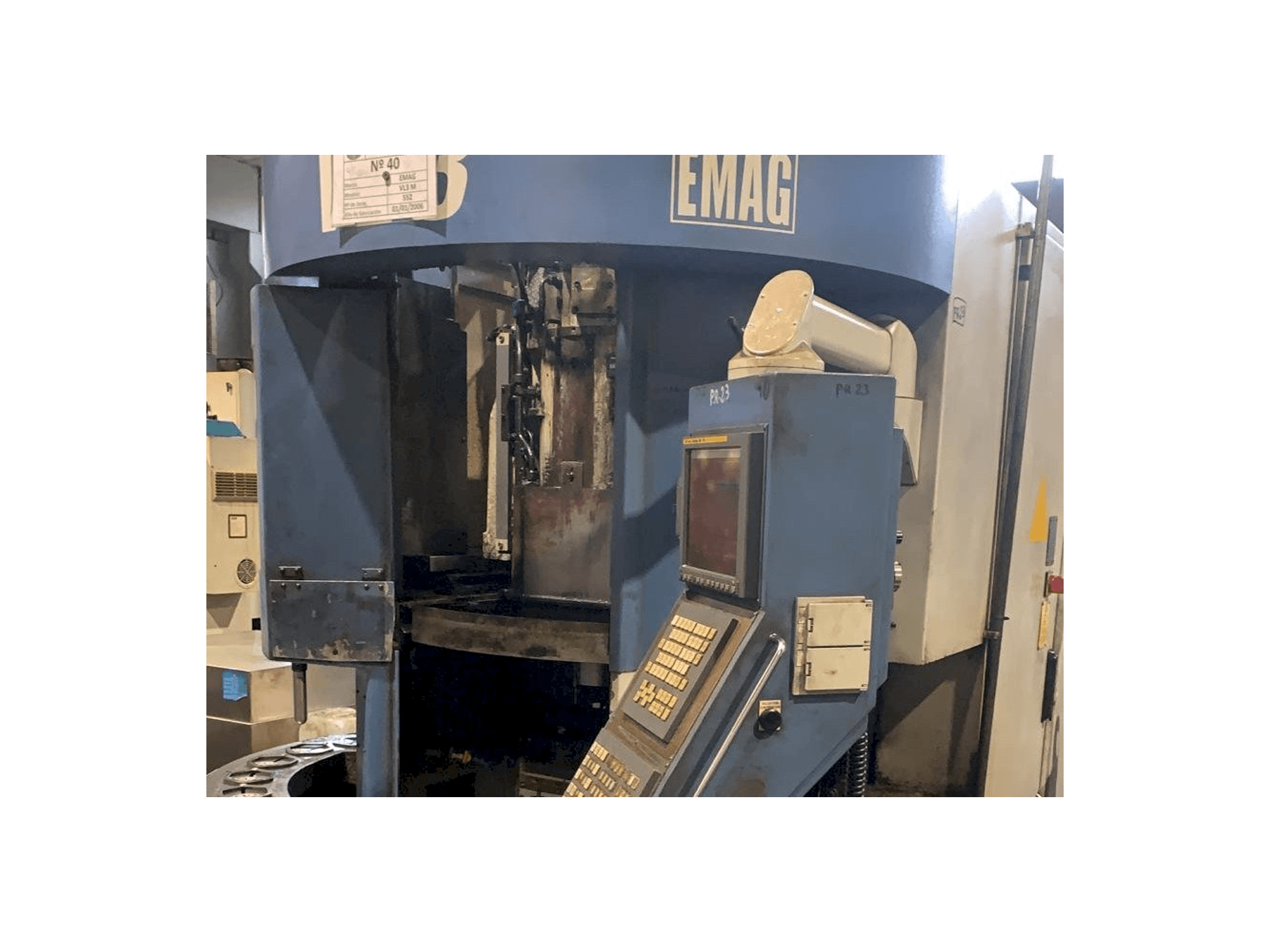

This EMAG VL 3 Lathe was built in 2005 in Germany. It is equipped with a FANUC Series 18i-TB Control unit and can perform with a spindle speed up to 7500 rpm. It stands out for having a a motorized turret VDI 40.
Overview
- brand: EMAG
- year: 2005
- MODEL: VL 3
- application type: Turning
- Location: Spain
- machine type: Lathe
- availability: Sold
- control unit brand: FANUC
- GINDUMAC ID: ES-TUR-EMA-2005-00001
Technical Information
General Data
- Measurements width: 2450 mm
- Measurements depth: 1900 mm
- Measurements height: 2300 mm
- Machine weight: 5500 kg
Control Unit
- Brand: FANUC
- Model: Series 18i-TB
Main drive
- Number of spindles: 1
- Spindle speed range: 7500 rpm 1/MIN
- Spindle bore: 80 mm
Movement
- X-AXIS Movement: 400 mm
- X-AXIS Feed Force: 5 kN
- X-AXIS Rapid traverse: 60 m/min
- Y-AXIS Feed Force: 5 kN
- Z-AXIS Movement: 200 mm
- Z-AXIS Feed Force: 5 kN
- Z-AXIS Rapid traverse: 30 m/min
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 31 kW
Additional Information
- Technical Machine Benefits:
- - Motorized turret vdi 40
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
