Elumatec SBZ 122/73

Photo Gallery

Elumatec - SBZ 122/73DE-OTH-ELU-2021-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Elumatec SBZ 122/73 For Sale | gindumac.com

Show in original language

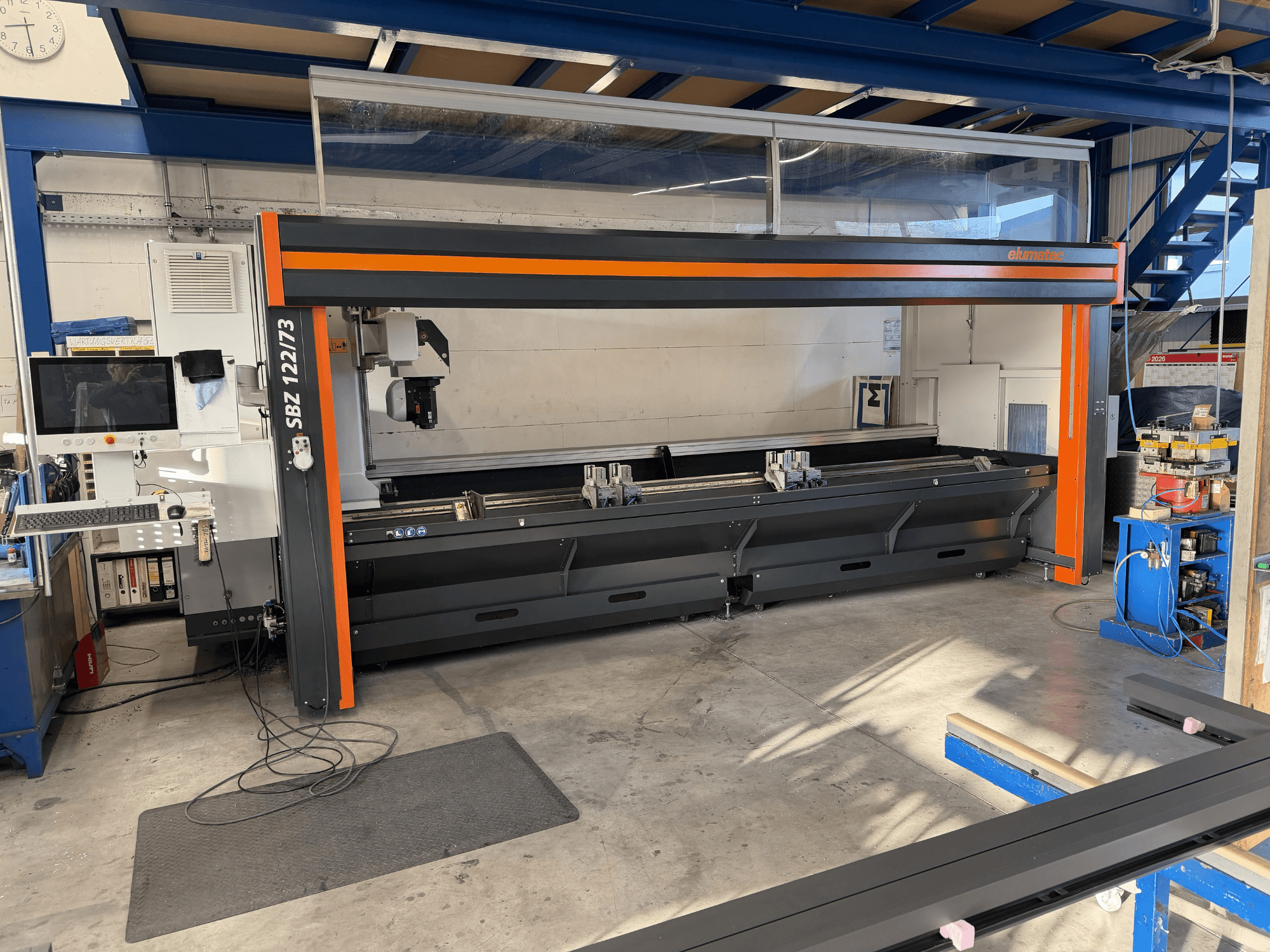

This 4-axis Elumatec SBZ 122/73 was manufactured in 2021. It features a powerful 17.5 kW capacity and a maximum spindle speed of 20,000 1/min, making it suitable for high-performance machining. The machine includes a collision-optimized clamping system and a specialized tooling set for aluminum. If you are looking to get high-quality machining capabilities, consider the Elumatec SBZ 122/73 machine we have for sale. Contact us for further details.

Overview

brand: Elumatec
year: 2021
MODEL: SBZ 122/73
production hours: 1330
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - Elumatec SBZ 122/73

Dimensions

Machine Height: 3000 mm
Machine Length: 7643 mm
Machine Weight: 3800 kg
Machine Width: 2171 mm

Movement

Number of Axes: 4
X-axis Travel: 4176 mm
Y-axis Travel: 1040 mm
Z-axis Travel: 540 mm

Technical Specification

Spindle Power: 7 kW
Spindle Speed: 20000 RPM

Additional Information

Profile machining center
Voltage: 400 V
Phase/PE: 3 / PE
Frequency: 50/60 Hz
Power Capacity: 17.5 kW
Nominal Current: 25 A
Max. Motor Current: 20 A
Short Circuit Current Rating (Ik/SCCR): 5 kA
Operating Pressure (P 1): 7 bar
Machine Weight: 3800 kg
Suction Connection Diameter: Ø 120 mm
Spindle Speed 1: 4000 1/min
Spindle Speed 2: 20000 1/min
Profile Length Measurement: Reinforced version for SBZ 122-73-74-75
Tooling: HM cutter set for aluminum, HSK-F63 d16 L=155 tool holder for disc milling cutter, disc milling cutter D=92x6.0mm Z=14 d=16 HM
Clamping System: 4 x Collision-optimized clamping units (upgraded version)
Material Stop: Right-hand stop for 122/70/71/73/74 with 2nd clamping circuit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
