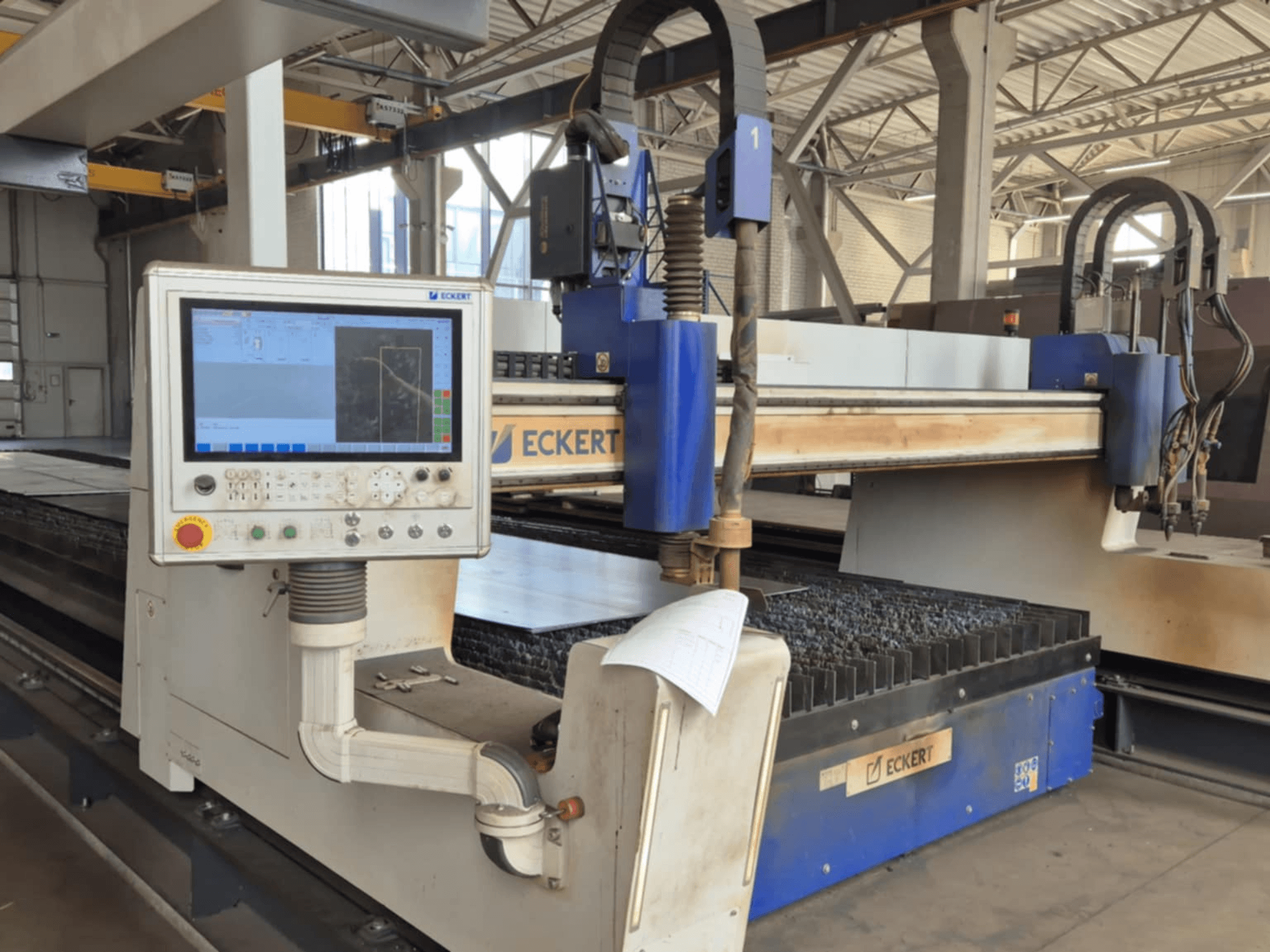

This ECKERT Onyx was manufactured in 2018. It features a robust table size of 2500 × 13000 mm and a cutting table of 2500 × 13500 mm, equipped with two fume exhaust channels. It includes two gas cutting heads capable of handling up to 300 mm thick mild steel and a Kjellberg Smart Focus 300 plasma source. Ideal for large-scale cutting tasks. Contact us for more information about this machine.
Overview
- brand: ECKERT
- year: 2018
- MODEL: onyx
- application type: Cutting
- Location: Lithuania
- machine type: Plasma Cutting Machine
Additional Information
Table size: 2500 × 13000 mm
Cutting table: 2500 × 13500 mm with 2 fume exhaust channels (dust section table, serial no. 1446/13500)
Cutting heads: Two gas cutting heads; up to 100 mm mild steel with two heads or 300 mm with one head
Plasma source: Kjellberg Smart Focus 300
Drive system: Servo AC
Available cutting width: 2500 mm
Basic working length: 13000 mm
Positioning speed: 25000 mm/min
Cutting thickness: Up to 300 mm
Cutting quality: EN ISO 9013
Positioning accuracy: EN 28206
Repeat accuracy: EN 28206
Safety module: EN 13850
Wiring diagram: EN 81346
Working table height: 740–760 mm
Ambient temperature: +5°C to +45°C
Relative humidity: Max. 90% (without condensation)
Additional equipment
OHRA shelves for steel plate storage (optional accessory)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
