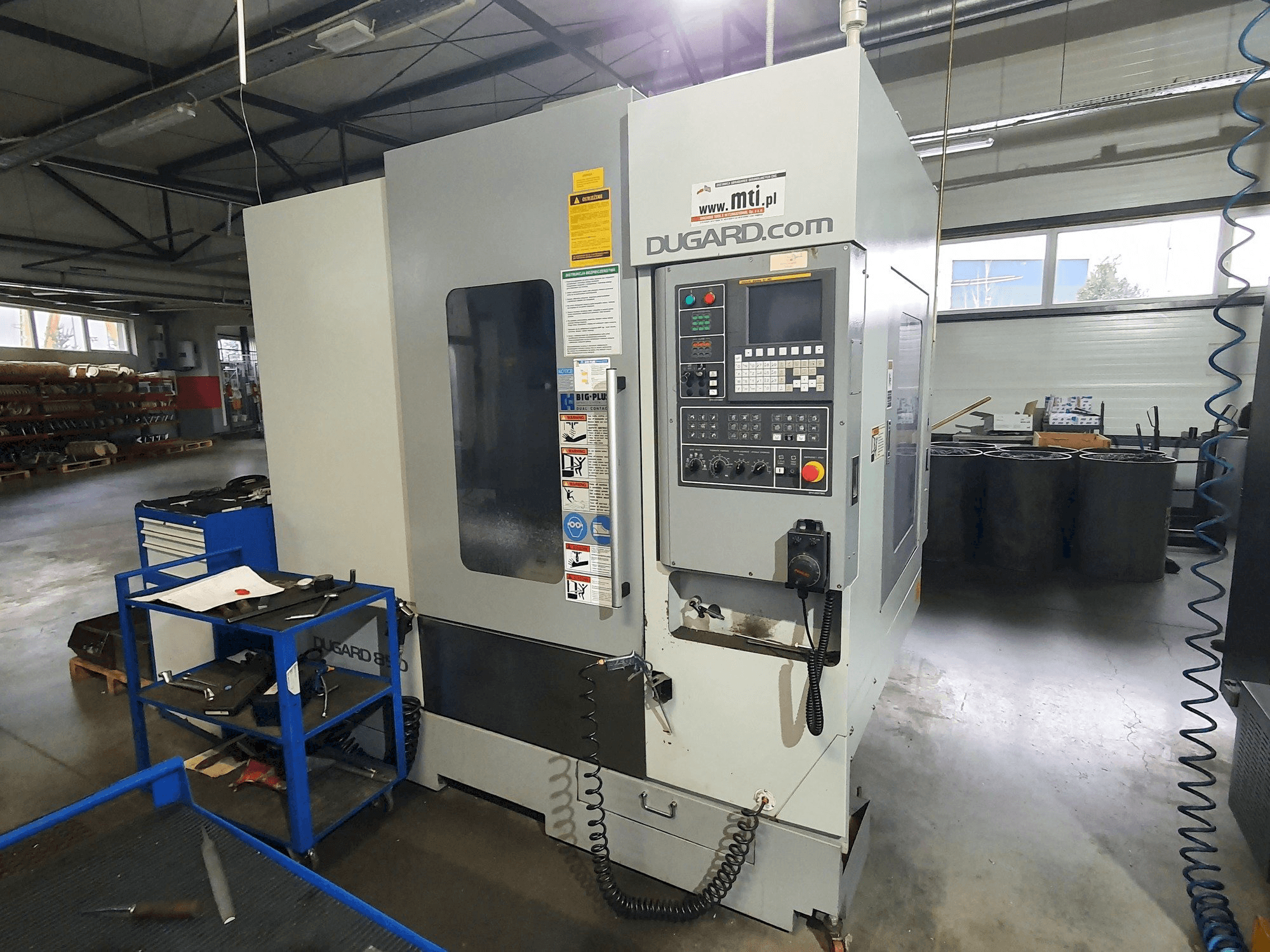

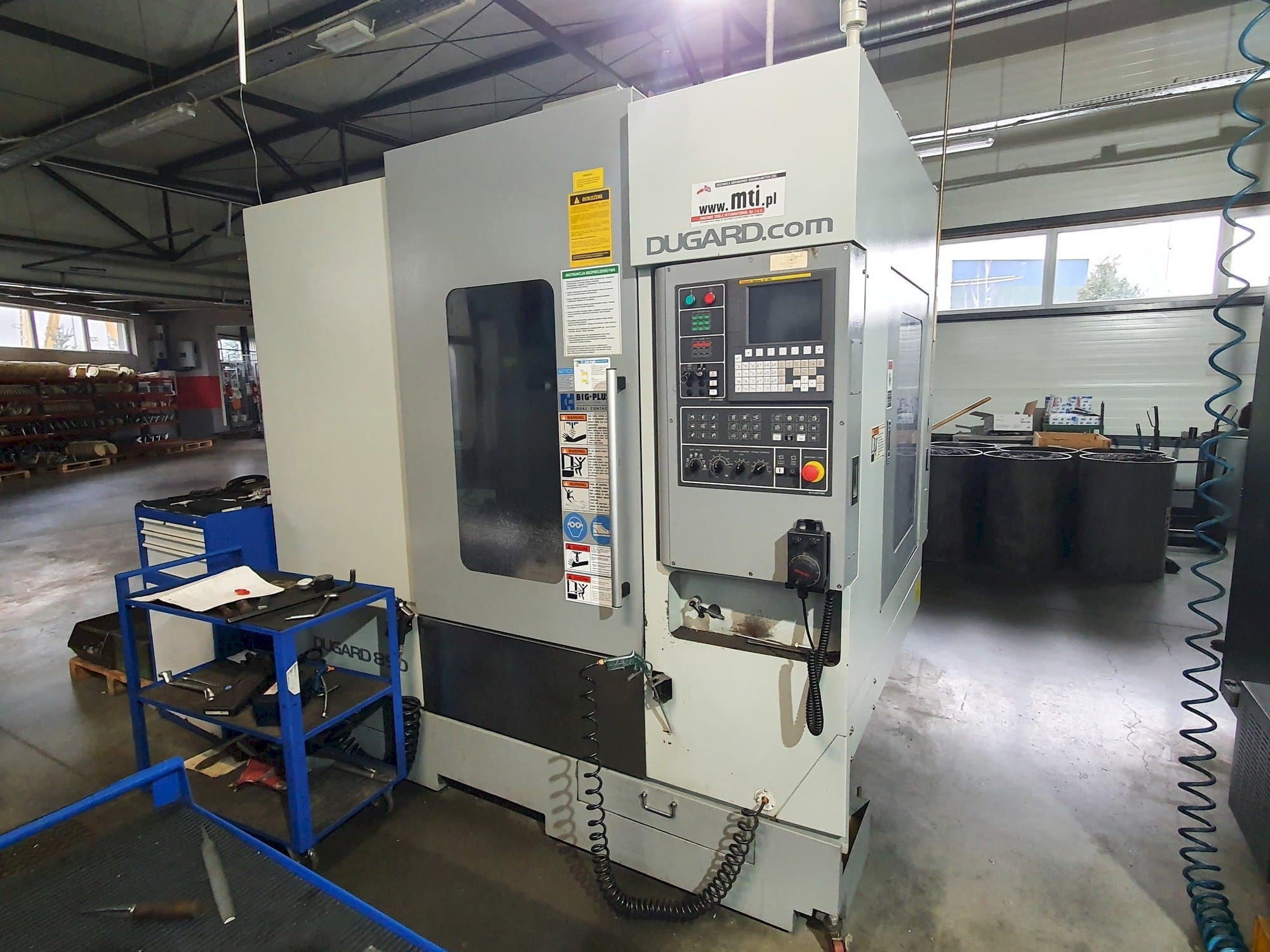

Dugard 850 VMC

Photo Gallery

Dugard - 850 VMCPL-MIL-DUG-2012-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Dugard 850 VMC Vertical Machine Center

Show in original language

This Dugard 850 VMC vertical machine center was manufactured in 2012 in Poland. It has a total of 10857 working hours, of which 3505 are spindle hours. The 3 axis machine operated through a Fanuc 0iMD control unit. This machine has a spindle speed up to 10000 rpm. The machine is in a very good working condition. It is still at the production and ready for tests. It has its full service documentation and operation and maintenance manual of the control system.

Overview

brand: Dugard
year: 2012
MODEL: 850 VMC
production hours: 10857
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Dugard 850 VMC

Control Unit

Control Brand: FANUC
Control Model: 0iMD

Dimensions

Machine Depth: 2120 mm
Machine Height: 2580 mm
Machine Weight: 5550 kg
Table Length: 1000 mm
Table Load: 500 kg
Table Width: 510 mm

Movement

X-axis Travel: 850 mm
Y-axis Travel: 530 mm
Z-axis Travel: 510 mm

Technical Specification

Max. Tool Weight: 7 kg
Spindle Speed: 10000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

External tool cooling system with coolant
External tools cooling system with compressed air
Chip flushing system
Coolant flush gun
Compressed air gun
Spindle blow-off
Automatic lubrication system
Ready for installing 4th axis (interface installed)
Workspace lighting
Extract from the operation and maintenance manual of the control system

Technical Machine Benefits

Max. X, y, z feed rate: 10000 mm/min
Positioning accuracy (p): 0. 005 mm
Repeatability (ps): 0. 003 mm
Spindle iso 40 spindle taper
Cooling system: coolant supply through the spindle (option included)
Control system - the spindle (option included)
Tool magazine capacity: 24 tools
Tool holder type bt40
Tool change time: 2. 0 - 4. 5 sec

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
