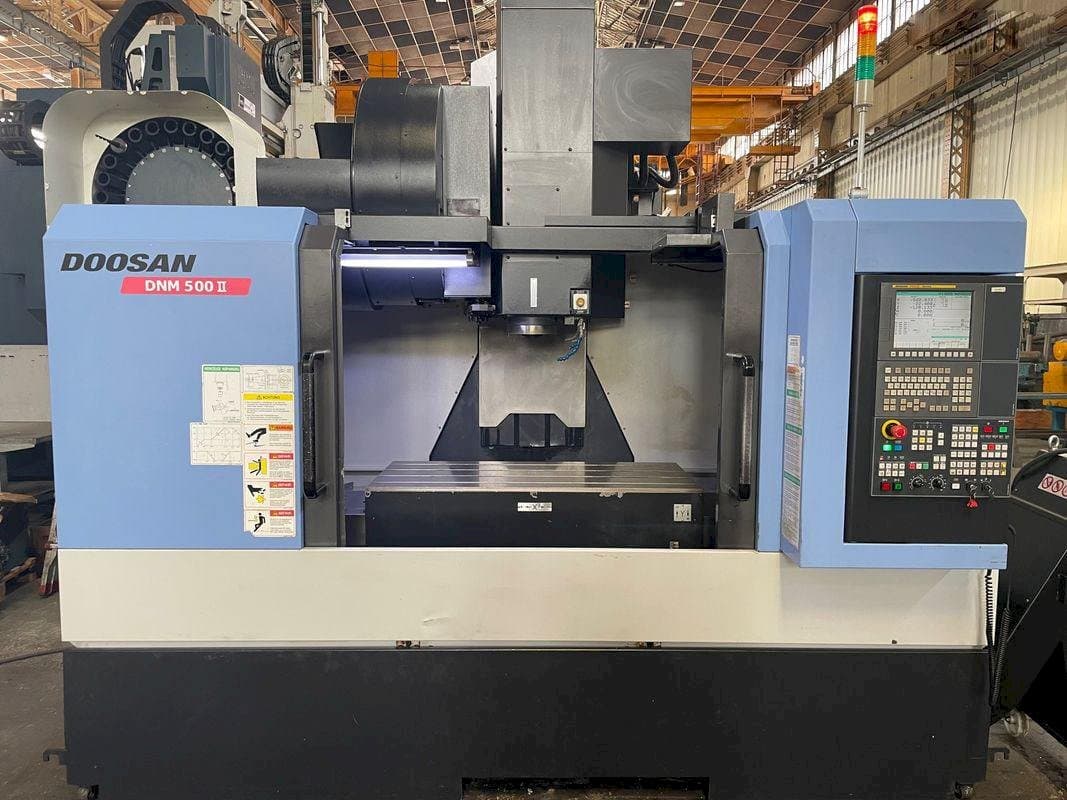

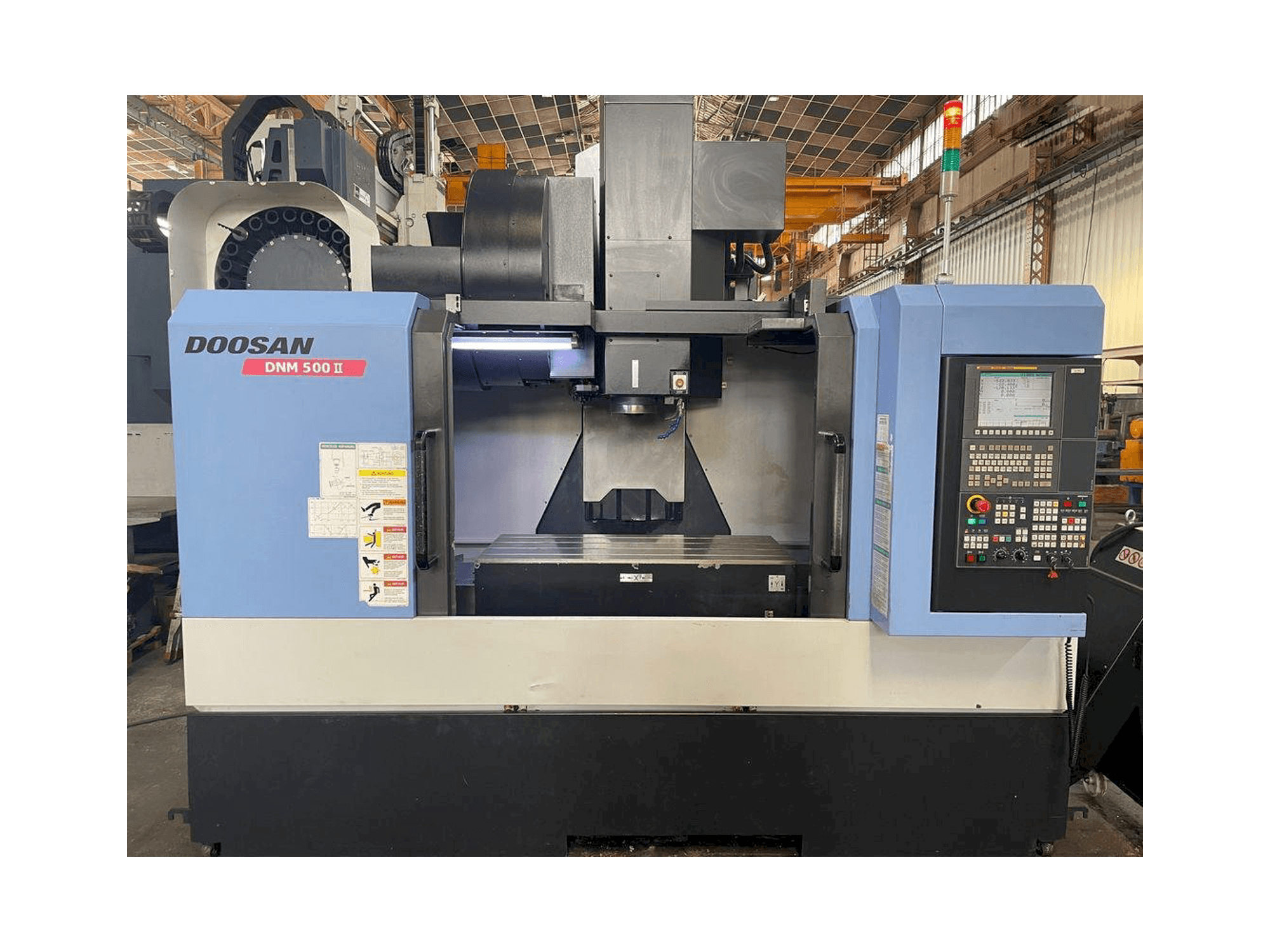

Front view of Doosan MYNX DNM 500 II machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN MYNX DNM 500 II

Photo Gallery

DOOSAN - MYNX DNM 500 IIFR-MIL-DOO-2014-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DOOSAN MYNX DNM 500 II Vertical Machining center

Show in original language

This DOOSAN MYNX DNM 500 II Vertical Machining center was manufactured in the year 2014. It is equipped with a Fanuc i Series control unit. The machine has a spindle speed of 12000 rpm.

Overview

brand: DOOSAN
year: 2014
MODEL: MYNX DNM 500 II
application type: Milling
Location: France
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN MYNX DNM 500 II

General Data

Measurements width: 3000 mm
Measurements depth: 2550 mm
Measurements height: 2740 mm
Machine weight: 6500 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 15 KW
Tool taper: BT 40

Movement

X-AXIS Movement: 1020 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 540 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 36 m/min

Table

Outer length: 1200 mm
Outer width: 540 mm
Table load: 800 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4th axis not included
- - 30 position tool changer
- - Watering center 20 bar
- - 4th axis preparation
- - Conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
