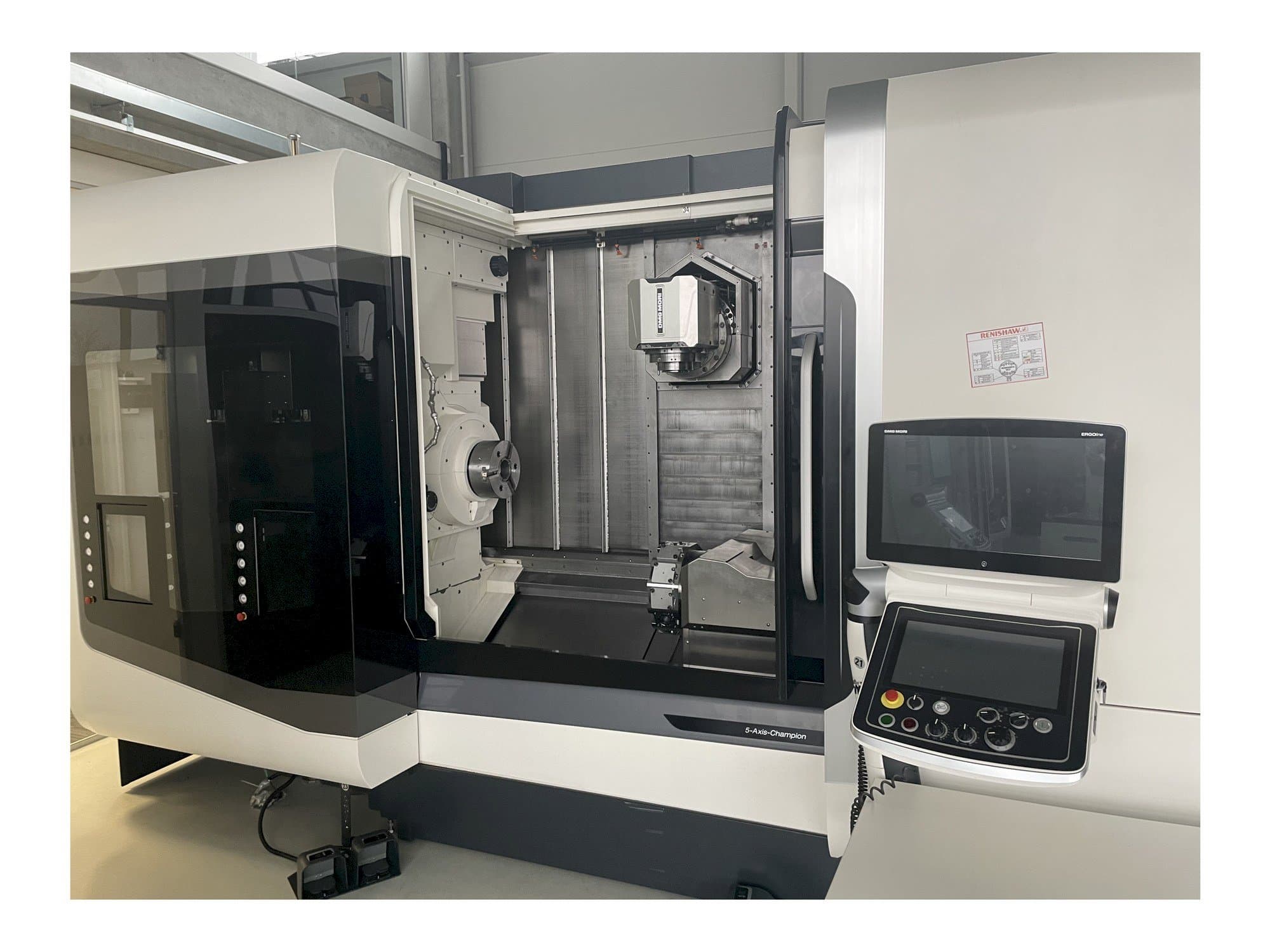

DMG MORI NTX 2500/1500 milling-turning machine

Show in original language

This DMG MORI NTX 2500/1500 milling turning machine was built in Japan. It is equipped with a DMG MORI ERGO line control unit. The machine has a spindle speed of 4000 rpm. This high-quality machine is immediately available.

Overview

brand: DMG MORI
year: 2020
MODEL: NTX 2500/1500
application type: Milling
Location: Czech Republic
machine type: Mill-Turn Centre

Technical Information - DMG MORI NTX 2500/1500

Dimensions

Machine Weight: 18160 kg

Movement

X-axis Travel: 675 mm
Y-axis Travel: 300 mm

Technical Specification

Spindle Speed: 4000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

3 years warranty for master spindle

Technical Machine Benefits

Tool spindle: 12000-20000 rpm
Machining diameter 80 bar
Max. Torque: 599/505/409 nm
Spindle bore diameter: φ91mm
Spindle 1: pass-through cylinder kit for kitagawa 10-inch pass-through chuck bb210a821
Torque: 116/89 nm (40% ed/cont)
Foot switch (double) for spindle 1 and 2
12 position lower tool head with tool drive
Tool storage 76 places (c6) cooling / chip evacuation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
