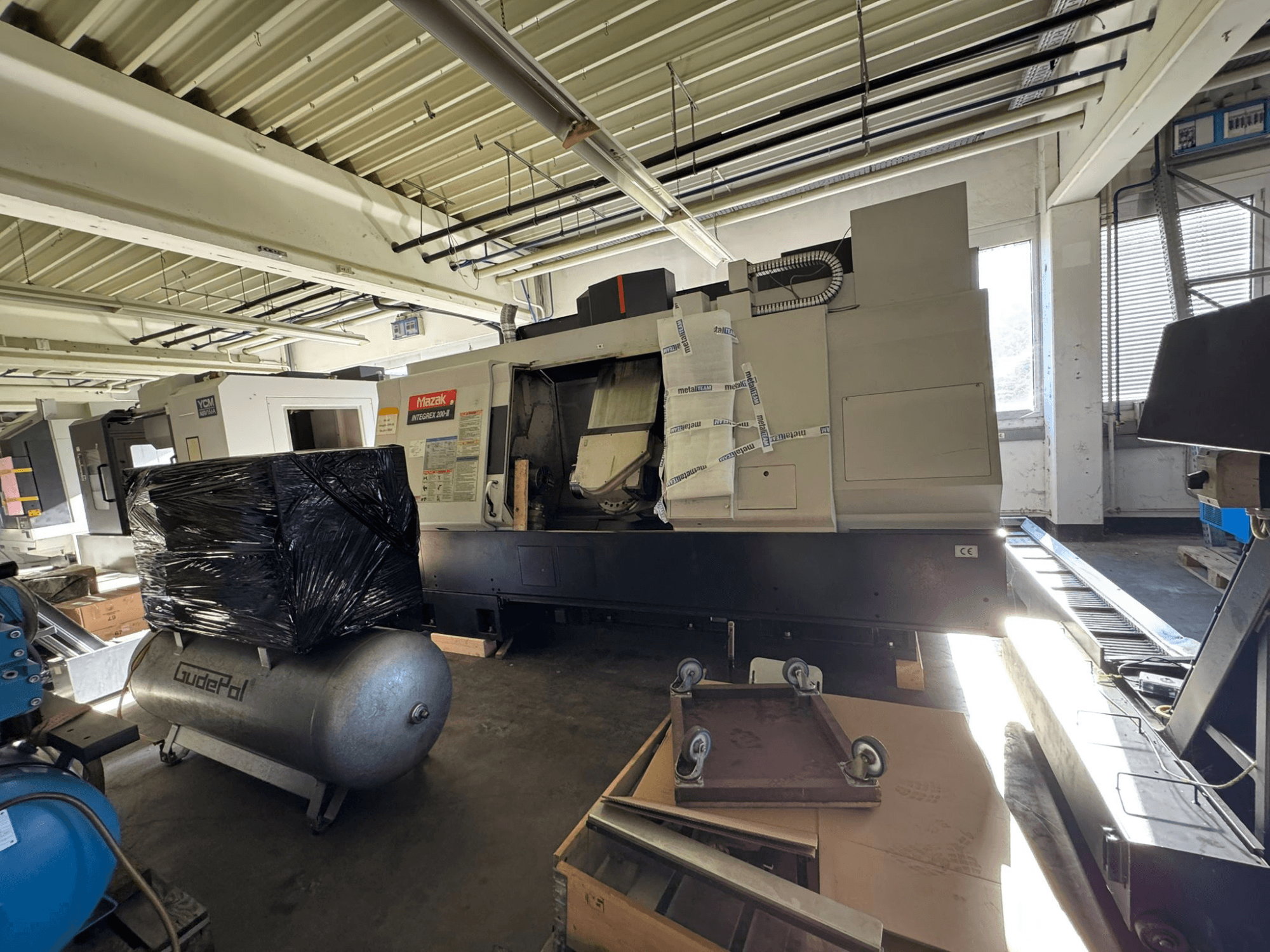

This 5-axis Mazak INTEGREX 200-3 was manufactured in 2004. It features a maximum turning diameter of 660 mm and a maximum turning length of 1045 mm. The machine is equipped with a main spindle speed of 5000 rpm and a milling spindle speed of up to 12000 rpm. If you are looking to get high-quality mill-turn capabilities, consider the Mazak INTEGREX 200-3 machine we have for sale. Contact us for further details.
Overview
- brand: Mazak
- year: 2004
- MODEL: INTEGREX 200-3
- application type: Milling
- Location: Germany
- machine type: Mill-Turn Centre
Technical Information - Mazak INTEGREX 200-3
Dimensions
- Machine Length: 3850 mm
- Machine Weight: 9200 kg
- Machine Width: 2100 mm
Movement
- Number of Axes: 5
- X-axis Travel: 580 mm
- Y-axis Travel: 160 mm
- Z-axis Travel: 1045 mm
Technical Specification
- Spindle Speed: 5000 RPM
- Tool Stations: 40
Additional Information
- Maximum Turning Diameter: 540-660 mm
- Maximum Swing Diameter Over Bed: 660 mm
- Maximum Turning Length: 1016-1045 mm
- Main Spindle Speed: 35-5000 rpm
- Milling Spindle Speed: up to 12000 rpm
- Tool Holder: Capto C6
- Machine Height: 2597 mm
- Main Circuit Voltage: 3AC 400V 50/60Hz
- Control Circuit Voltage: AC 100V / DC 24V
- Main Motor Current: Max 84 A (400 V)
- Rated Capacity: 50.0 kVA
- Oil Cooling Unit Model: Daikin (Weight 190 kg)
- Cooling Unit Capacity: Comp. 1.1 kW, Circulating Pump P1 0.4 kW, Circulating Pump P2 0.4 kW
- Refrigerant: R407C (0.83 kg)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
