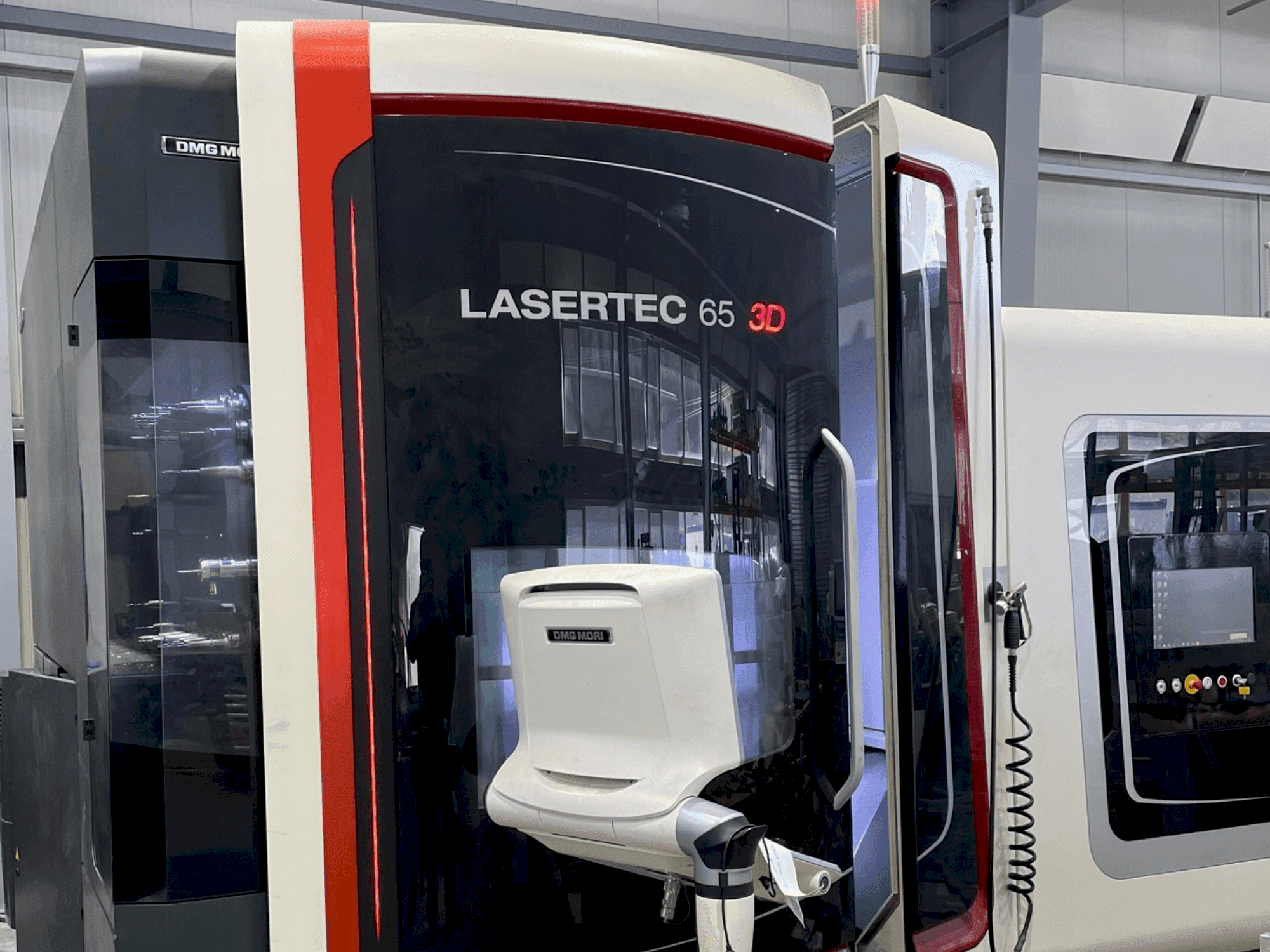

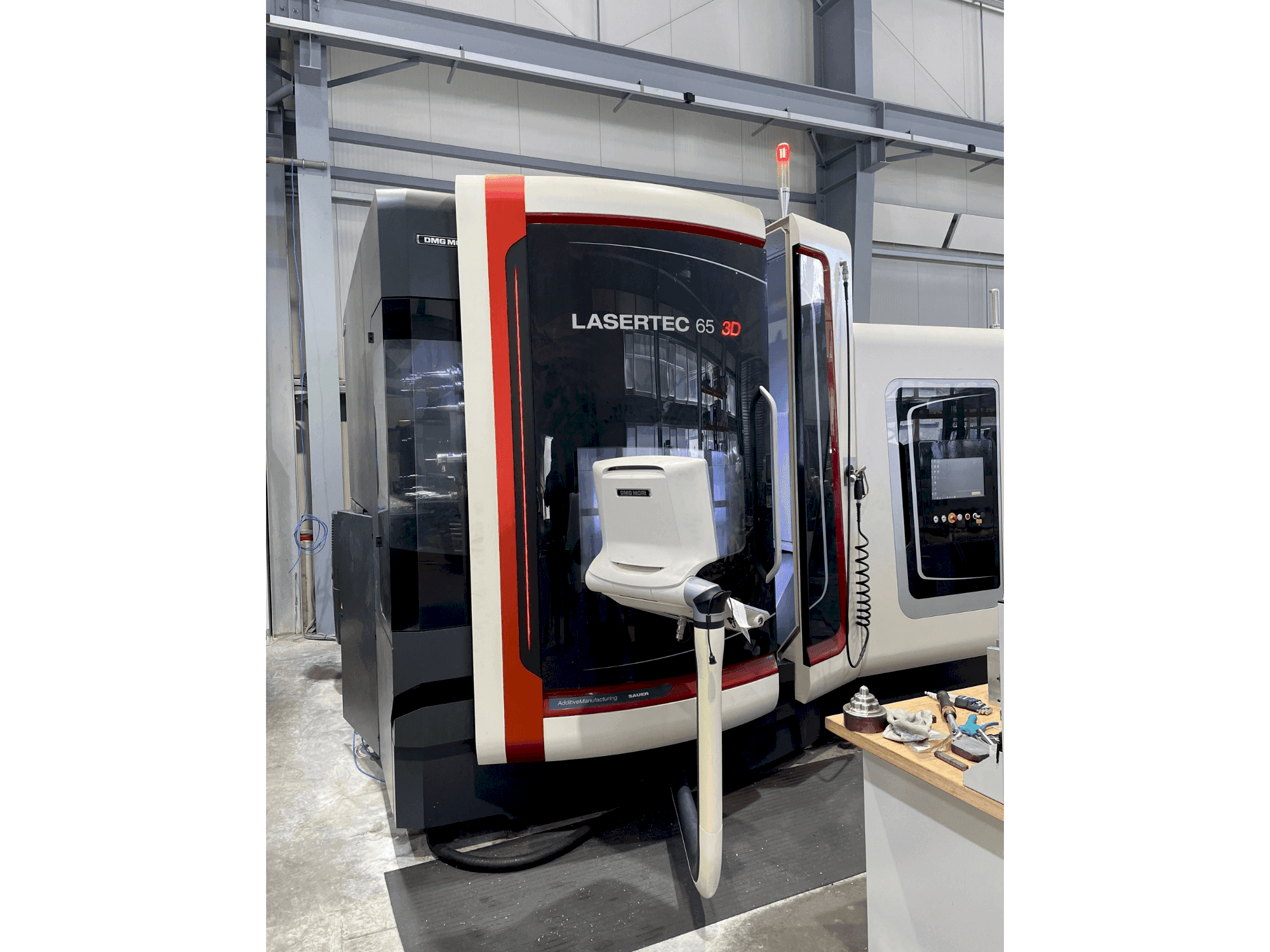

Front view of DMG MORI LASERTEC 65 3D Hybrid  machine

DMG MORI LASERTEC 65 3D Hybrid

DMG MORI - LASERTEC 65 3D Hybrid

2014

Rs. 47,062,250

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DMG MORI LASERTEC 65 3D Hybrid 5-axis precision machine for milling and laser machining was manufactured in the year 2014 in Germany. It is special for the ability to produce components using 3D Printing and to post-process them at the same time. Ideal for manufacturers who need a high-performance additive manufacturing solution of metallic 3D components. The machine features a fixed integration of the laser head in the headstock for greater installation space and more performance. In addition it offers 5-axis material application via coaxial nozzle for uniform powder distribution regardless of the laser build-up direction. It is the ideal dedicated solution for prototypes, small series, repair and coating. This LASERTEC 65 3D is equipped with an integrated SK 40 motor spindle with spindle speed up to 14,000 1/min. In addition it operates with a fiber-guided diode laser of 2.5 kW laser power. Next to internal coolant supply (IKZ) it comes with Renishaw measuring probe and Blum tool measurement option. Furthermore it is appreciated for its generously sized work area that is easily accessible, along with travel dimensions of 650 × 650 × 560 mm (X / Y / Z). It is a supremely adaptable 5-axis machine suitable for a wide array of laser and milling tasks, delivering consistently high-quality results without compromise.

Overview

  • brand: DMG MORI
  • year: 2014
  • MODEL: LASERTEC 65 3D Hybrid
  • production hours: 4311
  • application type: Milling
  • Location: Austria
  • machine type: Machining centers (universal)
  • availability: Immediately
  • control unit brand: DMG MORI
  • GINDUMAC ID: AT-MIL-DMG-2014-00001

Technical Information

General Data

  • Measurements width: 1200 mm
  • Measurements depth: 1050 mm
  • Measurements height: 2000 mm

Control Unit

  • Brand: DMG MORI
  • Model: CELOS (SIEMENS 840D sl)
  • Interface: 21.5“ ERGOline Control
  • CNC main language: German (English, Italian)
  • CNC language customizable: Yes

Main drive

  • Spindle speed range: 14000 1/min
  • Spindle motor power: 14 kW (100% ED)
  • Tool taper: HSK64
  • Laserpower: 2.5 KW
  • Number of axis: 5

Movement

  • X-AXIS Movement: 650 mm
  • Y-AXIS Movement: 650 mm
  • Z-AXIS Movement: 560 mm

Table

  • Outer length: 800 mm
  • Outer width: 650 mm

Tools

  • Slots in storage: 60
  • Type of tool holder: HSK64

Media

  • Oil water separator: Yes
  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional equipment

    • - Inner cooling system 40 bar, 23 l/min
    • - Scraper belt chip conveyor with coolant system 600 liters, paper belt filter
    • - Infrared measuring probe Renishaw OMP 60 Version for SK 40 (the probe is automatically inserted into the work spindle from the tool magazine)
    • - Rinsing gun with pump 2 bar/40 l/min
    • - Oil/emulsion mist separator
    • - Tool measurement in the Blum Laser work area
    • - MPC Machine Protection Control & 3D quickSET
    • - Surcharge for powder feeder Twin System
    • - Suction unit with secondary filter stage
    • - electronic handwheel Siemens 840D

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Vertical headstock
        • - Tool changing device
        • - Double gripper
        • - Nc swivel rotary table
        • - Table top c-axis: d 650 mm, integrated in fixed table 800 mm x 650 mm
        • - Rotation range c-axis: 360° swivel range a-axis: +120°/-120
      • Qualitative Machine Benefits:
        • - Automated insertion and removal of the laser processing head for laser application or milling fiber-guided diode laser with 2,500 watts of power
        • - Processing optics with focusing lens
        • - Cooling unit blowing air through the center of the spindle
        • - Large work area for workpieces up to ø 500 mm, 350 mm height and max. 600 kg
        • - Accessibility and ergonomics: large door opening, workpiece loading from the front and complete accessibility
        • - Small footprint with 12 m2 installation area
        • - Safety package for power failure

      Extra information

      • - 4,311h (Spindle Hours) // 2,339h (Laser Beam Hours) // Documentation available

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
