DMG MORI CLX450

Photo Gallery

DMG - MORI CLX450PL-TUR-DMG-2017-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG MORI CLX450 Turning

Show in original language

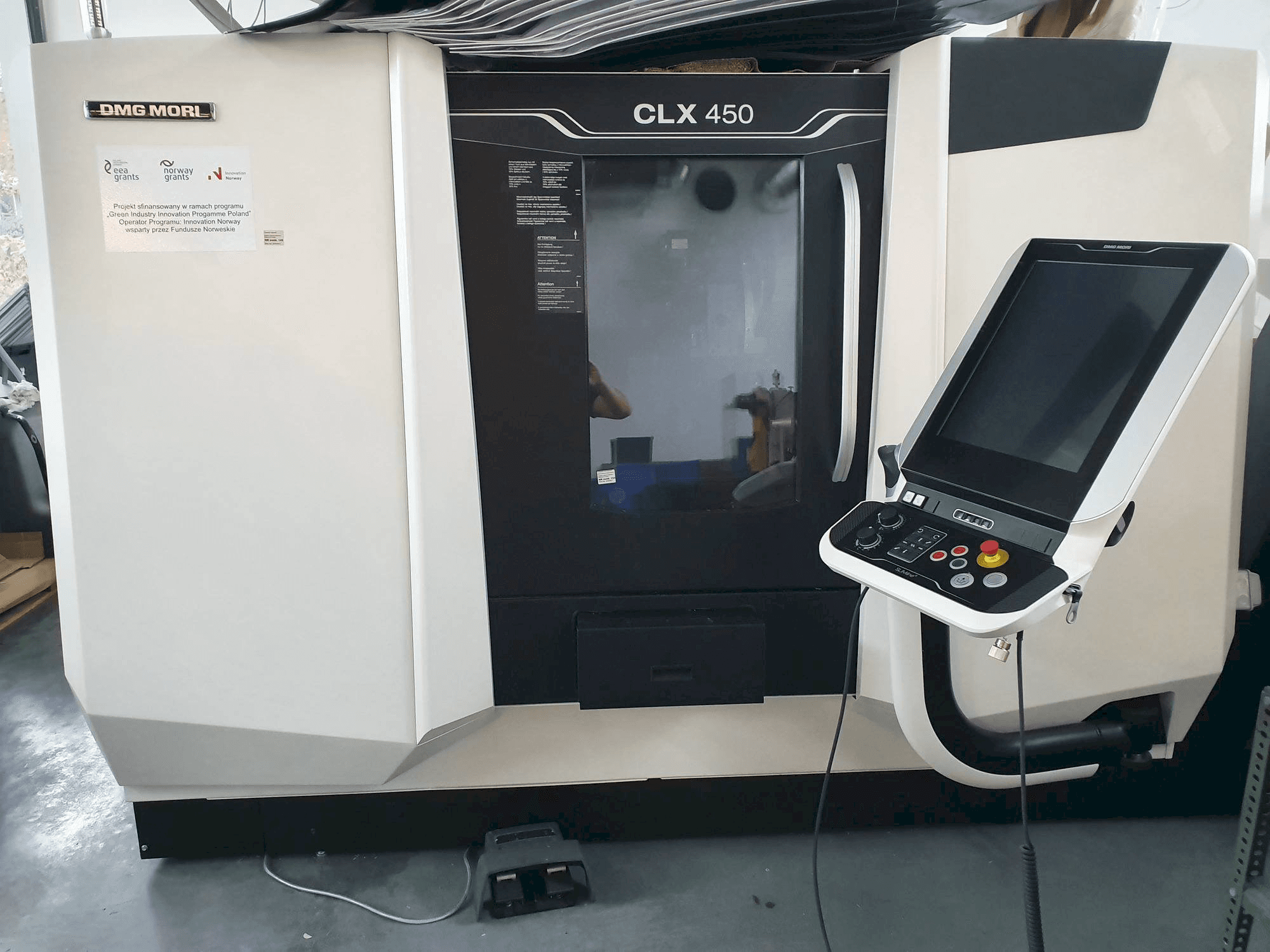

This DMG MORI CLX450 Lathe machine was manufactured in the year 2017. The machine has a total of 100 working hours (it was used for prototypes). This 4 axis machine is capable of working with a spindle speed up to 4000 rpm. It includes a VDI40 tool holder and a chip tray.

Overview

brand: DMG
year: 2017
MODEL: MORI CLX450
production hours: 100
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - DMG MORI CLX450

General Data

Measurements width: 4180 mm
Measurements depth: 2660 mm
Measurements height: 1932 mm
Machine weight: 63000 kg

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 0 - 4000 rpm
Spindle bore: 91 mm
Number of axis: 4

Movement

X-AXIS Movement: 267.5 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Rapid traverse: 25.5 m/min
Z-AXIS Movement: 600 mm
Z-AXIS Rapid traverse: 30 m/min

Media

Main electronic connection: 400V 50/60 Hz
Power consumption: 31,5 kVA

Additional equipment

- Tool holders VDI40
- Chip tray

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Y axis: +/- 60 mm
- - Hydraulic tailstock: driven with m functions
- - Automatic tailstock travel: 500 mm
- - Max. Swing diameter: 700 mm
- - Max. Turning diameter: 315 mm
- - Max. Turning length in z axis: 550 mm
- - Max. Bar capacity diameter: 80 mm
- - Torque (100% dc): 283 nm
- - Spindle diameter in the front bearing: 130 mm
- - Mounting bracket: three-jaw hydraulic
Qualitative Machine Benefits:
- - Chuck d254 mm
- - Driven tool speed: 4000 rpm
- - Like a brand new
- - Full documentation in polish, ready for tests.
- - Samchully mh-210

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
