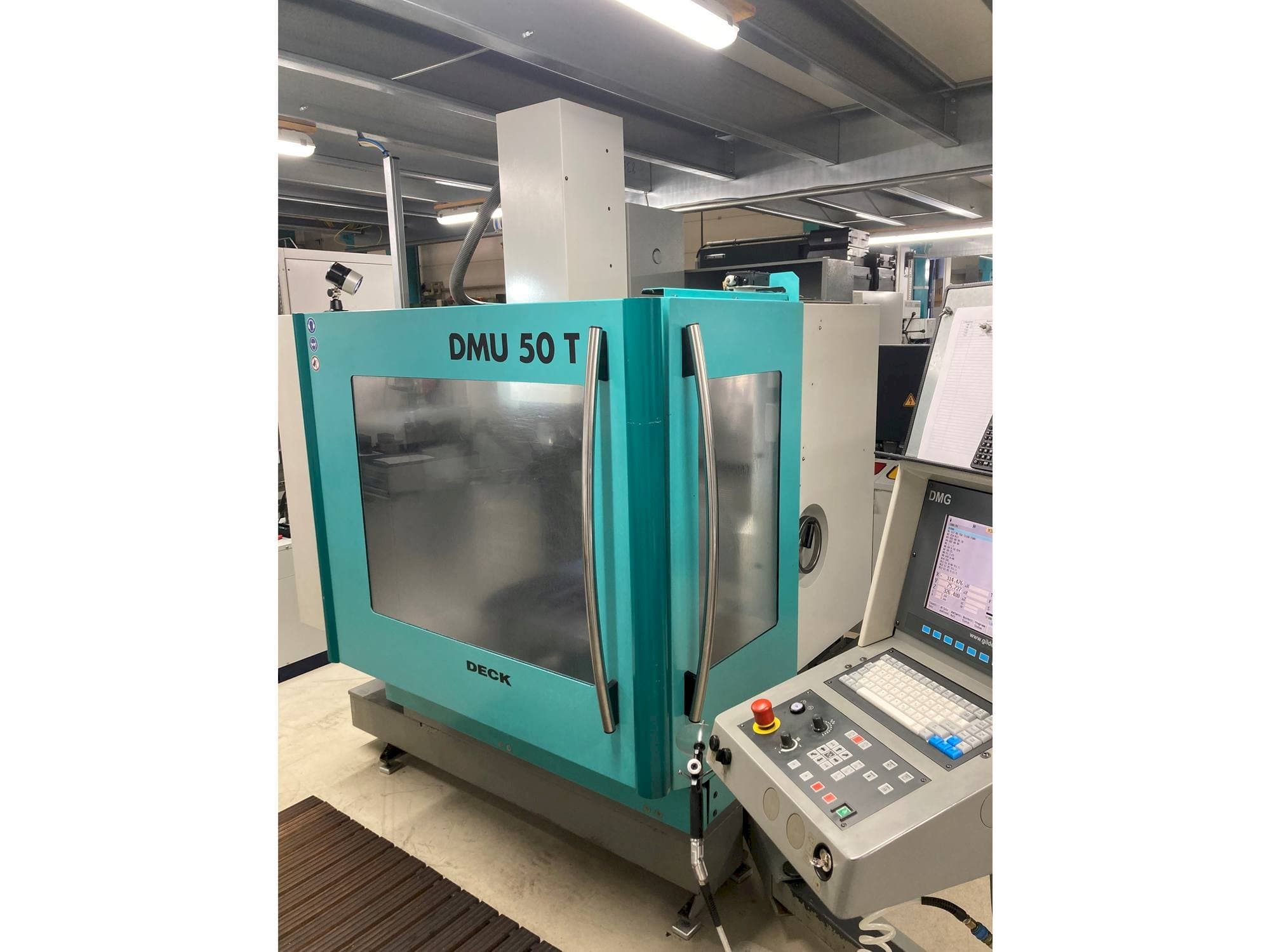

DMG DMU 50 T Vertical Machining center

Show in original language

This DMG DMU 50 T Vertical Machining center was manufactured in the year 1997 in Germany. It is equipped with a Heidenhain MillPlus control unit. The machine has a spindle speed of 9000 rpm.

Overview

brand: DMG
year: 1997
MODEL: DMU 50 T
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG DMU 50 T

General Data

Measurements width: 2000 mm
Measurements depth: 1520 mm
Measurements height: 2140 mm
Machine weight: 3000 kg

Control Unit

Brand: HEIDENHAIN
Model: MillPlus

Main drive

Spindle speed range: 20-9000 1/MIN

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Pull stud iso 7388 type b (can be easily converted by dmg)
The machine has a mechanical c- and b-axis with display on the screen
Software was updated from 2019 to the latest available version
In 2019 the machine was retrofitted for lan connection, the machine can be connected/connected to a network for external program transfer.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
