DMG DMU 50 Eco vertical machine center

Show in original language

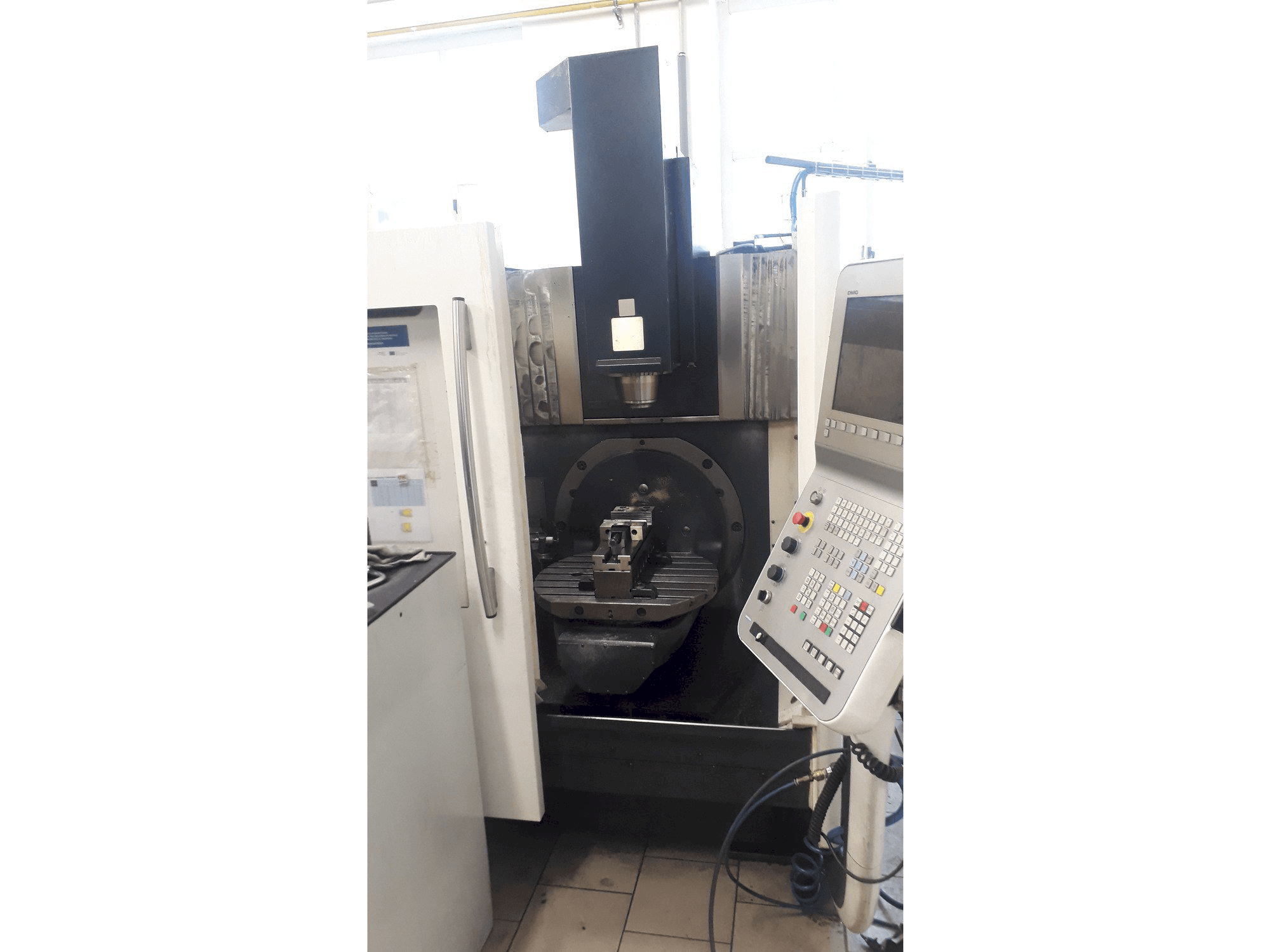

This DMG DMU 50 Eco vertical machine center was made in 2012 in Poland and has 32606 hours, of which 11997 are spindle hours. It is equipped with a Siemens 810D control unit and has 3+2 controlled axis. The machine has a spindle speed of 8000 rpm and is in very good condition. It comes with a chip conveyor.

Overview

brand: DMG
year: 2012
MODEL: DMU 50 ECO
production hours: 32606
application type: Milling
Location: Czech Republic
machine type: Machining centers (vertical)
availability: Sold
control unit brand: Siemens

Technical Information - DMG DMU 50 ECO

General Data

Measurements width: 4300 mm
Measurements depth: 2200 mm
Measurements height: 2615 mm
Machine weight: 4000 kg

Control Unit

Brand: Siemens
Model: 810D

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN
Spindle motor power: 13 kW
Number of axis: 3+2

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 400 mm
B-AXIS Movement: -5 / +110 DEGREES MM
C-AXIS Movement: 360 DEGREES (0.001 DEGREE INCREMENT) MM

Table

Outer length: 630 mm
Outer width: 500 mm
Table load: 200 kg

Tools

Type of tool holder: SK 40

Media

Power consumption: 17 kva
Chip conveyor: Yes

Additional equipment

- Chip Conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid feedrates: 12m/min
- - Tool setter
- - Table b-axis -5/+110 degrees
- - Table c-axis 360 degrees
- - Electronic handwheel
- - There is no cooling through spindle
Qualitative Machine Benefits:
- - Very good condition
- - 2022 - new z-axis screw
- - 2018 - new spindle installed when the machine had ca 8000 hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
