DMG DMC 63 V
DMG - DMC 63 V
2001
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Deckel Maho Gildemeister DMC 63 V Vertical Machining Center

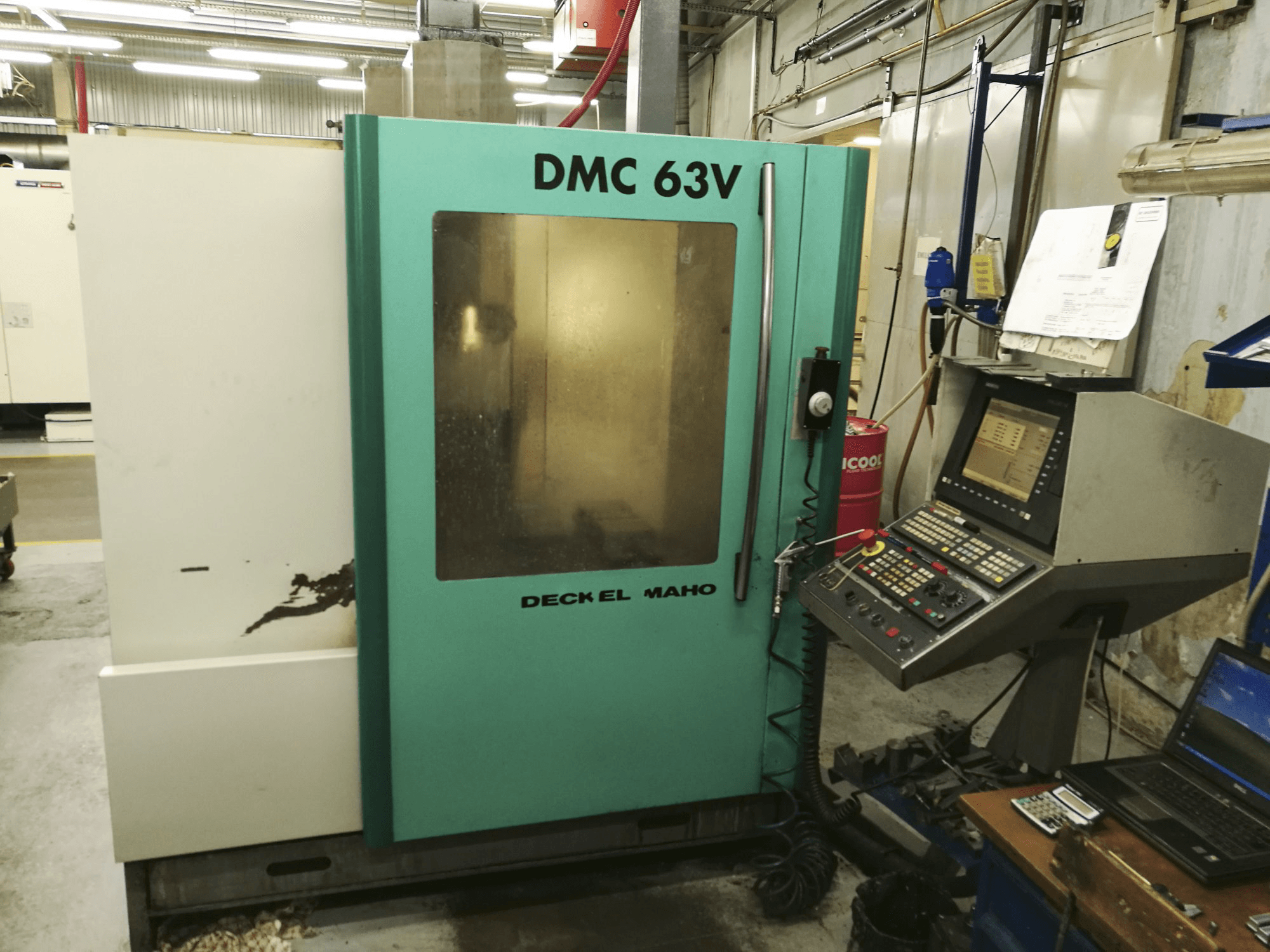

This DMG DMC 63 V Vertical Machining Center from 2001 was manufactured in Germany and has a working record of 32683 production hours. This machine is operated through a SIEMENS SINUMERIK 810D Control unit and has mainly worked with steel during the past.
Overview
- brand: DMG
- year: 2001
- MODEL: DMC 63 V
- production hours: 32683
- application type: Milling
- Location: Lithuania
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: SIEMENS
- GINDUMAC ID: LT-MIL-DEC-2001-00001
Technical Information
General Data
- Measurements width: 1860 mm
- Measurements depth: 2410 mm
- Measurements height: 2630 mm
- Machine weight: 4500 kg
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 810D
Main drive
- Number of spindles: 1
- Spindle speed range: 8000 1/min
Movement
- X-AXIS Movement: 630 mm
- Y-AXIS Movement: 500 mm
- Z-AXIS Movement: 500 mm
Workpiece
- Workpiece x: 800 mm
- Workpiece y: 500 mm
- Workpiece weight: 500 kg
Table
- Outer length: 800 mm
- Outer width: 500 mm
Tools
- Max weight: 7 kg
- Max tool diameter: 80 mm
- Max tool length: 300 mm
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 24 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
