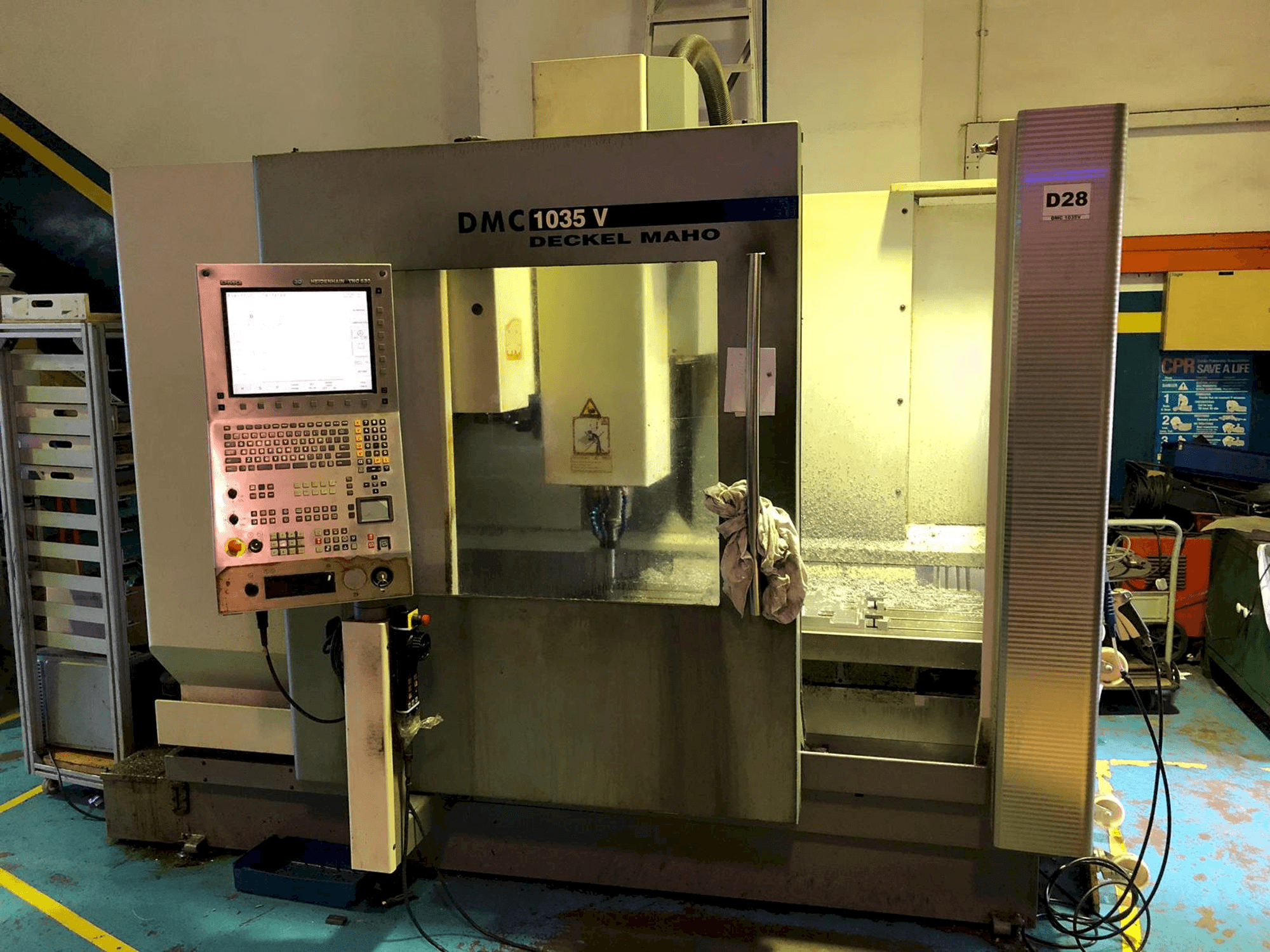

DMG DMC 1035V Vertical Machining Center

Show in original language

This DMG DMC 1035V Vertical Machining Center was produced in Germany in the year 2005. It is equipped with a Heidenhain iTNC 530 control unit. This machine can work with a spindle speed range 20 - 10000 rpm.

Overview

brand: DMG
year: 2005
MODEL: DMC 1035V
application type: Milling
Location: Singapore
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG DMC 1035V

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Depth: 4000 mm
Machine Height: 2500 mm
Machine Weight: 4500 kg
Table Length: 1200 mm
Table Load: 1000 kg

Movement

X-axis Travel: 1035 mm
Y-axis Travel: 560 mm
Z-axis Travel: 510 mm

Technical Specification

Spindle Power: 13 kW
Spindle Speed: 10000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Max. Torque 83 / 57 nm
Tool taper sk 40
Table height over floor 720 mm
Number of tool positions 20 pos
Feed speeds 24. 000 mm/min
Rapid traverse 30 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
