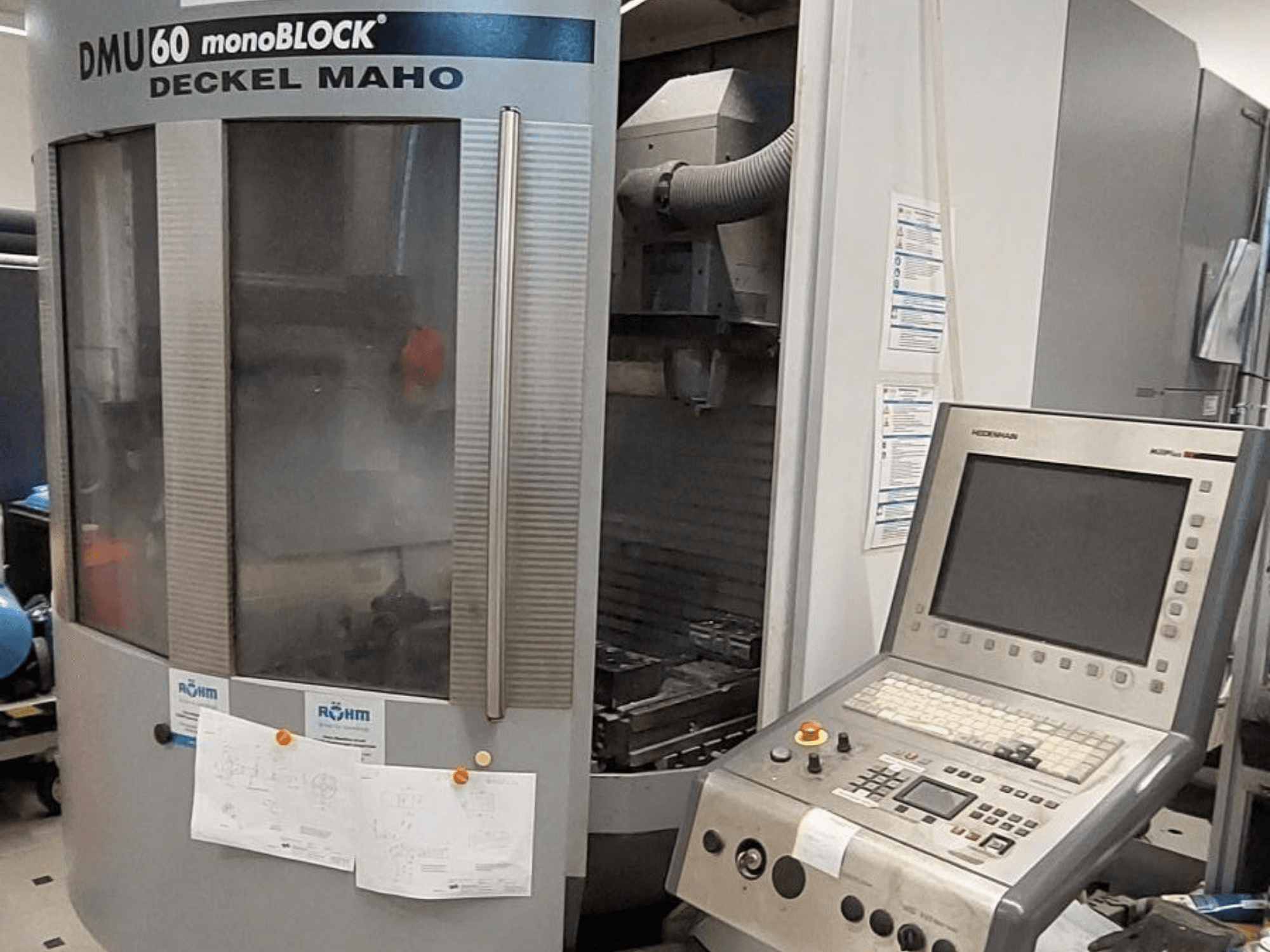

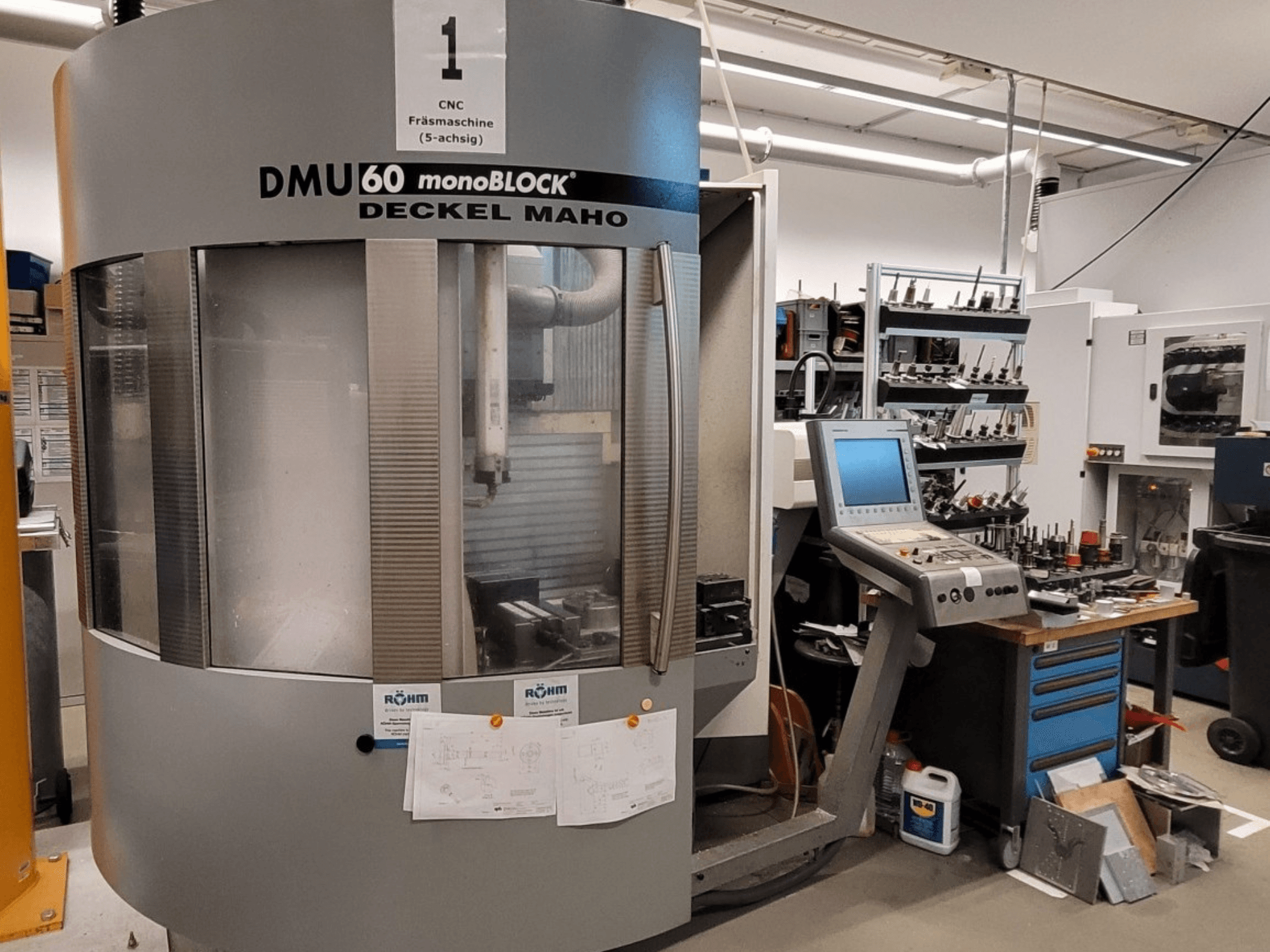

DMG DECKEL MAHO - DMU 60 monoBlockDE-MIL-DMG-2005-00007
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG DMU 60 Machining Center For Sale | gindumac.com
This 5-axis DMG DMU 60 was manufactured in 2005. It features a B-axis and rotary table attachment, 3D probe, and MillPlus IT CNC control system. With 5873 operating hours and 1397 spindle hours, it also includes a minimum quantity lubrication system. If you are looking to get high-quality milling capabilities, consider the DMG DMU 60 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: DMG DECKEL MAHO
- year: 2005
- MODEL: DMU 60 monoBlock
- production hours: 5873
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG DECKEL MAHO DMU 60 monoBlock
Control Unit
- Control Brand: HEIDENHAIN
Dimensions
- Machine Height: 2210 mm
- Machine Length: 3500 mm
- Machine Weight: 7500 kg
- Table Load: 4600 kg
Movement
- Number of Axes: 5
Additional Information
Axis configuration: 5-axis, 3/2 with B-axis
CNC control: MillPlus IT (Heidenhain successor Philips 532 DIN)
Operating hours: 5,873
Spindle hours: 1,397
Additional equipment
Rotary table attachment
3D probe
Minimum quantity lubrication system
Media distributor
Nozzle body (optional)
AC servomotors with digital technology for X, Y, and Z axesFlow rate X, Y, and Z axes infinitely programmable mm/min 20 - 10,000
Rapid traverse X and Y axes m/min 26
Z axis m/min 20
Setup speed X, Y, and Z axes mm/min 20-2,000
Distance measuring system
Resolution X, Y, and Z axes 0.001 mm
Input precision X, Y, and Z axes 0.001 mm
Position tolerance X, Y, and Z axes 0.010 mm
Working range
Travel
X axis 630 mm
Y axis 560 mm
Z axis 560 mm
Machine with fixed table and tool changer approx. 6,500 kg
Machine with maximum weight capacity for workpiece, tools, and operating fluids, coolant system: 7500 kg.
Maximum load capacity at the machine base: 4600 kg
Machine supports: Number x Type: 3 x GP37+TK 8
Transport weight
Machine with transport platform: approx. 6700 kg
Machine with crate: approx. 7000 kg
Transport dimensions approx. (L x W x H): 3.50 m x 2.70 m x 2.21 m
Pick-up by 12 December 2025 at the latest
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
