➤ Used DMG DECKEL MAHO DMU 60 evo For Sale | gindumac.com

Show in original language

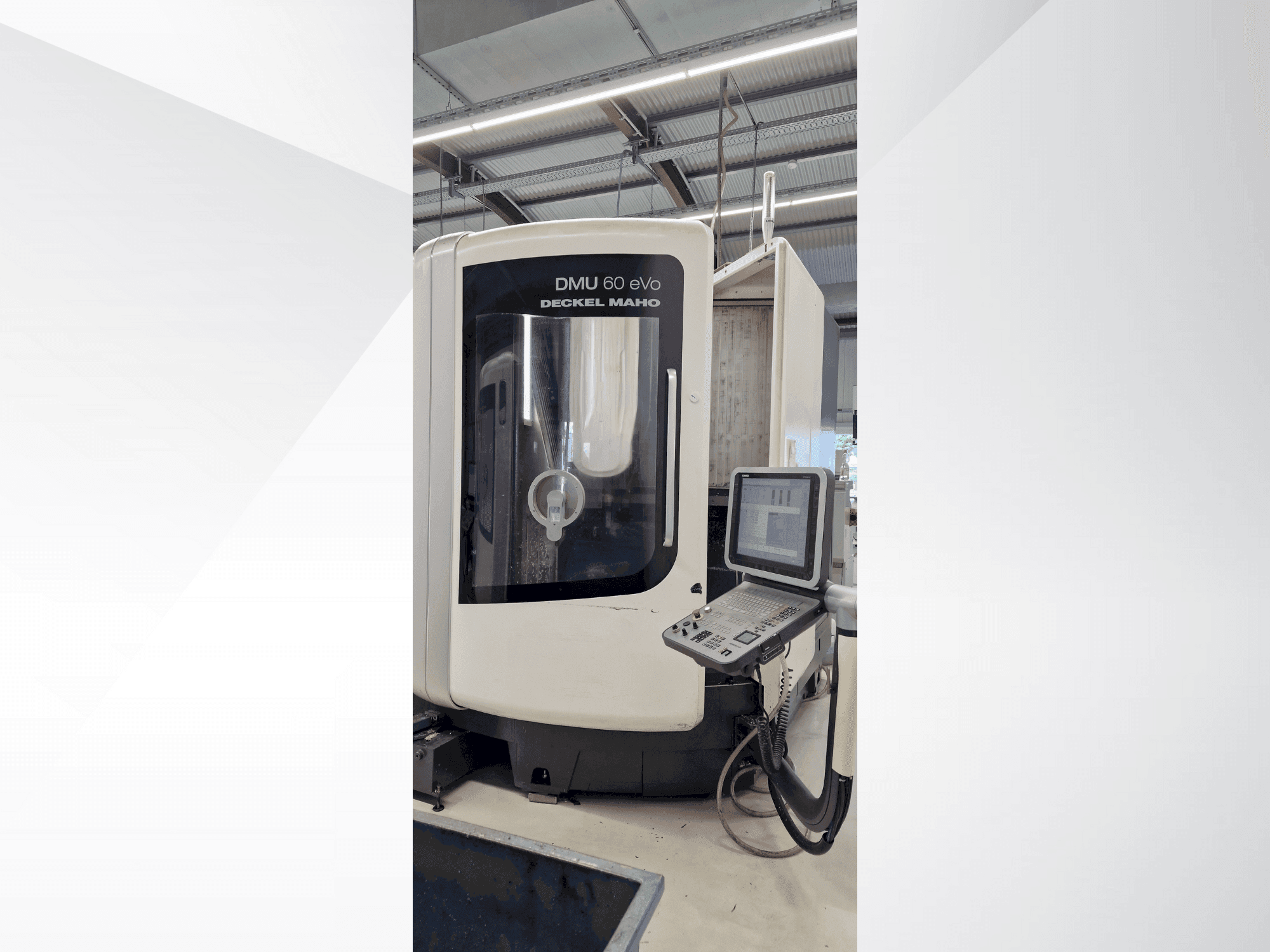

This 5-axis DMG DECKEL MAHO DMU 60 evo was manufactured in 2011. It features a NC swivel rotary table, motor spindle with a speed range up to 14,000 rpm, and an internal coolant supply capable of 40 bar. Ideal for complex machining tasks, it includes a laser tool measurement system, infrared probe, and a scraper-belt chip conveyor. Consider the opportunity to buy this DMG DECKEL MAHO DMU 60 evo universal machining centre. Contact us for more information about this machine.

Overview

brand: DMG DECKEL MAHO
year: 2011
MODEL: DMU 60 evo
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG DECKEL MAHO DMU 60 evo

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530

Movement

X-AXIS Movement: 600 MM
Y-AXIS Movement: 500 MM
Z-AXIS Movement: 500 MM

Additional equipment

- Electronic handwheel / Operating mode 4 (process monitoring during production)/ 4-color signal light / Various tool holders and clamping devices

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Nc swivel rotary table (b+c axes) / load capacity: 400 kg / clamping area: 600x500 mm
- - 30-position chain magazine
- - Speed range: 20–14000 rpm / motor spindle power: 18. 9/14 kw (40/100% duty cycle)/ chuck type: hsk-a63
- - Laser tool measurement for length and diameter / infrared probe (renishaw pp60 optical)
- - Internal coolant supply (ikz) with paper belt filter: 40 bar/23 l/min/600-liter tank / scraper-belt chip conveyor / air blast through the spindle center / flushing gun for chip flushing
- - 3d quickset (toolkit for checking and correcting kinematic accuracy) / screen text in german / documentation in german

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
