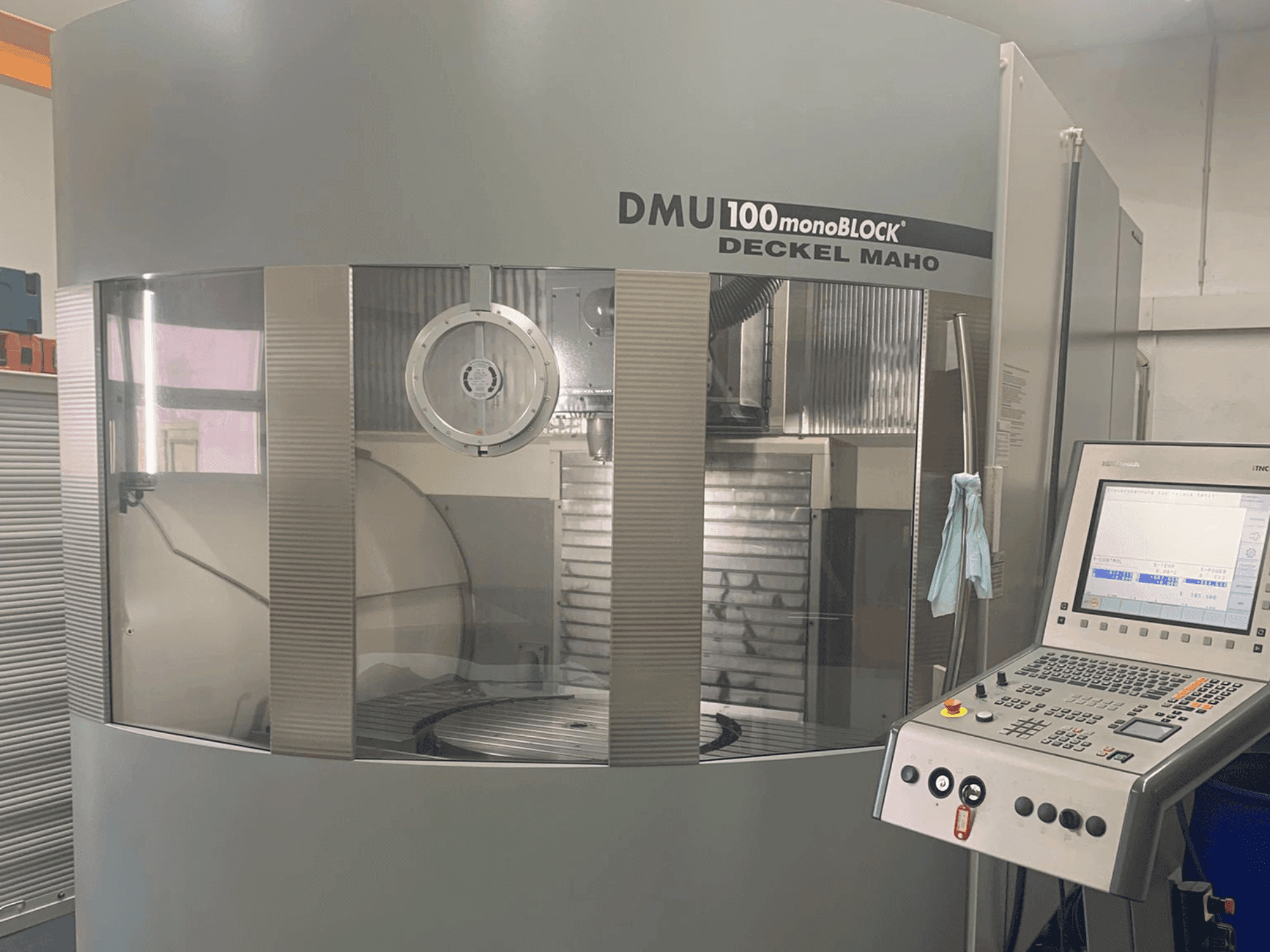

DMG - DECKEL MAHO 100T MonoblockDE-MIL-DMG-2005-00003

Machine Benefits

Technical Machine Benefits

• Tool changer: pick-up system with 32 magazine positions, sk 40
• The machine comes with a lot of equipment.

Extra Information

Table Fixed Table: 1500 mm x 800 mm T-slots: 1x Guide Slot: 14 H7 (center) 10x Chip Slots: 14 H12 T-slot Spacing: 63 mm Permissible Table Load: 800 kg NC Rotary Table (Integrated): Diameter: 800 mm Length: 1500 mm Additional Equipment Milling Head: Manual swivel milling head Optional: Controlled NC swivel milling head (B-axis) with hydraulic clamping Spindle Offset: 100 mm Swivel Range: -120° / +30° X-axis travel range reduced by 100 mm Measuring Probe & Control: Measuring Probe: Heidenhain TS 641 (infrared) Control: Heidenhain iTNC 530 with electronic handwheel Operating Mode 4: "Process Monitoring in Production" Chip and Coolant Management: Chip Conveyor Internal Cooling through Spindle Center (AD form) Production Package: 40 bar / 23 l/min (theoretical pump capacity) Tank: 600 l Paper Belt Filter Rotating Viewing Window Chip Flushing Integrated in Work Door Flushing Gun with Pump: 1 bar / 40 l/min Cooling Device for Blown Air through Spindle Center, Selectable via M Function
