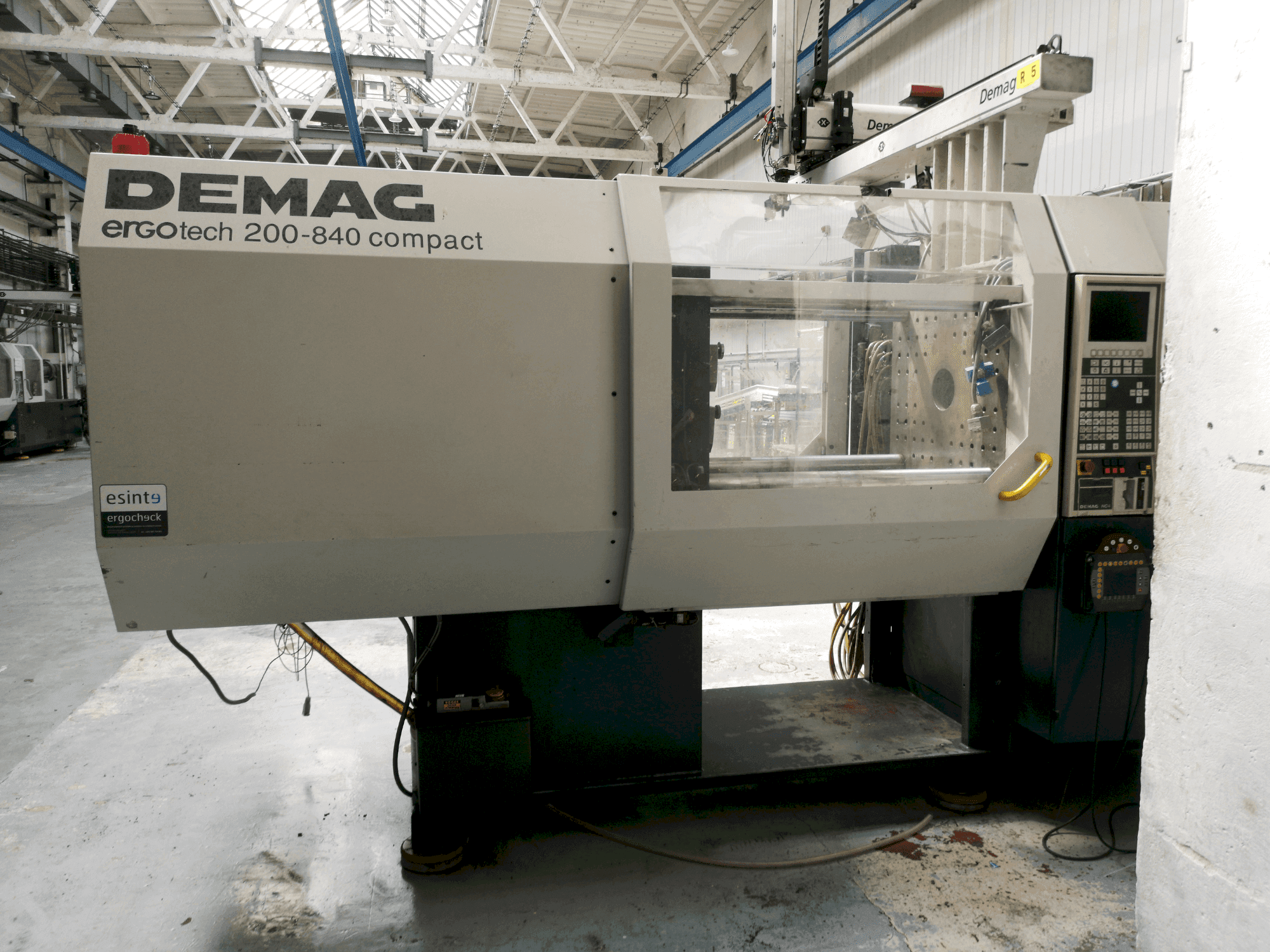

Front view of DEMAG Ergotech 200-840 Compact (1998)  machine

DEMAG - Ergotech 200-840 CompactCZ-INJ-DEM-1998-00001

Rs. 806,100
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DEMAG Ergotech 200-840 Compact was manufactured in 1998. A robust injection moulding machine with a clamping force of 2000 kN and a screw diameter of 45 mm. It features a DEMAG NC4 control system and includes a Wittmann robot. Ideal for precision molding, the machine we have for sale offers a shot weight of 326 g/PS and an injection pressure of 2400 bar. For more information about this injection moulding machine, please reach out to us.

Overview

  • brand: DEMAG
  • year: 1998
  • MODEL: Ergotech 200-840 Compact
  • application type: Injection Moulding
  • Location: Czech Republic
  • machine type: Injection Moulding Machine
  • availability: Immediately
  • control unit brand: DEMAG

Technical Information - DEMAG Ergotech 200-840 Compact

General Data

  • Measurements width: 1700 mm
  • Measurements depth: 5700 mm
  • Measurements height: 2100 mm
  • Machine weight: 10000 kg

Control Unit

  • Brand: DEMAG
  • Model: NC4

Injection Unit

  • Screw diameter: 45 mm
  • Shot weight: 326 g/PS
  • Stroke volume: 358 cm³
  • Injection pressure: 2400 bar

Clamping unit

  • Clamping force: 2000 KN
  • Opening stroke: 575 mm
  • Max open daylight: 1235 mm
  • Distance between bars: 560 mm
  • Mould height min: 310 mm
  • Size of mold platens: 830 mm
  • Ejector stroke: 180 mm

Media

  • Main electronic connection: 400 V

    Additional equipment

    • - Robot Wittmann

    Additional Information

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
