➤ Used DEMAG 420/810 - 2300 (2002) For Sale | gindumac.com

Show in original language

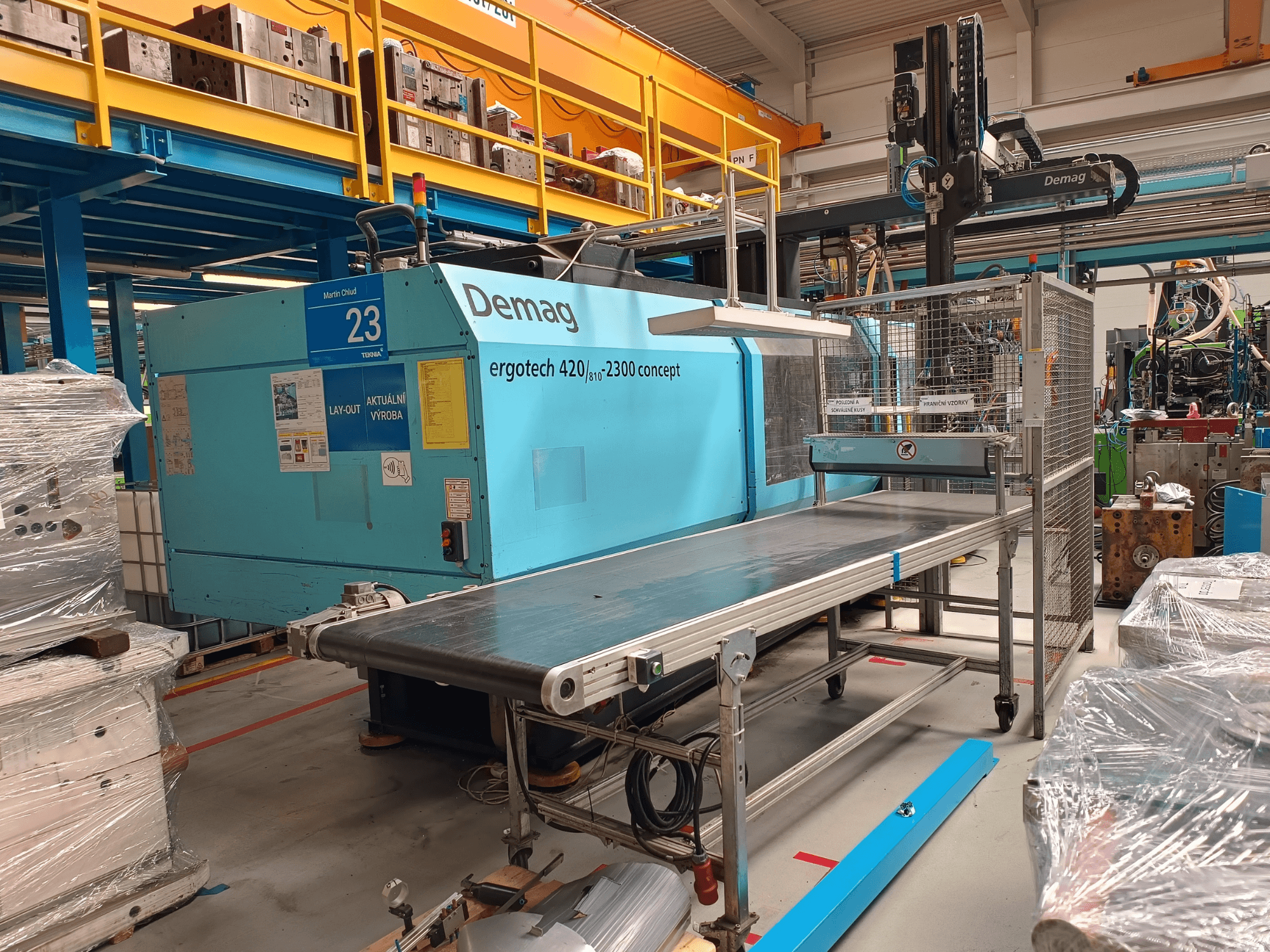

Hydraulic injection moulding machine manufactured in 2002. This DEMAG 420/810 - 2300 features a clamping force of 420 tons and a maximum mold height of 1530 mm. It has a screw diameter of 70 mm and a shot volume of 1090 cm³. If you are looking to get high-quality injection moulding capabilities, consider the DEMAG 420/810 - 2300 machine we have for sale. Contact us for further details.

Overview

brand: DEMAG
year: 2002
MODEL: 420/810 - 2300 (2002)
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine

Technical Information - DEMAG 420/810 - 2300 (2002)

Technical Specification

Clamping Force: 4200 kN
Screw Diameter: 70 mm

Additional Information

Tie bar spacing (W × H): 810 × 710 mm
Magnetic clamping: No
Min. platen size (W × H): 380
Min. mold height: 820 mm
Max. mold height: 1530 mm
Max. distance between platens: 1530
Max. weight of moving mold half: 2200 kg
Centering ring diameter/height: 160 × 15
Sprue bushing radius: R19
Ejector coupling thread diameter: M24
Shot volume: 1090 cm³
Hot runners: 8
Cascades air (number): 6
Cascades hydraulics (number): 6
Hydraulic core pulls: 2
Capacity oil fillings: 730
Power supply: 217 A
Power input: 127.5 kW

Additional equipment

Robot: Demag, year of manufacture 2002

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
