DELTA LF-350
DELTA - LF-350
1977
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DELTA LF-350 Grinding Machine

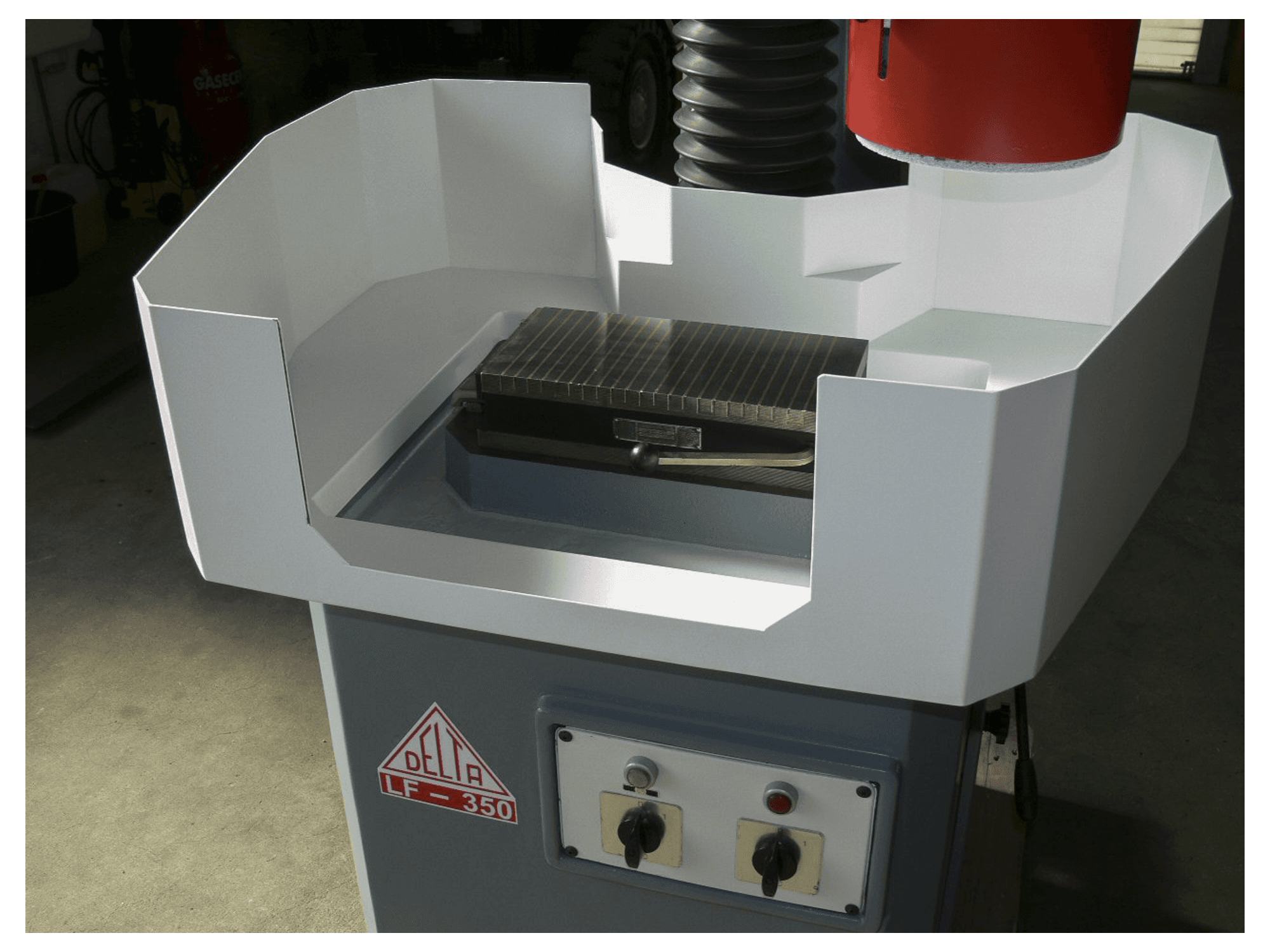

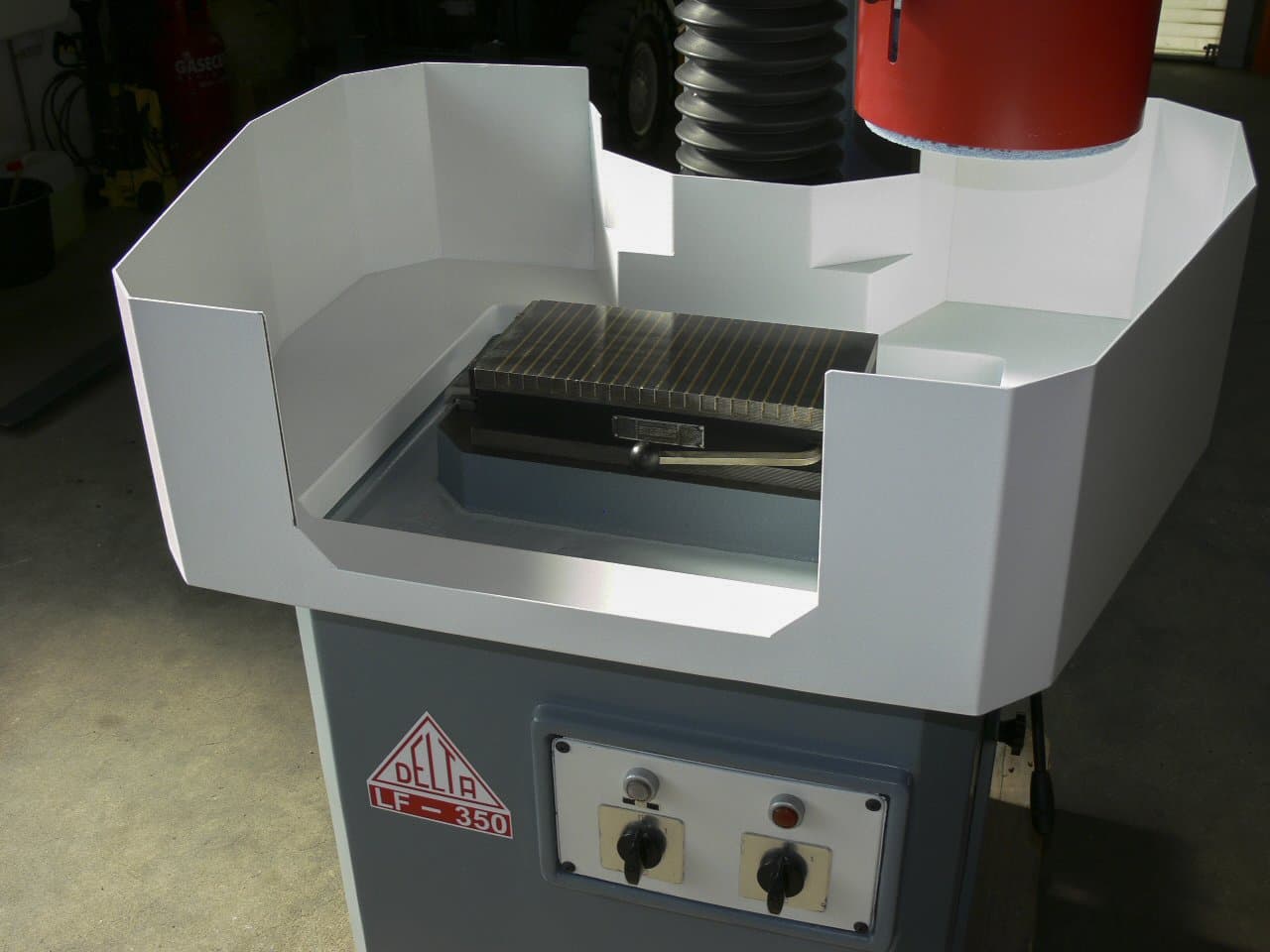

This DELTA LF-350 Grinding Machine was manufactured in 1977 in Germany. This compact machine comes with a complementary grinding wheel, a magnetic table and a splash guard as additional equipment.
Overview
- brand: DELTA
- year: 1977
- MODEL: LF-350
- application type: Grinding
- Location: Germany
- machine type: Grinding machines
- availability: Sold
- control unit brand: DELTA
- GINDUMAC ID: DE-GRI-DEL-1977-00001
Technical Information
General Data
- Measurements width: 850 mm
- Measurements depth: 950 mm
- Measurements height: 1700 mm
- Machine weight: 590 kg
Control Unit
- Brand: DELTA
Main drive
- Spindle speed range: 2800 1/min
- Main motor power: 3 kW
Workpiece
- Workpiece x: 340 mm
- Workpiece y: 155 mm
Table
- Outer length: 300 mm
- Outer width: 150 mm
Tools
- Max tool diameter: 175 mm
Media
- Main electronic connection: 220 / 380 V / 50 Hz
- Internal cooling: Yes
Additional equipment
- - Grinding wheel
- - Magnetic table
- - Splash guard
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
