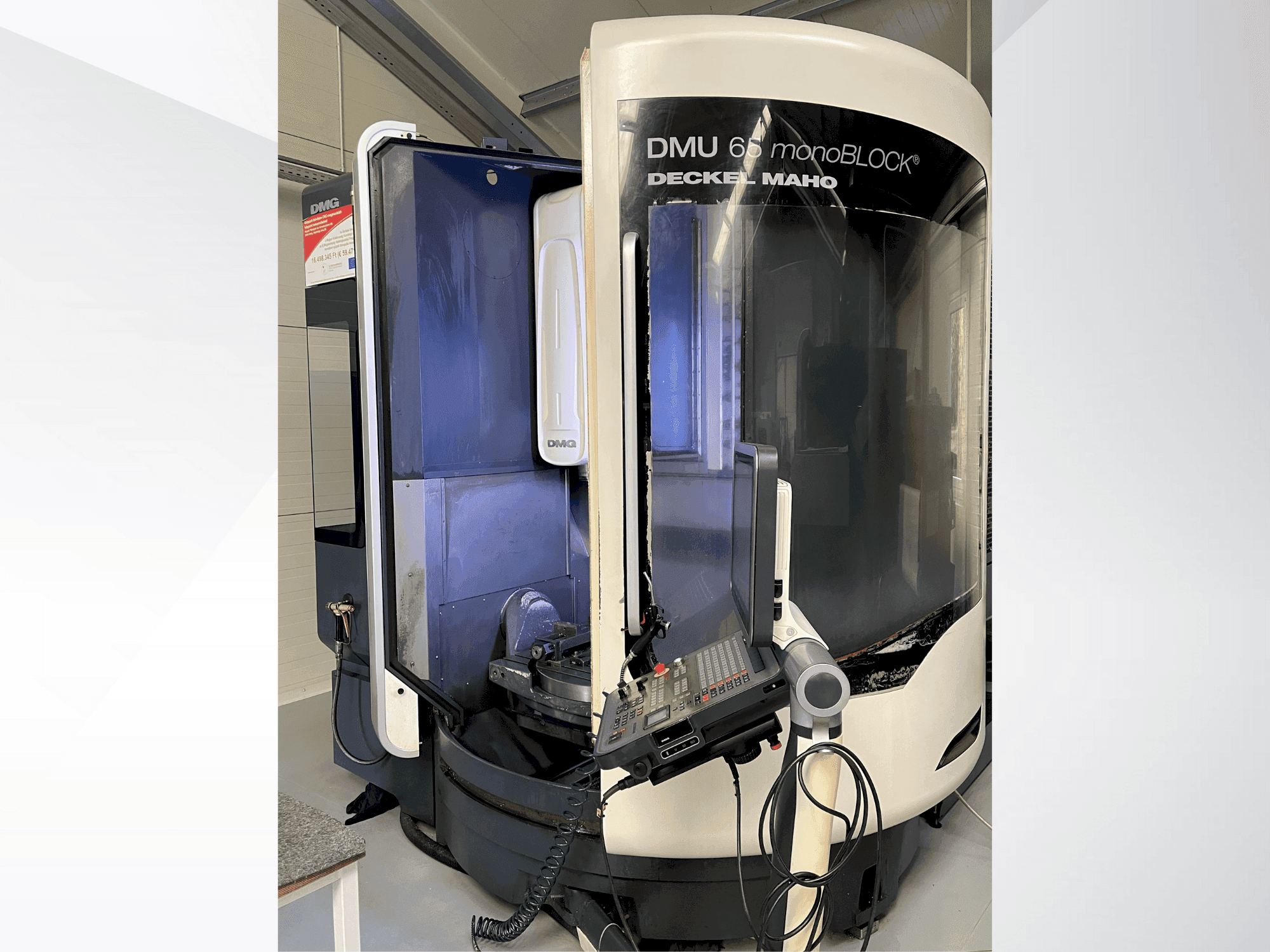

Front view of DECKEL MAHO DMU 65 monoBLOCK machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMU 65 monoBLOCK

Photo Gallery

DECKEL MAHO - DMU 65 monoBLOCKHU-MIL-DEC-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DECKEL MAHO DMU 65 monoBLOCK | Machining Center

Show in original language

This 5-axis DECKEL MAHO DMU 65 monoBLOCK vertical machining center was manufactured in 2011. It features a motor spindle with speeds up to 14,000 rpm, a rigid table measuring 1,000 x 650 mm, and a 3D path control Heidenhain iTNC 530 HSCl. The NC tilting rotary table enhances versatility with a 360° turning range and a ±120° tilt range. If you are looking to get high-quality milling capabilities, consider the DECKEL MAHO DMU 65 monoBLOCK machine we have for sale. Contact us for more information.

Overview

brand: DECKEL MAHO
year: 2011
MODEL: DMU 65 monoBLOCK
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: Heidenhain

Technical Information - DECKEL MAHO DMU 65 monoBLOCK

Control Unit

Brand: Heidenhain
Model: iTNC 530 HSCl

Main drive

Spindle speed range: 14000 1/MIN
Tool taper: SK 40
Number of axis: 5

Movement

X-AXIS Movement: 735 mm
Y-AXIS Movement: 650 mm
Z-AXIS Movement: 560 mm

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 800 mm
Outer width: 650 mm

Tools

Slots in storage: 30

Additional Information

Additional equipment

Infrared Probe: Heidenhain TS 649
3D quickSET: Kinematic analysis and correction for 5-axis machine
Coolant System: 500 litre integrated system with fabric filtration
Spindle Cooling: 20 bar / 17 litres/min through spindle centre

Machine Benefits

Technical Machine Benefits

Table type: nc tilting rotary table integrated in rigid table
Turning range: 360°
Tilt range a-axis: +120°/-120°
Tool changing device: double lever gripper

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
