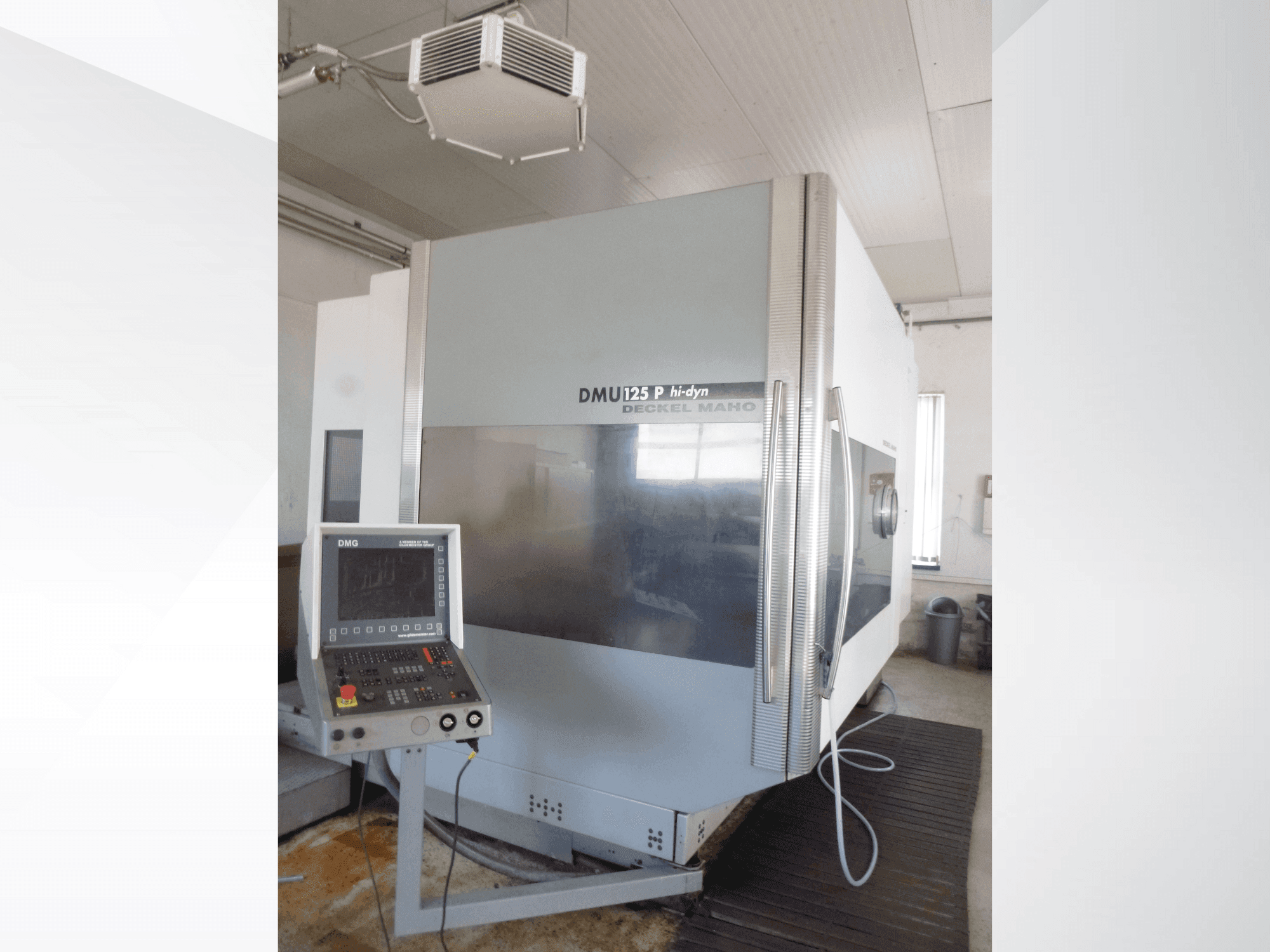

Front view of DECKEL MAHO DMU 125 P hi-dyn machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMU 125 P hi-dyn

Photo Gallery

DECKEL MAHO - DMU 125 P hi-dynDE-MIL-DEC-2001-00008

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DECKEL MAHO DMU 125 P hi-dyn | Universal Center

Show in original language

This 5-axis DECKEL MAHO DMU 125 P hi-dyn was manufactured in 2001. It features a universal machining center with a large X: 1250mm, Y: 880mm, Z: 800mm, and an NC rotary table sized 1250mm x 1000mm, supporting up to 2000kg. Equipped with a SK40 tool holder and a 30-position magazine, it also includes a coolant tank of 600l and a chip conveyor. For more information about this universal machining center, please reach out to us.

Overview

brand: DECKEL MAHO
year: 2001
MODEL: DMU 125 P hi-dyn
production hours: 17573
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 125 P hi-dyn

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 18.000 rpm 1/MIN
Tool taper: SK40
Number of axis: 5

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 880 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 1250 mm
Outer width: 1000 mm
Table load: 2000 kg

Tools

Slots in storage: 30

Media

Chip conveyor: Yes

Additional equipment

- Infrared measuring probe
- Coolant tank: 600 l
- The scope of delivery does not include any tools or the clamping system.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Large travel ranges for versatile machining operations
- - High capacity tool magazine with 30 positions
- - 15 kw (40% ed); 10 kw (100% ed)
- - 3d contouring control tnc 430
- - Nc run table 1250 x 1000 mm
- - 9 t-slots 18 h7 / 100 mm
- - Controlled b axis sk 40
- - Electronic handwheel
- - Infrared touch probe heidenhain ts 63
- - The machine has a 3+4 operating mode, but can also be programmed simultaneously in 5 axes using design software.
Qualitative Machine Benefits:
- - Robust and precise with infrared measuring probe for high accuracy
- - Efficient chip management with chip conveyor and large coolant tank

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
